- Place of Origin:Guangdong, China
- Brand Name:MUST/OEM
- Model Number:PV3500 Series Inverter
- Input Voltage:220V-240V
- Output Voltage:220V-240V
- Output Current:60A
- Output Frequency:50HZ-60HZ
- Output Type:Single
- Size:488*415*200mm
- Type:DC/AC Inverters
- Weight:50kg-100kg
- Max charging current:100A
- DC voltage:24V/48V
- RS485:yes
- Output wave:pure sine wave
- MPPT efficiency:98%
- Transformer:inbuilt pure cooper transformer
- Battery charge:inside built
- Efficiency:>88%
- Coulor:Silver / green /red
- Battery priority:yes

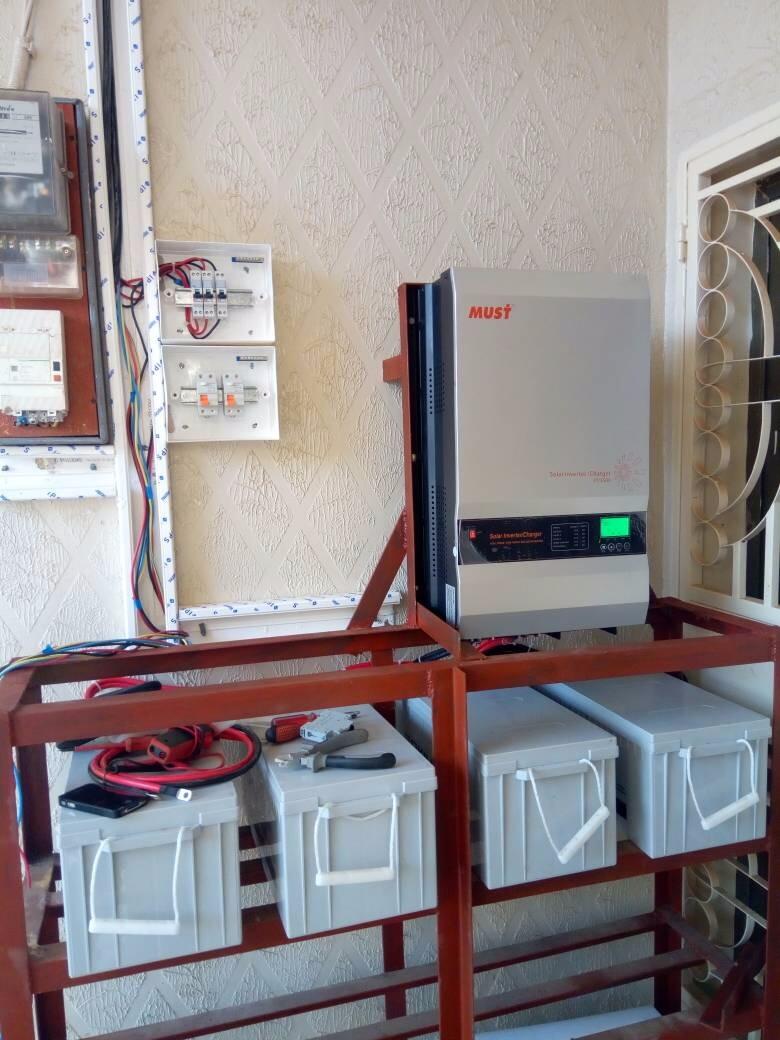

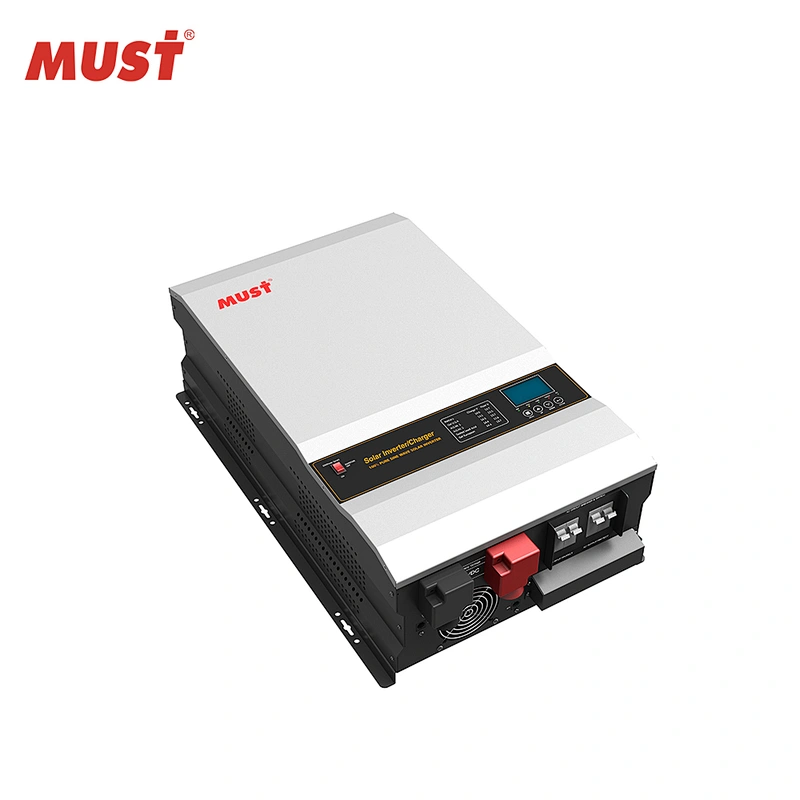

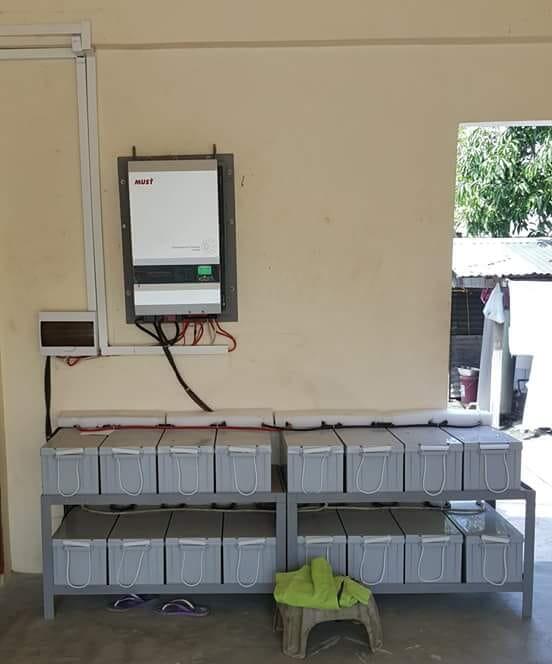

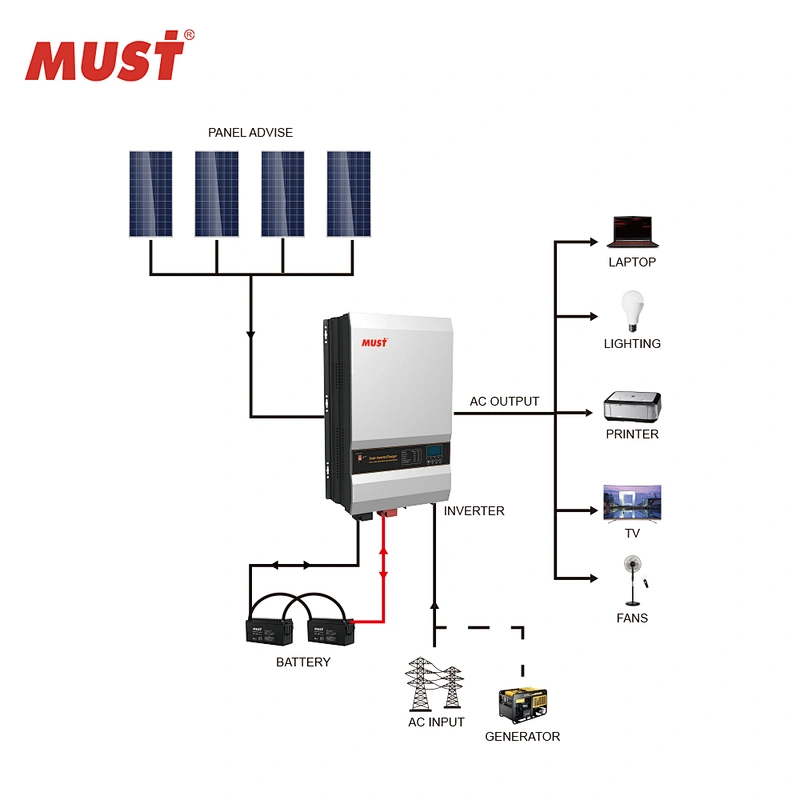

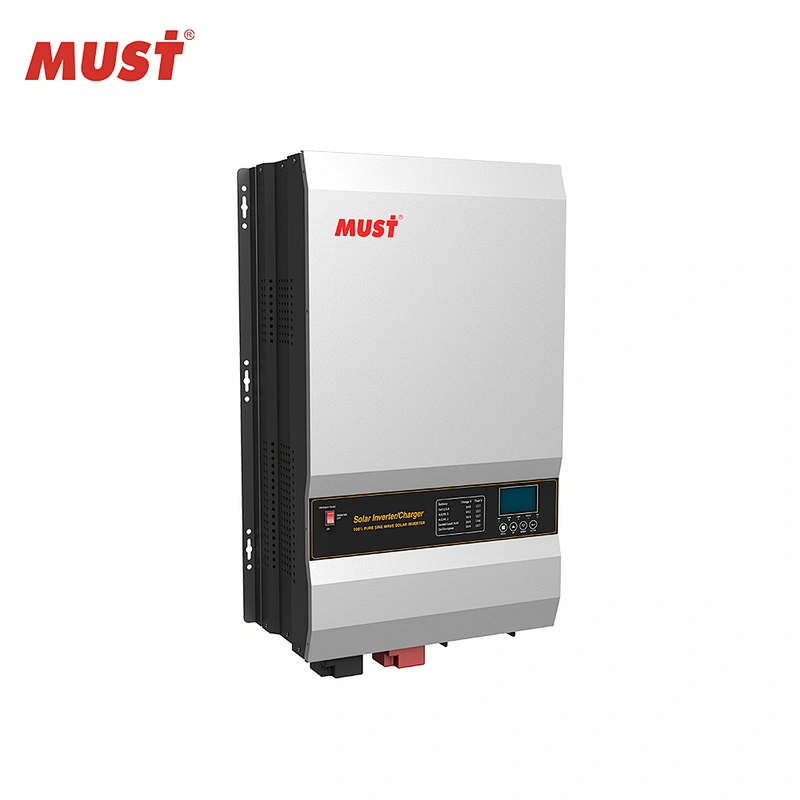

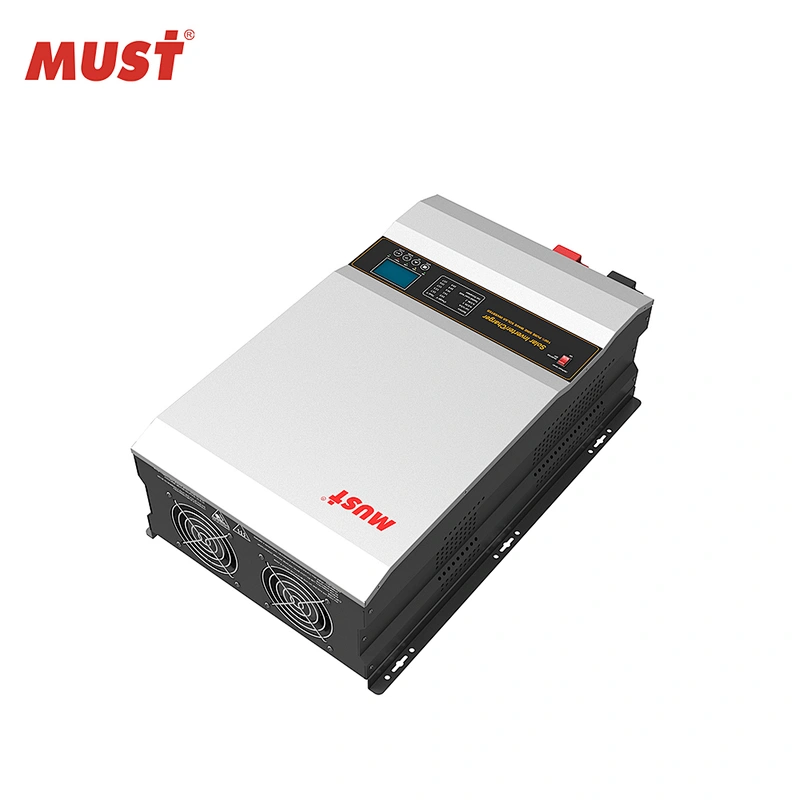

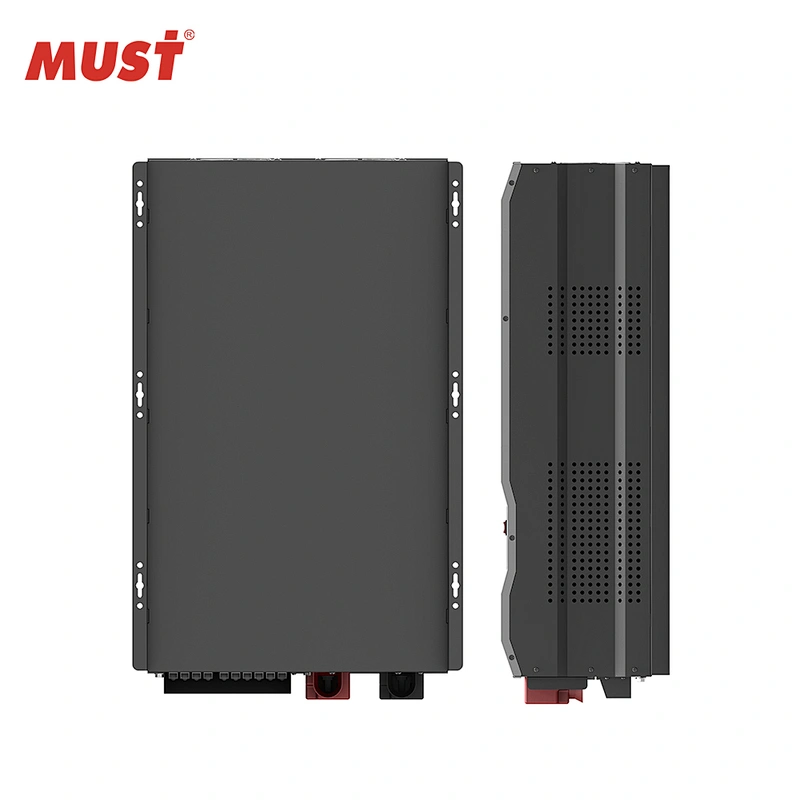

Low frequency 4-12KW pure sine wave off grid solar inverter

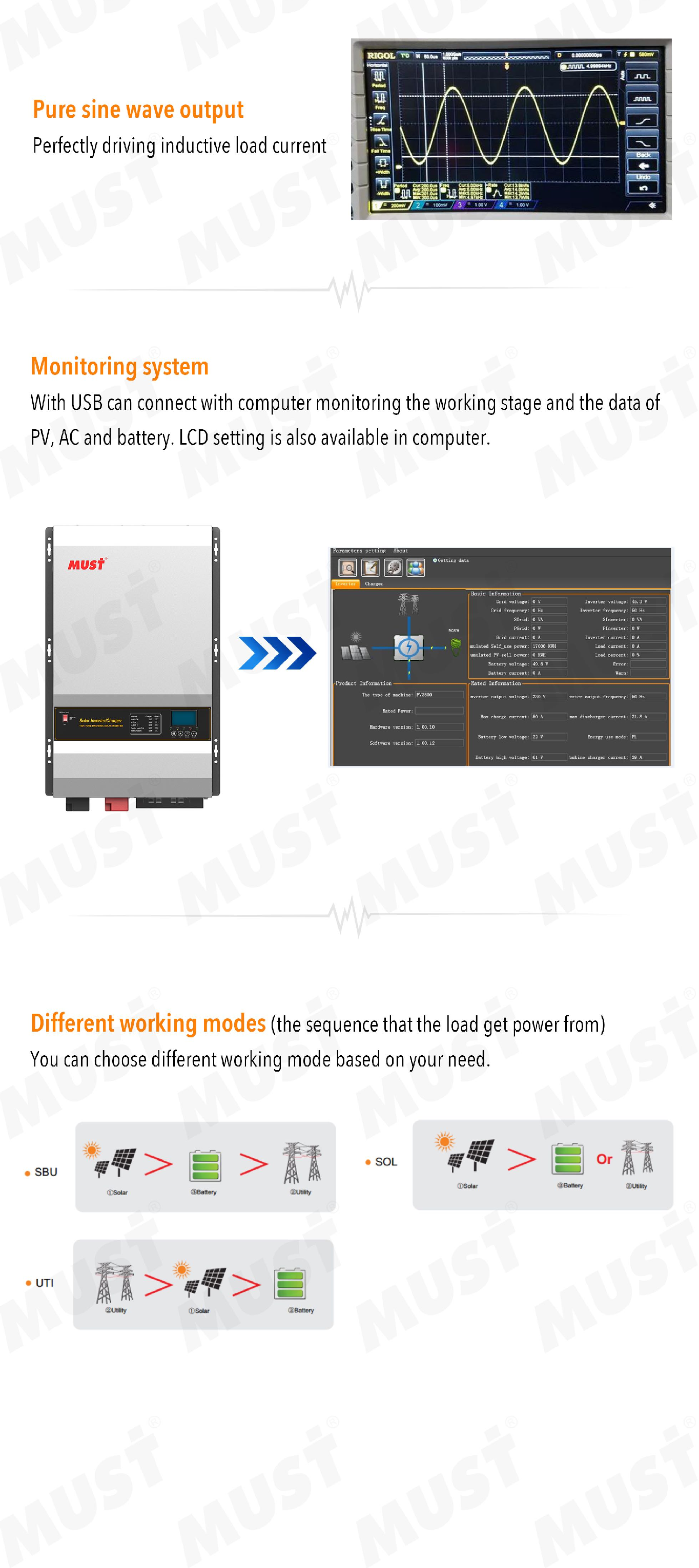

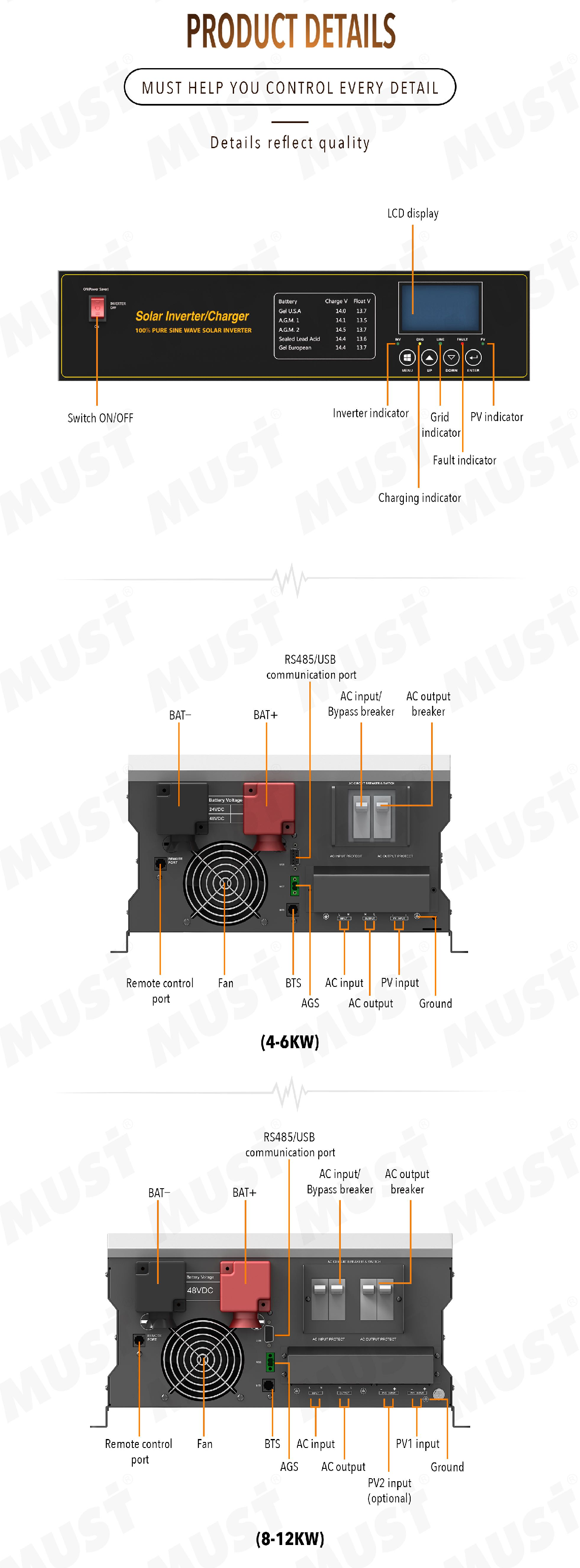

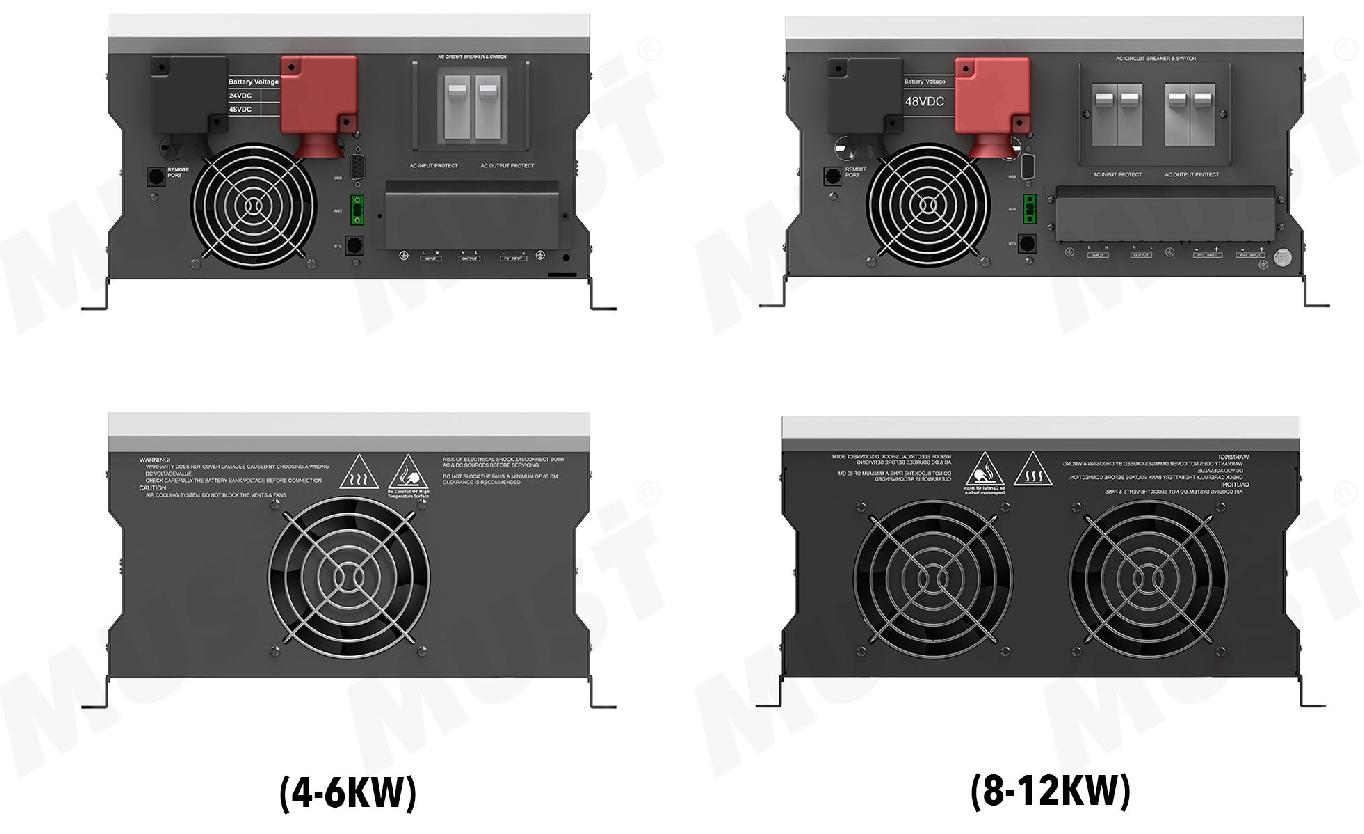

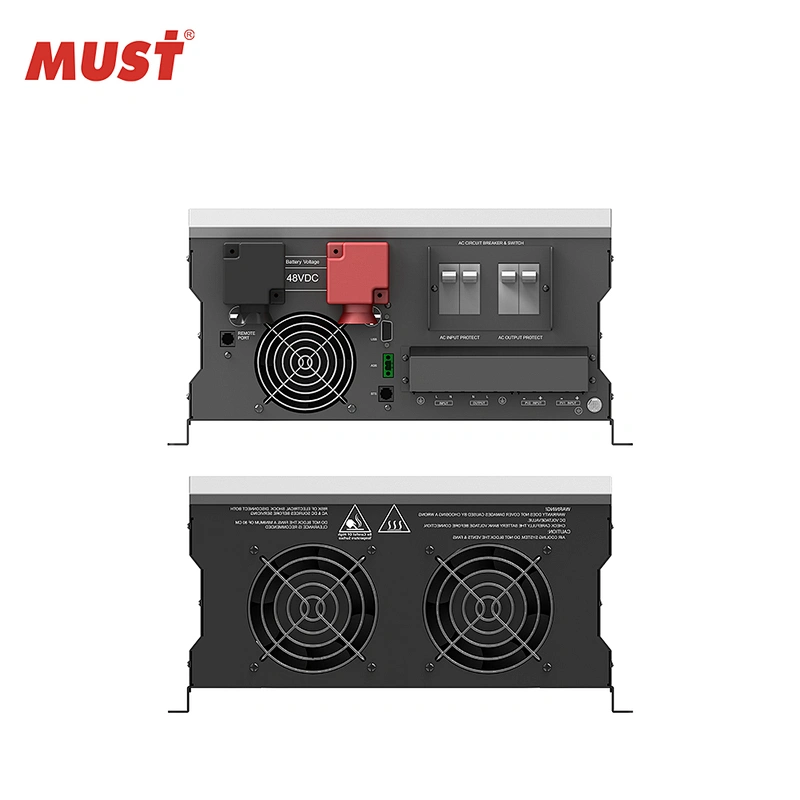

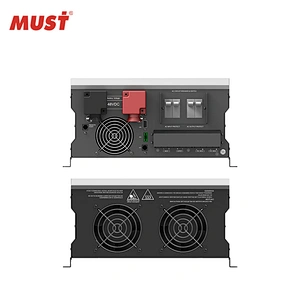

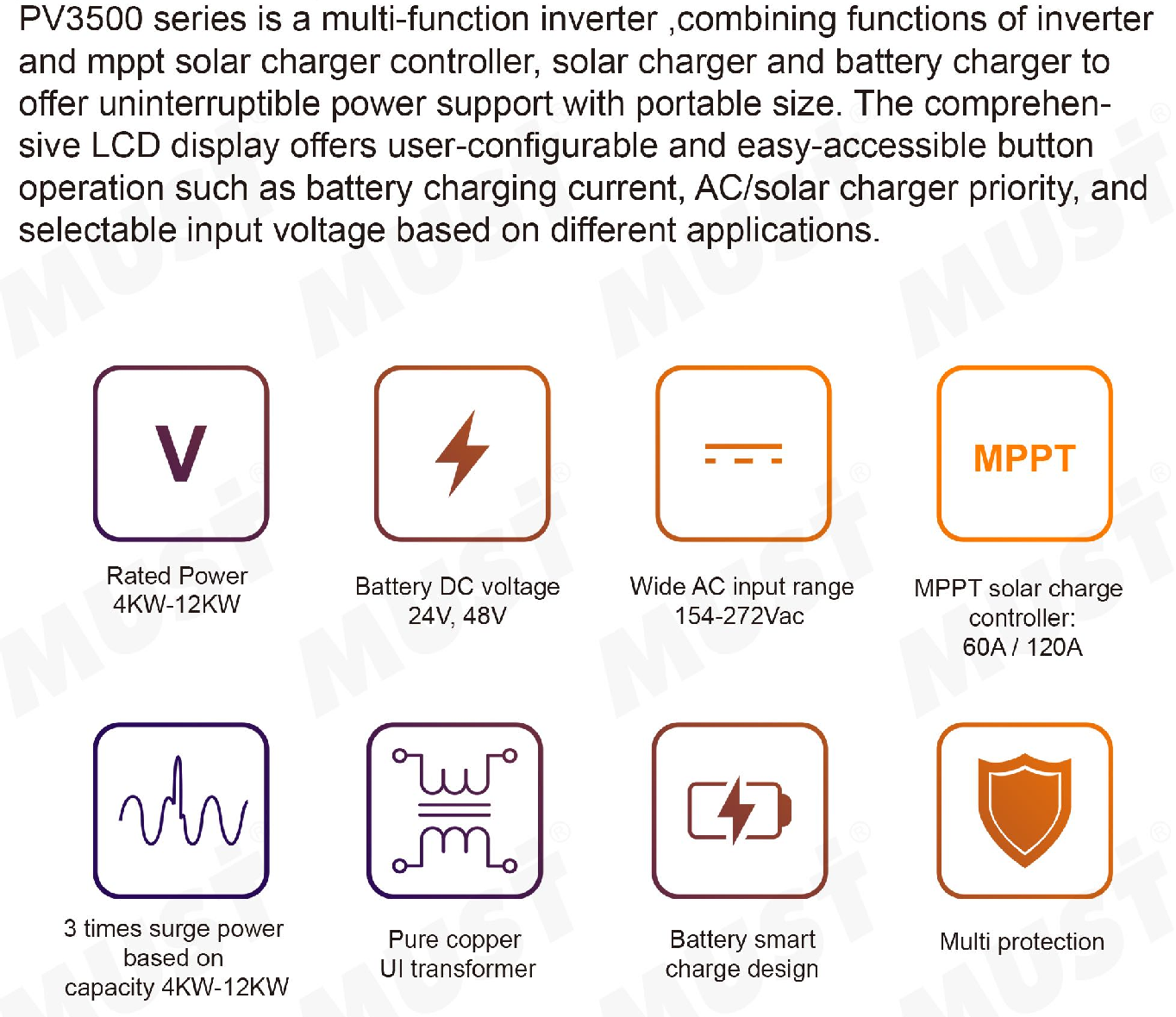

PV 3500 series solar inverter Features:
- Smart LCD setting(Working modes, Charge Current, Charge voltage, etc.)
- Built-in MPPT solar charge controller 60A/120A
- MPPT efficiency max 98%
- Powerful charge rate up to 100Amp
- Built-in pure copper UI transformer
- DC start &Automatic Self-Diagnostic Function
- RS485/USB monitoring function with free CD
- Supporting AGS, BTS port
- Compatible to generator
SPECIFICATION
| MODEL | PV35-4K | PV35-5K | PV35-6K | PV35-8K | PV35-10K | PV35-12K | |
| Nominal Battery System Voltage | 24V | 48V | 48V | 48V | 48VDC | 48VDC | 48VDC |
| INVERTER OUTPUT | |||||||
| Rated Power | 4KW | 5KW | 6KW | 8.0KW | 10.0KW | 12.0KW | |
| Surge Rating (20ms) | 12KW | 15KW | 18KW | 24KW | 30KW | 36KW | |
| Capable Of Starting Electric Motor | 2HP | 2HP | 3HP | 4HP | 5HP | 6HP | |
| Waveform | Pure sine wave/ same as input (bypass mode) | ||||||
| Nominal Output Voltage RMS | 220V/230V/240VAC(+/-10% RMS) | ||||||
| Output Frequency | 50Hz/60Hz +/-0.3 Hz | ||||||
| Inverter Efficiency(Peak) | >85% | >88% | |||||
| Line Mode Efficiency | >95% | ||||||
| Power Factor | 0.8 | ||||||
| Typical Transfer Time | 10ms(max) | ||||||
| AC INPUT | |||||||
| Voltage | 230VAC | ||||||
| Selectable Voltage Range | 154~272VAC(For Personal Computers) | ||||||
| Frequency Range | 50Hz/60Hz (Auto sensing) | ||||||
| BATTERY | |||||||
| Minimum Start Voltage | 20.0VDC/21.0VDC for24VDC mode (40.0VDC/42.0VDC for 48VDC mode) | ||||||
| Low Battery Alarm | 21.0VDC+/-0.3V for 24VDC mode (42.0VDC+/-0.6V for 48VDC mode) | ||||||
| Low Battery Cutoff | 20.0VDC+/-0.3V for 24VDC mode (40.0VDC+/-0.6V for 48VDC mode) | ||||||
| High Voltage Alarm | 32.0VDC+/-0.3V for 24VDC mode (64.0VDC+/-0.6V for 48VDC mode) | ||||||
| High Battery Voltage Recover | 31.0VDC+/-0.3V for 24VDC mode (62.0VDC+/-0.6V for 48VDC mode) | ||||||
| Idle Consumption-Search Mode | <25W when power saver on | <25W when power saver on | |||||
| AC CHARGER | |||||||
| Output Voltage | Depends on battery type | ||||||
| Charger AC Input Breaker Rating | 40A | 40A | 50A | 80A | 80A | 80A | |
| Overcharge Protection S.D. | 31.4VDC for 24VDC mode (62.8VDC for 48VDC mode ) | ||||||
| Maximum Charge Current | 65A | 40A | 50A | 60A | 70A | 80A | 100A |
| BTS | |||||||
| Continuous Output Power | Yes Variances in charging voltage & S.D. voltage base on the battery temperature | ||||||
| BYPASS & PROTECTION | |||||||
| Input Voltage Waveform | Sine wave (grid or generator) | ||||||
| Nominal Input Frequency | 50Hz or 60Hz | ||||||
| Overload Protection (SMPS Load) | Circuit breaker | ||||||
| Output Short Circuit Protection | Circuit breaker | ||||||
| Bypass Breaker Rating | 40A | 63A | 63A | 63A | |||
| Max Bypass Current | 40Amp | 80Amp | |||||
| SOLAR CHARGER | |||||||
| Maximum PV Charge Current | 60A | 60A(120A optional) | |||||
| DC Voltage | 24V/48V Auto work | 48V | |||||
| Maximum PV Array Power | 1600W | 3200W | 3200W | 3200W | 3200W(6400W for 120A optional) | ||
| MPPT Range @ Operating Voltage(VDC) | 32-145VDC for 24V mode,64-147V for 48V mode | 64~147VDC | |||||
| Maximum PV Array Open Circuit Voltage | 147VDC | ||||||
| Maximum Efficiency | >98% | ||||||
| Standby Power Consumption | <2W | ||||||
| MECHANICAL SPECIFICATIONS | |||||||
| Mounting | Wall mount | ||||||
| Dimensions (W*H*D) | 620*385*215mm | 670*410*215mm | |||||
| Net Weight (Solar CHG) kg | 36 | 41 | 41 | 69+2.5 | 75.75+2.5 | 75.75+2.5 | |
| Shipping Dimensions(W*H*D) | 755*515*455mm | 884*618*443mm | |||||
| Shipping Weight (Solar CHG) kg | 56 | 61 | 64 | 89+2.5 | 95.5+2.5 | 95.5+2.5 | |
| OTHER | |||||||
| Operation Temperature Range | 0°C to 40°C | ||||||
| Storage Temperature | -15°C to 60°C | ||||||
| Audible Noise | 60dB MAX | ||||||
| Display | LED+LCD | ||||||
| Loading(20GP/40GP/40HQ) | 140pcs / 280pcs / 320pcs | ||||||
Detailed Description:
MUST Factory :
About MUST :
Must Power Limited devotes itself to power field since 1998, and has its own factory in 2008. Now it has about 300 regulor employees, including 40 engineers in R&D Department, 3 engineers in After-sales Service Center Department, 40 internation sales. MUST products are slod in 98 countries all over the world till now, and the revenue growth is from 2.86 milion US Dollars in 1998 to 130 milion US Dollars in 2017.
we have rich experience in handiling orders for heavy buyers with professional process.
- Stable raw material purchasing
- Favorable orders follow-up management
- Laudable lead-time & shipment control
- Traceable quality evaluation
- Flexible payment terms
- Remarkable after-sale service

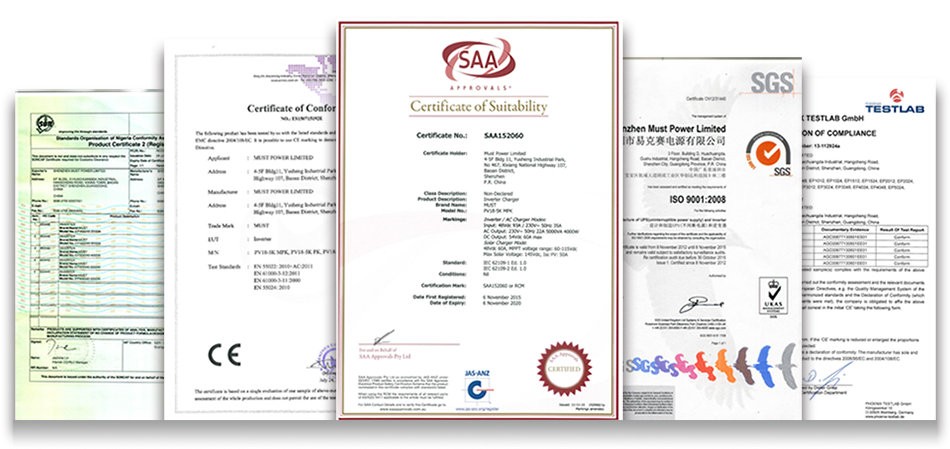

MUST certificates and patents: MUST got the National High-tech Enterprise in 2016, and Shenzhen High-tech Enterprise, the ISO9001, CE, SAA, CONCAP, etc. And also MUST has software and hardware patents.
