MUST PH1800 PLUS series 2KW 3KW 4KW 5KW 5.5KW Hybrid Solar Inverter On/Off Solar System Solar Grid Tie Inverter

MUST PH1800 PLUS series 2KW 3KW 4KW 5KW 5.5KW Hybrid Solar Inverter On/Off Solar System Solar Grid Tie Inverter

Model NO.: PH1800 Plus Series Hybrid Solar Inverter (2-5.5KW)
Minimum order quantity: 1 piece
Country of Origin: Shenzhen/hongkong/guangzhou

Quantity:

Product Description

Place of Origin:Guangdong, China
Brand Name:MUST/OEM
Model Number:PH1800 Plus Series Hybrid Solar Inverter (2-5.5KW)
Input Voltage:230VAC
Output Voltage:220VAC-240VAC(setting)
Output Current:8.7-23.9A
Output Frequency:50hz/60hz
Output Type:Single
Size:272*355*100mm/297.5*468*125mm
Type:DC/AC Inverters
Inverter Efficiency:85%
Certificate:CE
Warranty:12 months, 12 month
Weight:7.4-14KG
Inverter type:On/Off Grid Hybrid Solar Inverter
Protection Function:Short circuit, overload, over charge protection, etc
Waveform:Pure sine wave
Capacity:2-5.5KW
Max Charging Current:140A
Solar energy priority/Optional:YES

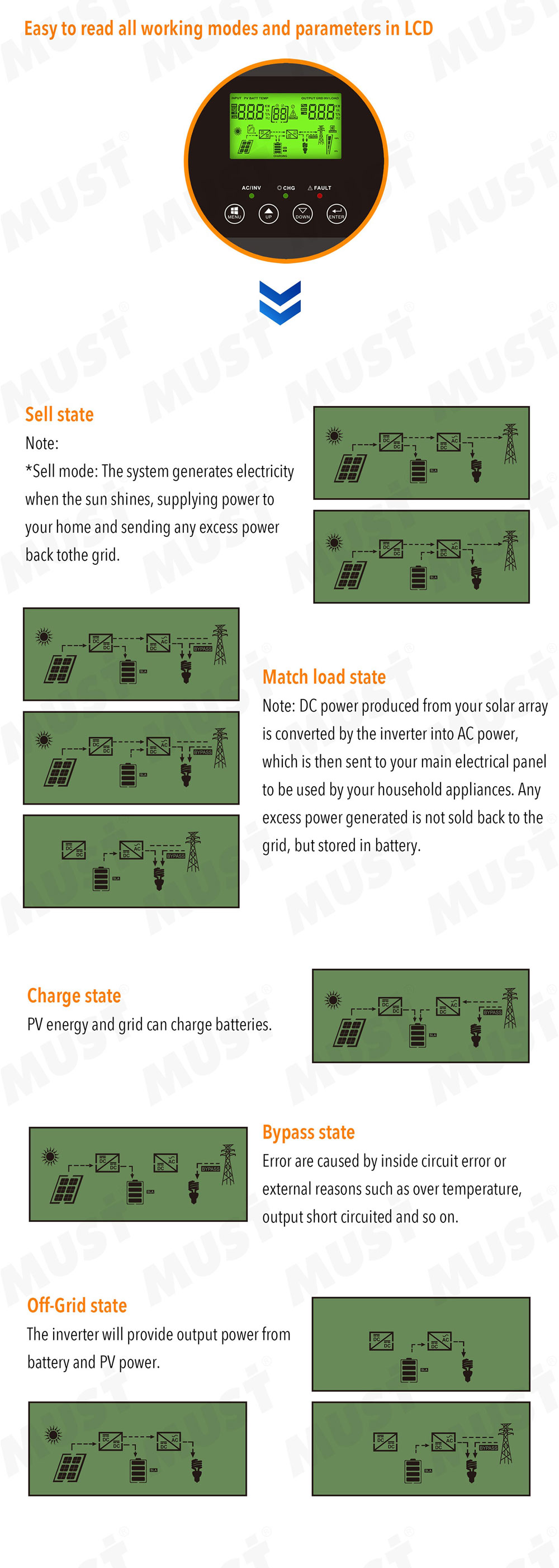

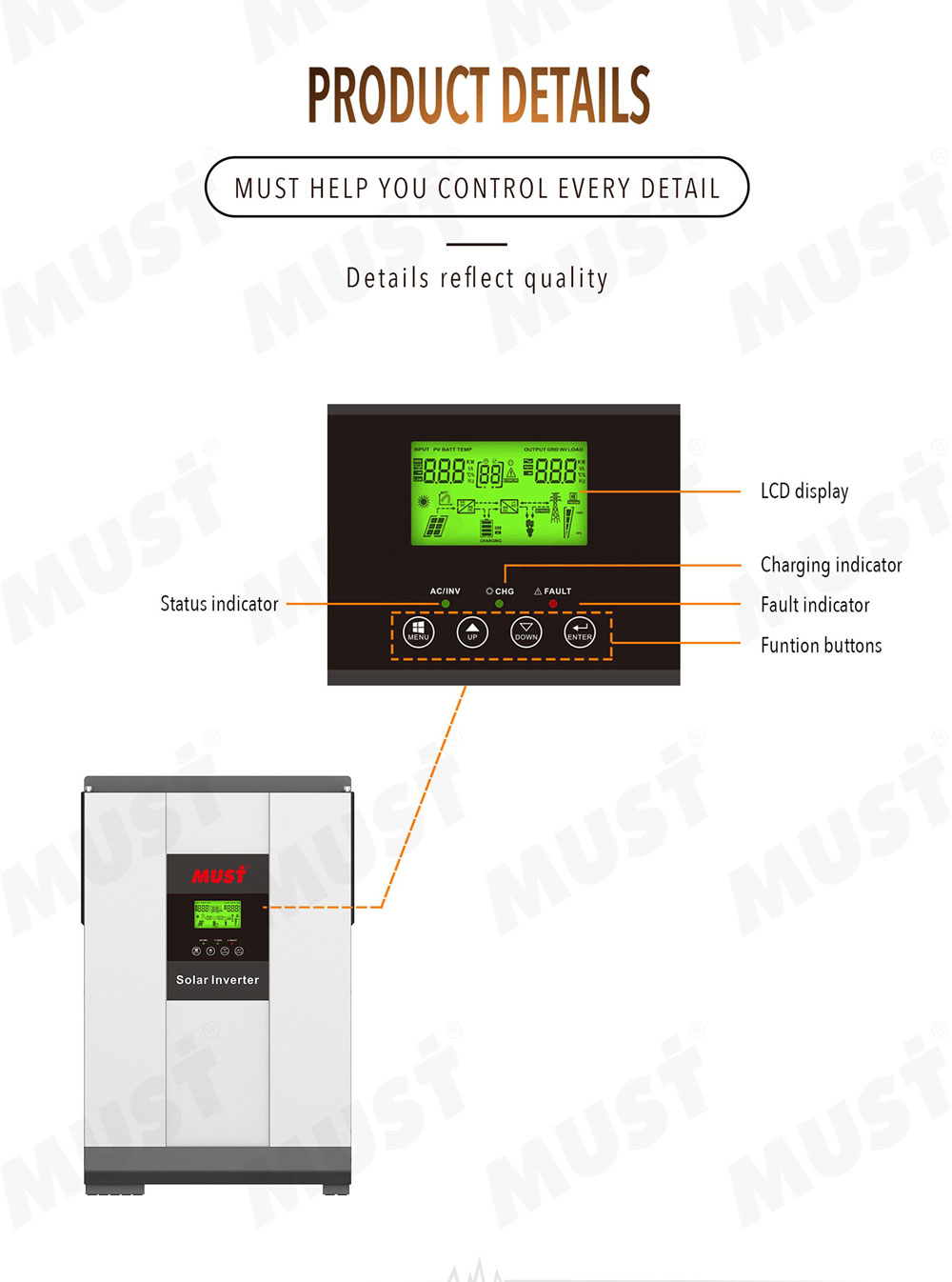

Working Status display:LCD
Safety certificates:CE&ISO9001

Product Description

Whats MPPT solar inverter?

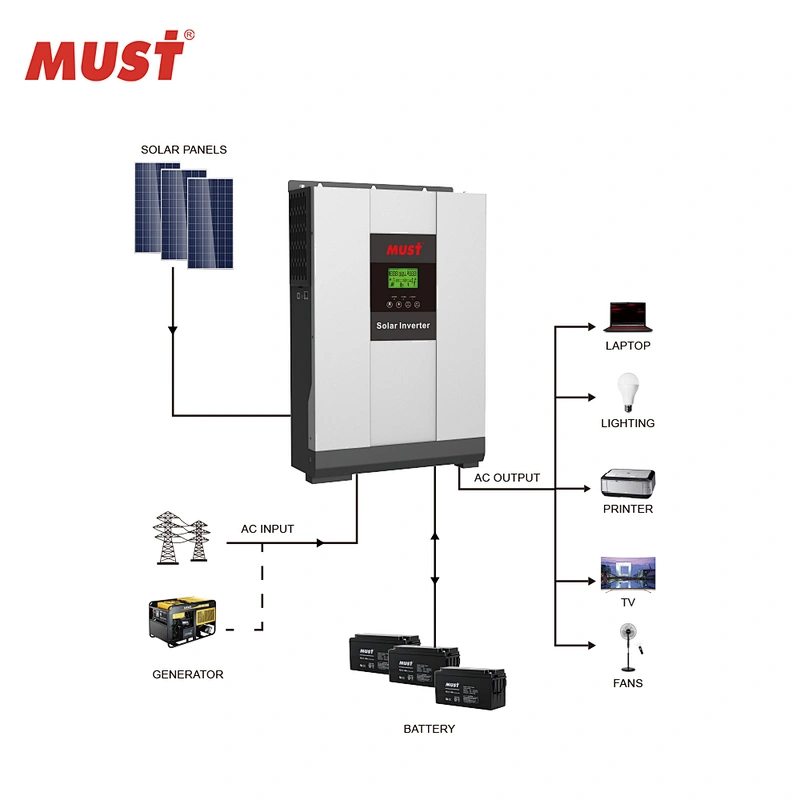

This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power s

upport with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery

charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

MUST POWER LIMITED EXHIBITION-WELCOME TO JOIN US:

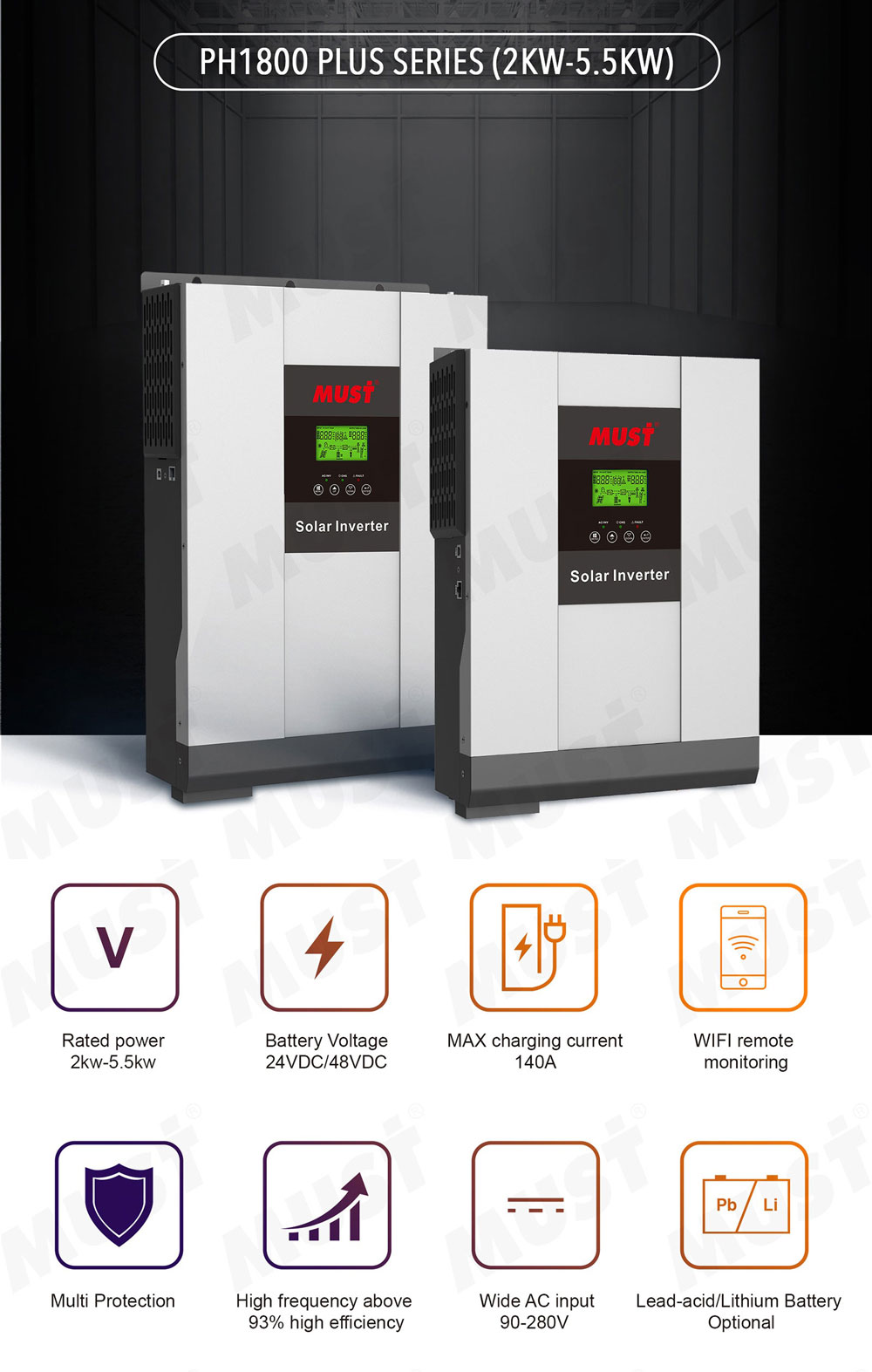

Whats Features of PH1800 PLUS series MPPT solar inverter?power supply

Rated Power 2KW-5.5KW

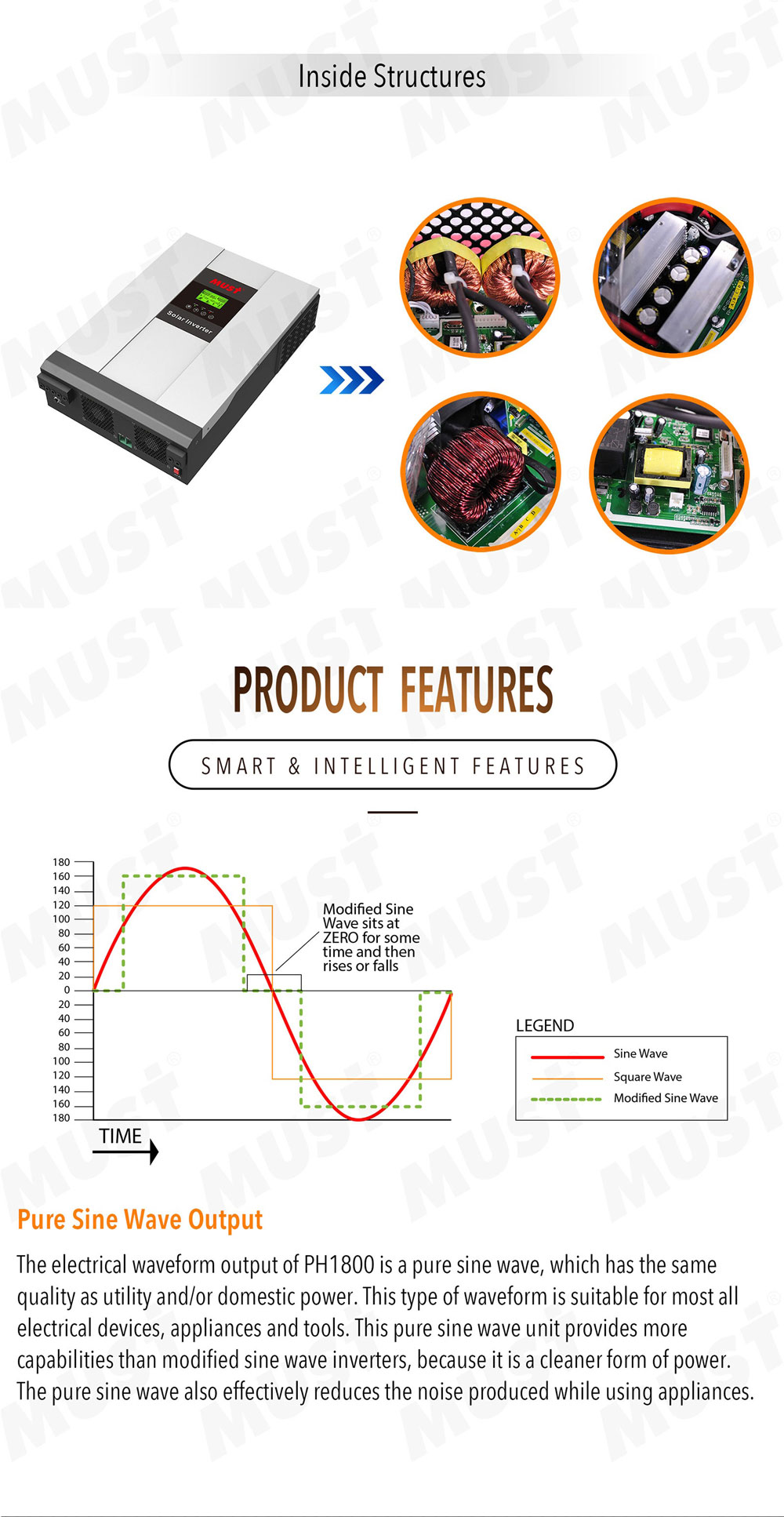

Pure sine wave output
Self-consumption and Feed-in to the grid
Programmable supply priority for PV, Battery or Grid
User-adjustable battery charging current suits different types of batteries
Programmable multiple operation modes: Grid-tie, off-grid and grid-tie with backup

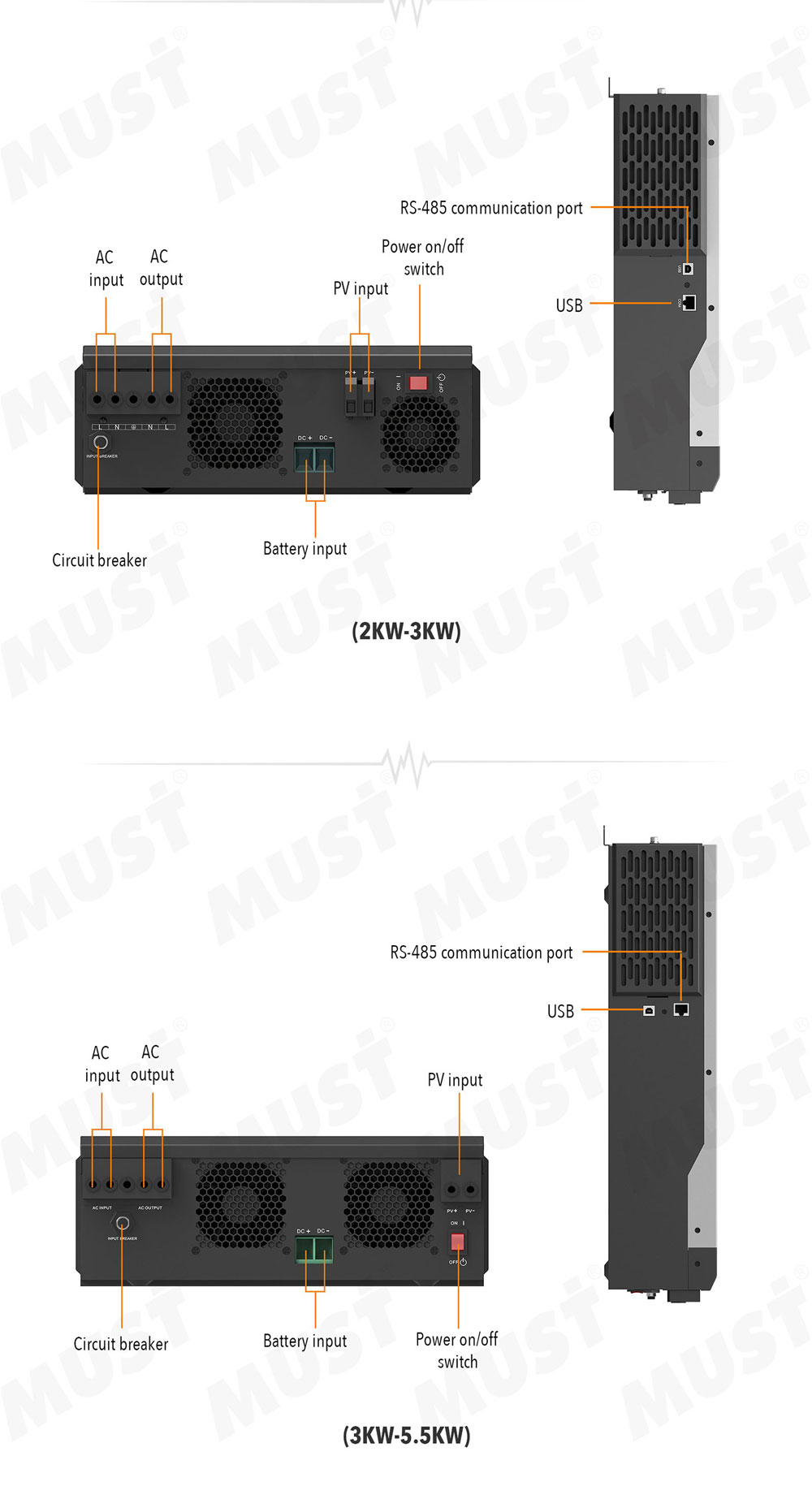

Multiple communication for USB, RS-485, Modbus

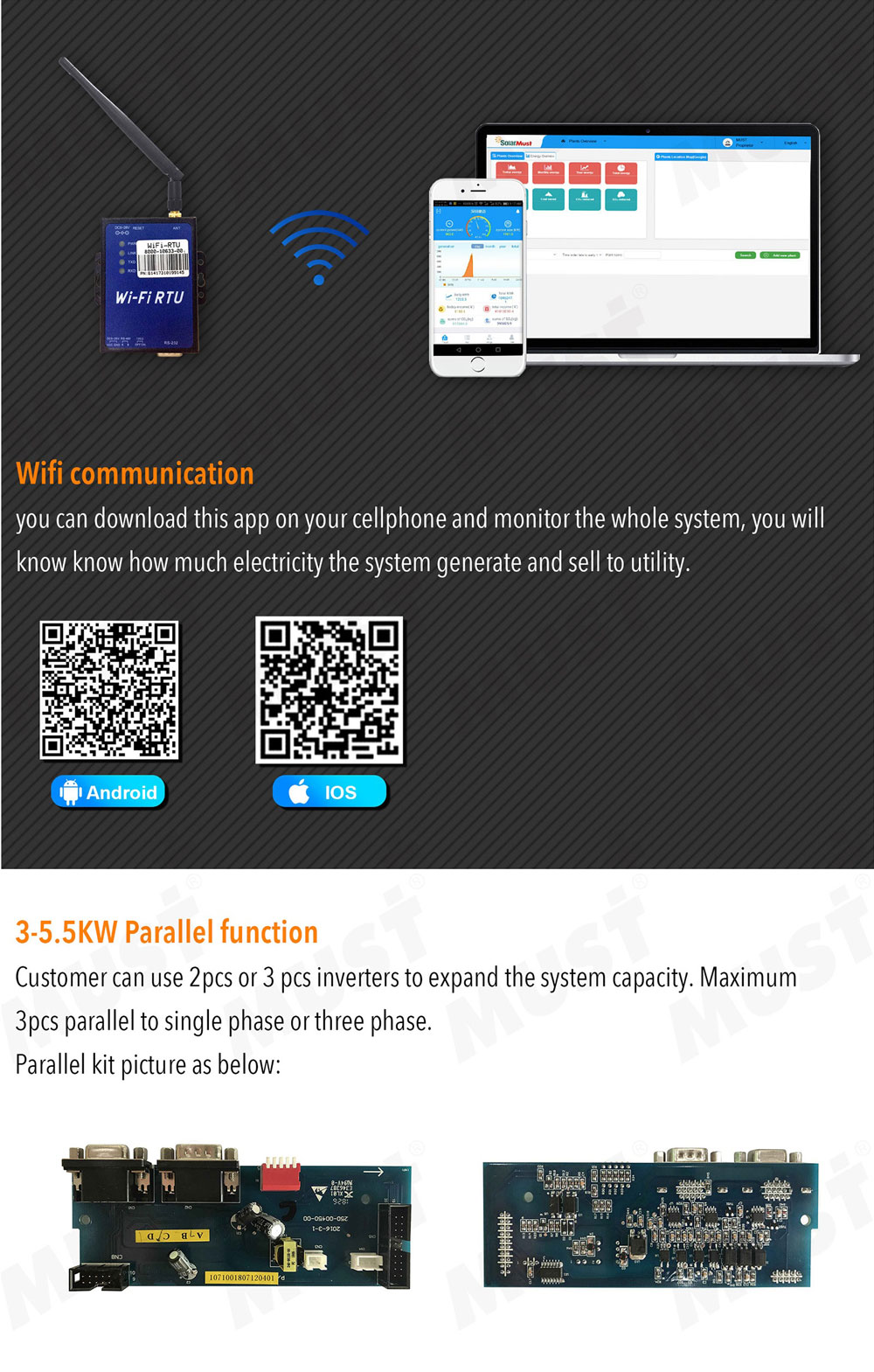

Monitoring software & Wifi Kit for real-time status display and control
Parallel operation up to 3 units

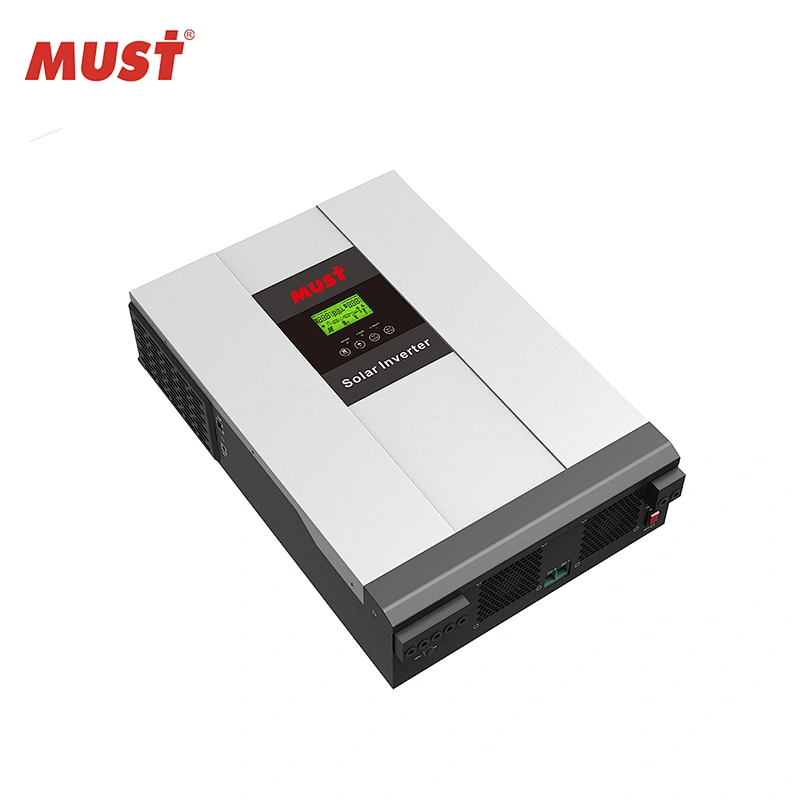

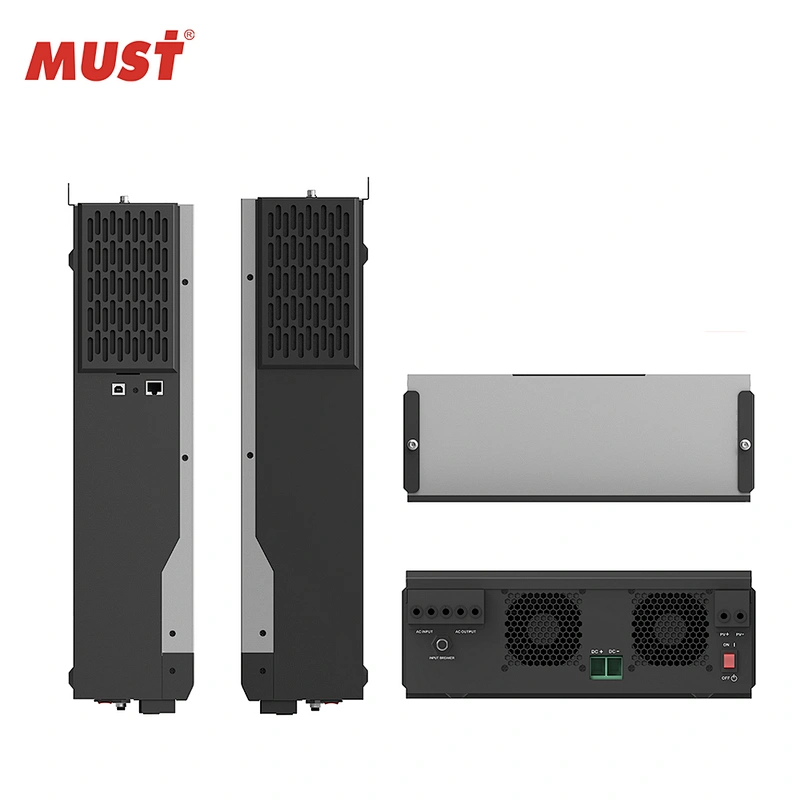

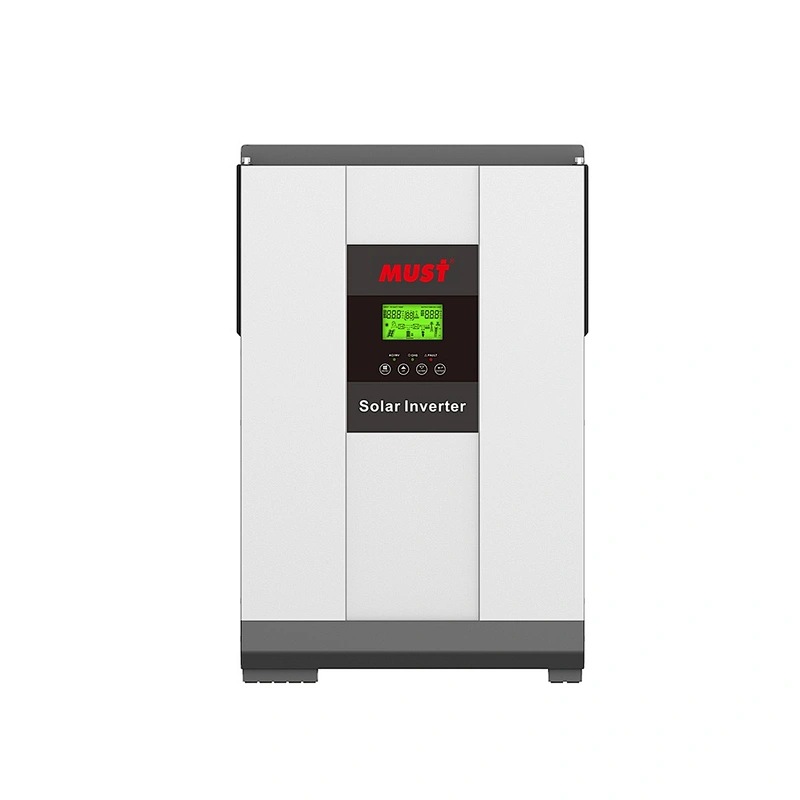

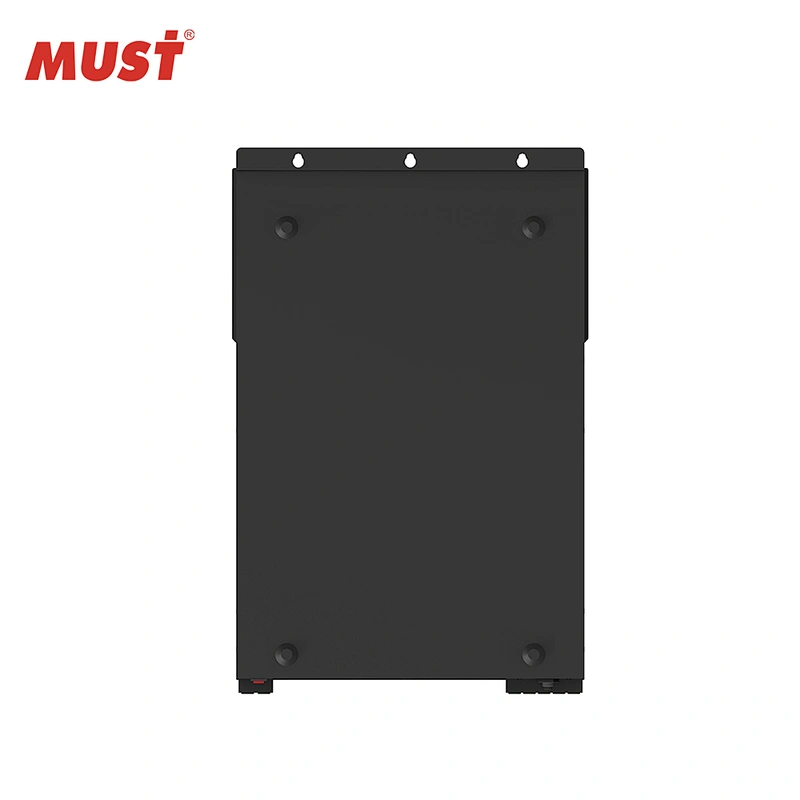

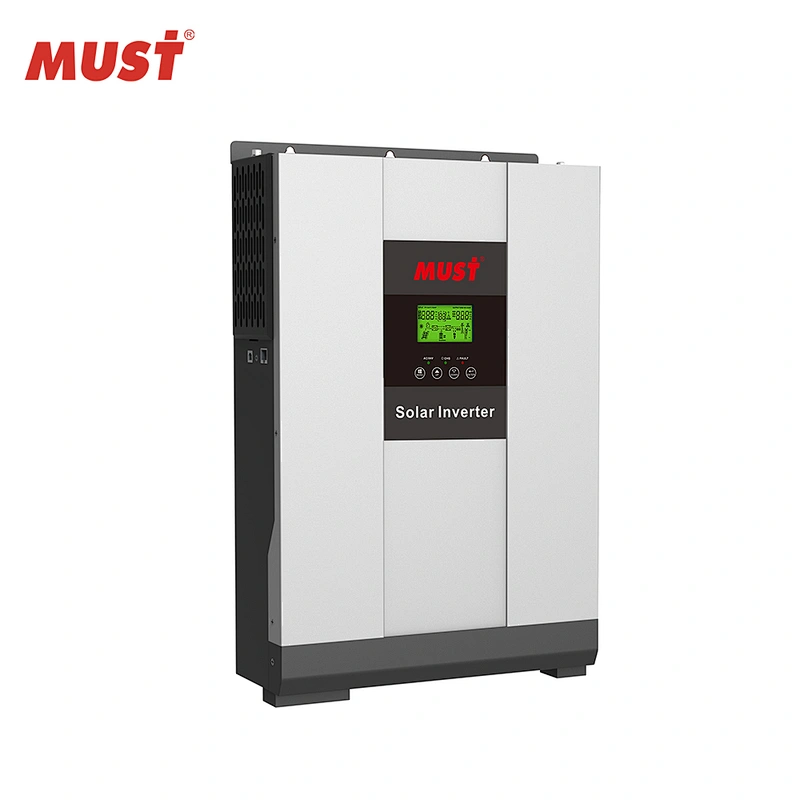

More Pics

PH1800 Plus Series High Frequency On/Off Grid Hybrid Solar Inverter (2-5.5KW)

Must Power Limited

Headquarter & Factory Location	In HongKong & Shenzhen,Guangdong China Mainland
Industry Experience	21-Year Manufacturer, 12-Year Trading, 5-Year Alibaba Gloden Supplier
Product Range	Inverter,Solar Inverter, Off-grid Inverter Grid-tie Solar Inverter, MPPT Solar Charge Controller, Solar Panel, Solar Battery, Solar System
Main Market	Africa, Middle East & Asia ( Ukraine, Russia, Vietnam, Pakistan, Nigeria, Kenya, South Africa, Ghana,etc.)
Factory	8000 Square Meters, 200 workers
Department	7-team Marketing Dept, 2-team R&D, 1 Manufacturing Center, QA Office, After-sale Service Dept.
Certificate	ISO9001:2008, CE, IEC,SAA, SGS, Soncap,etc
Patent	Software Patent, Design Patent, Project Patent

What is the specification of 12v/24v/48vdc solar power inverter ?

Specification

MODEL	PH18-2024 Plus	PH18-3024 Plus	PH18-3048 Plus	PH18-4048 Plus	PH18-5048 Plus	PH18-5548 Plus
Nominal Battery System Voltage	24VDC		48VDC
INVERTER OUTPUT
Rated Power	2000W	3000W	3000W	4000W	5000W	5500W
Surge Power	4000W	6000W	6000W	8000W	10000W	11000W
Waveform	Pure Sine Wave
AC Voltage Regulation (Batt.Mode)	220VAC-240VAC(setting)
Electric Current	8.7A	13A		17.4A	21.7A	23.9A
Inverter Efficiency(Peak)	93%
Transfer Time	10ms(For for Personal Computers) 20ms( For Other Home Appliance)
AC INPUT
Voltage	230VAC
Selectable Voltage Range	170~280VAC(For Personal Computers),90~280VAC(For Home Appliances),184~253VAC(VDE4105)
Frequency Range	50Hz/60Hz (Auto Sensing)
BATTERY
Normal Voltage	24VDC		48VDC
Floating Charge Voltage	27.4VDC		54.8VDC
Overcharge Protection	31VDC		60VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Open Circuit Voltage	145VDC
PV Array MPPT Voltage Range	30-130VDC		64-130VDC
Standby Power Consumption	2W
PV Array MPPT Voltage Range	2000W		4000W
Maximum PV Array	80A
Maximum Efficiency	98%
Maximum AC Charge Current	60A
Maximum Charge Current	140A
MECHANICAL SPECIFICATIONS
Machine Dimensions (WHD)	272355100 mm			297.5468125 mm
Net Weight(Kg)	7.4			14
Package Dimensions(WHD)	485393251			638395241
Gross Weight(Kg)	9.5			16.4
OTHER
Humidity	5% to 95% Relative Humidity (Non-condensing)
Operating Temperature	0°C ~55°C
Storage Temperature	-15°C ~60°C

Packaging & Shipping

1.Package: Carton Box for packaging, or Wooden Box advised for Samples to protect in transportations. Package designed

by Clients is welcomed.

2.Shipping: DHL,FEDEX,UPS,EMS,AirWay and By Sea.

3.Payment: T/T( telegraphic transfer (T/T) and Western Union

4.Welcome to your Sample Order to test First.

Client's OEM Package Welcomed

Shipping of Pure sine wave power inverter: By SEA, By Air-way, By Courier

Our Services

Samples and OEM, Warranty and After-Sale Service:

Welcome Solar Power Inverter Sample Test
OEM Welcomed
Warranty:1 Year
After-Sale Service: 24 Hour-Hot Line for Consultacncy and Technical Support

How To Ask for Support if products failure in warrenty?

1. email us about PI number, serial number,Product S/N number, PCB board number most importantly, is the description of failure products on the condition that it is operated correctly, to the best, show us more detailed pictures or video.

2. we will submit your case to our after sales department.

3.Usually within 24 hours, we will email you the best solutions.

In November, we will open a aftersales office in Pakistan Lahore, then we will open more and more office all over the world.
