- Place of Origin:Guangdong, China
- Brand Name:OEM or MUST
- Model Number:PV3500
- Input Voltage:220V/230V/240V
- Output Voltage:220V/230V/240V
- Output Current:100A/ 200A
- Output Frequency:50Hz/60Hz
- Output Type:Single
- Size:488*415*200mm
- Type:DC/AC Inverters
- Inverter Efficiency:>88%
- Certificate:CE etc.
- Warranty:12 months
- Weight:40-70kgs
- Output waveform:Pure Sine Wave Output
- WIFI or RS485:yes
- USB port:yes
- MPPT charge current:60A or 120A optional
- Rated power:4kw-12kw
- Display:LCD+LED display
- MPPT max efficiency:98%
- Color:Red or Greem or OEM
- Protection:Overload; short circuit
- generator compatible:yes

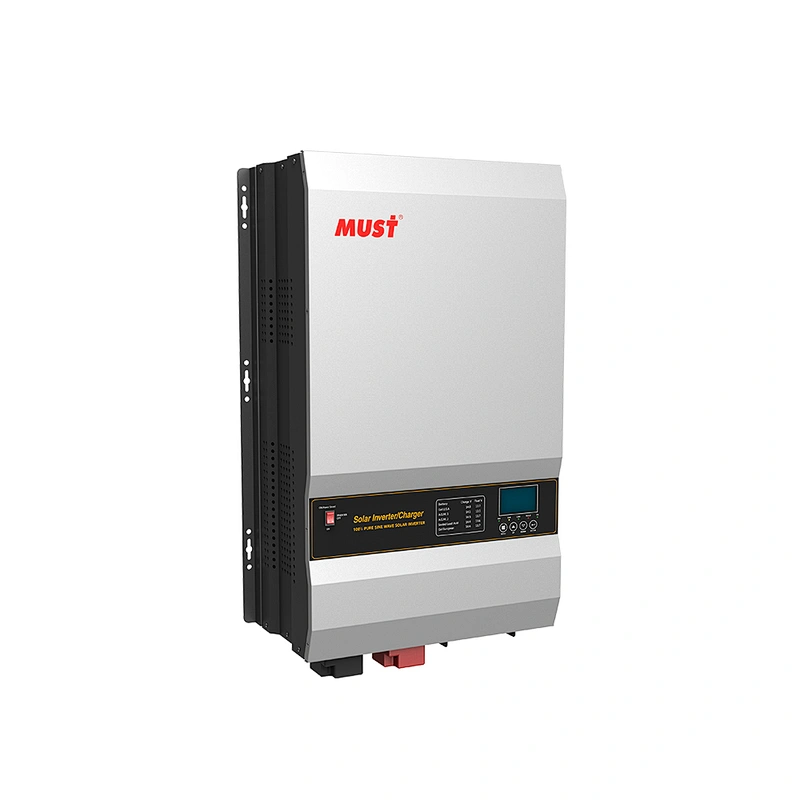

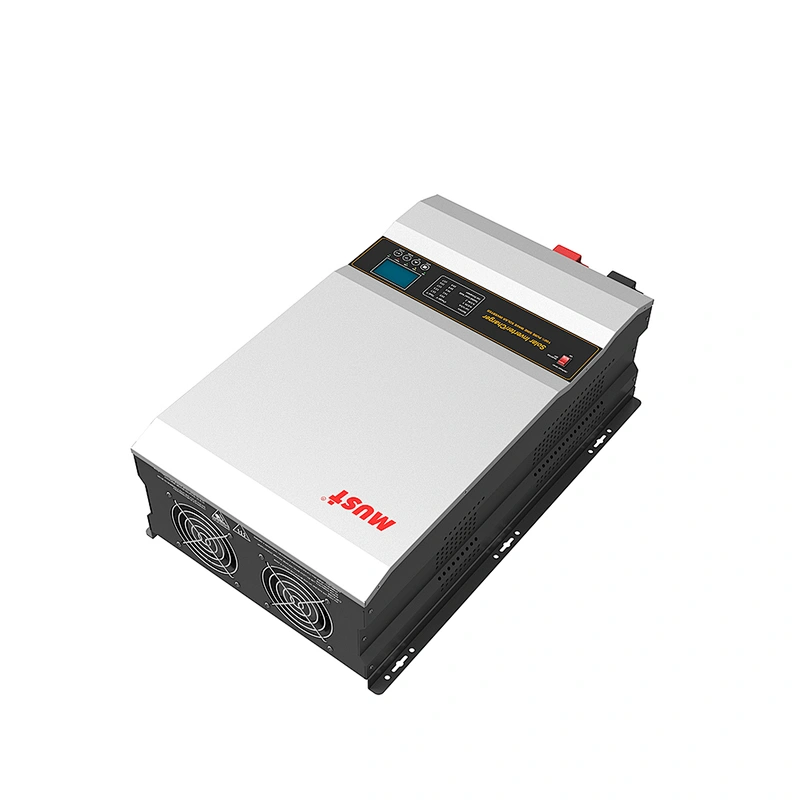

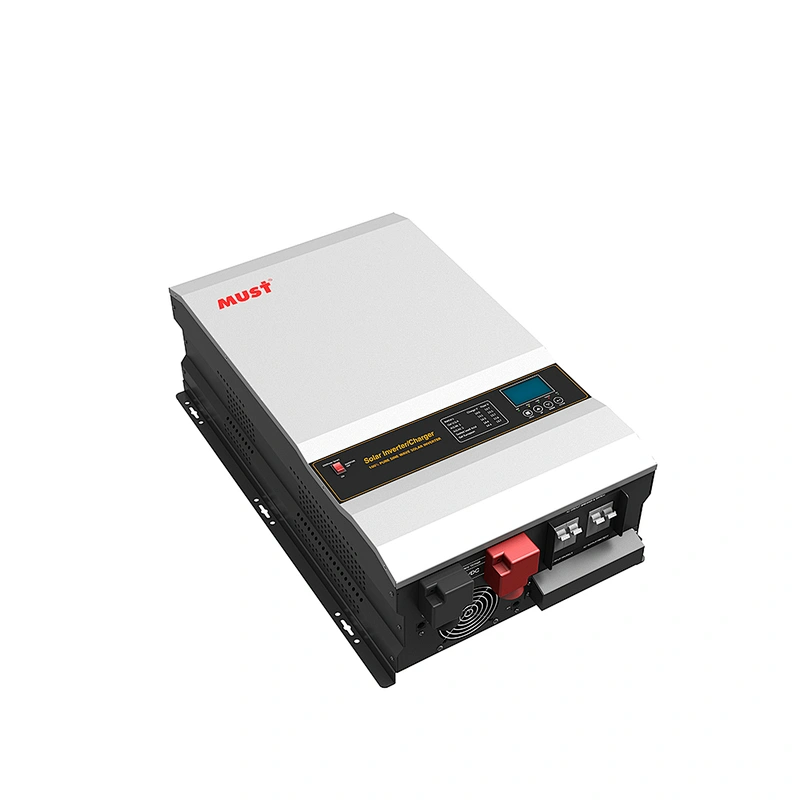

MUST PV3500 series 4kw 6kw 8kw 10kw 12kw MPPT hybrid solar inverter pure sine wave with RS485 USB
Sales engineer: Angel Lee
Phone number/Wechat NO./ WhatsApp: +86 13823339627
Skype: mustupsl
Product introduction: solar system inverter with MPPT charger
1. Advantages:
* with USB and WIFI optional
* Low frequency pure sine wave output
* power range 4kw-12kw
* inbuilt 60A or 120A MPPT solar charge controller
* RS485 with free CD
* 50Hz/ 60Hz auto sensing
* automatically send signal to start generator
* inbuilt pure copper transformer

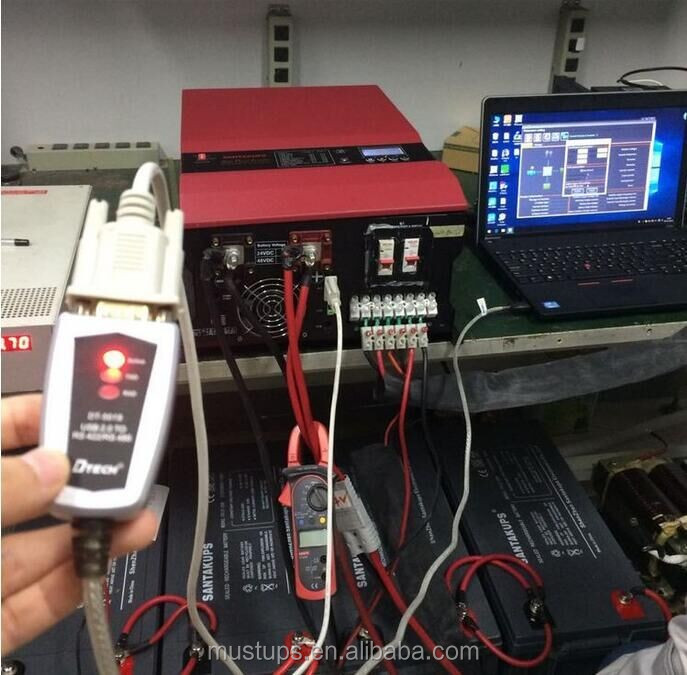

2. with RS485 communication port, or USB optional, so that you can collect all the inverter datas through your computer

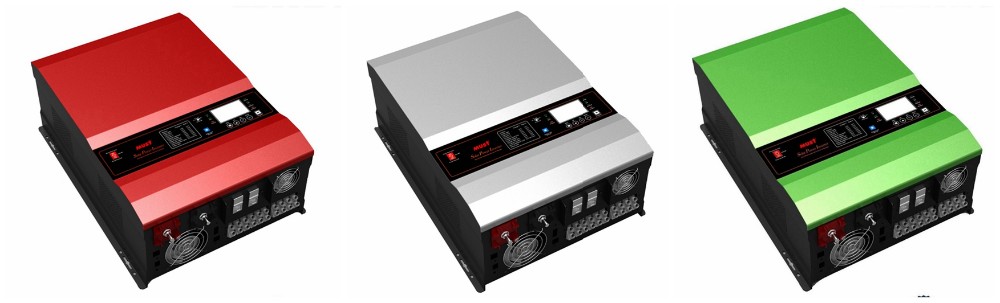

3. Three colors for your choice: Silver, red, and green

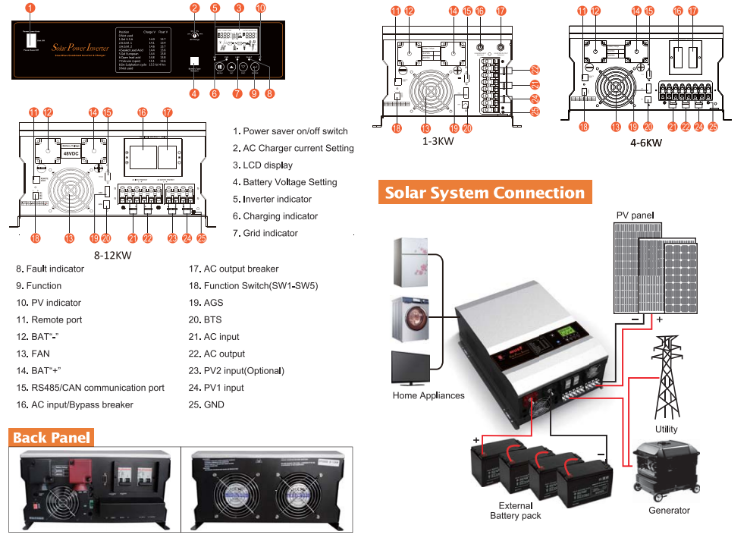

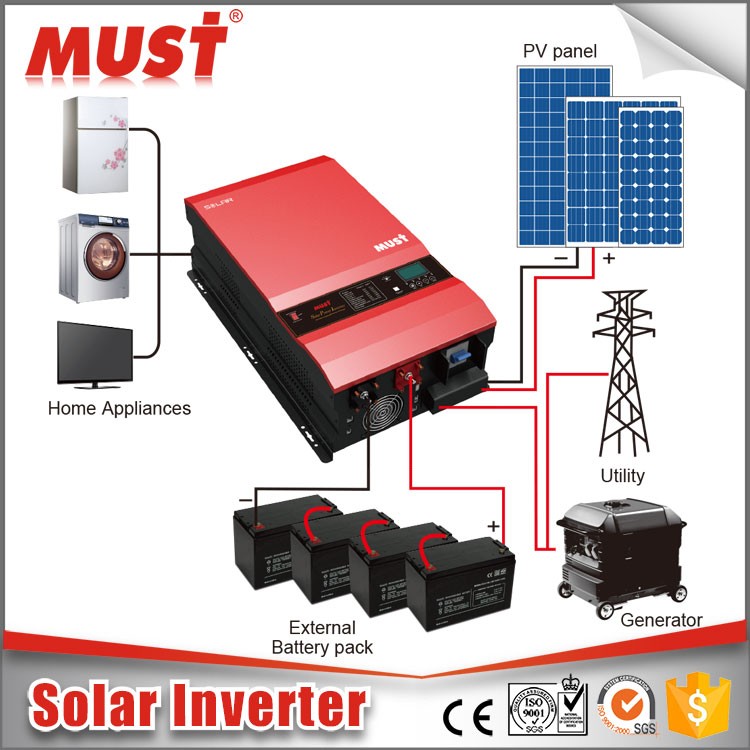

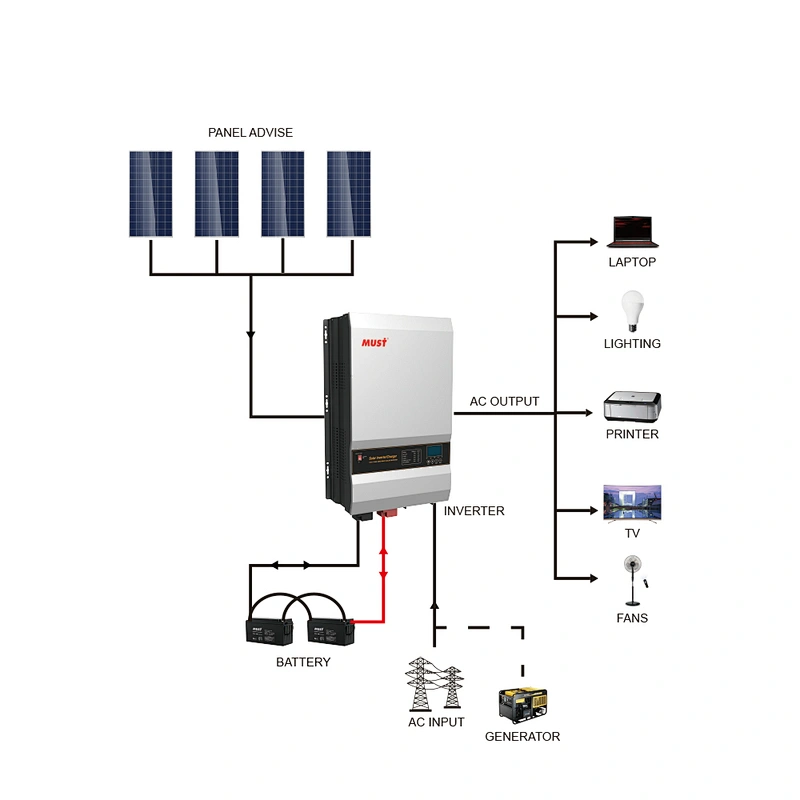

4. Connection& Diagram: Hybrid one, can connect with both PV and utility
5. Details shows

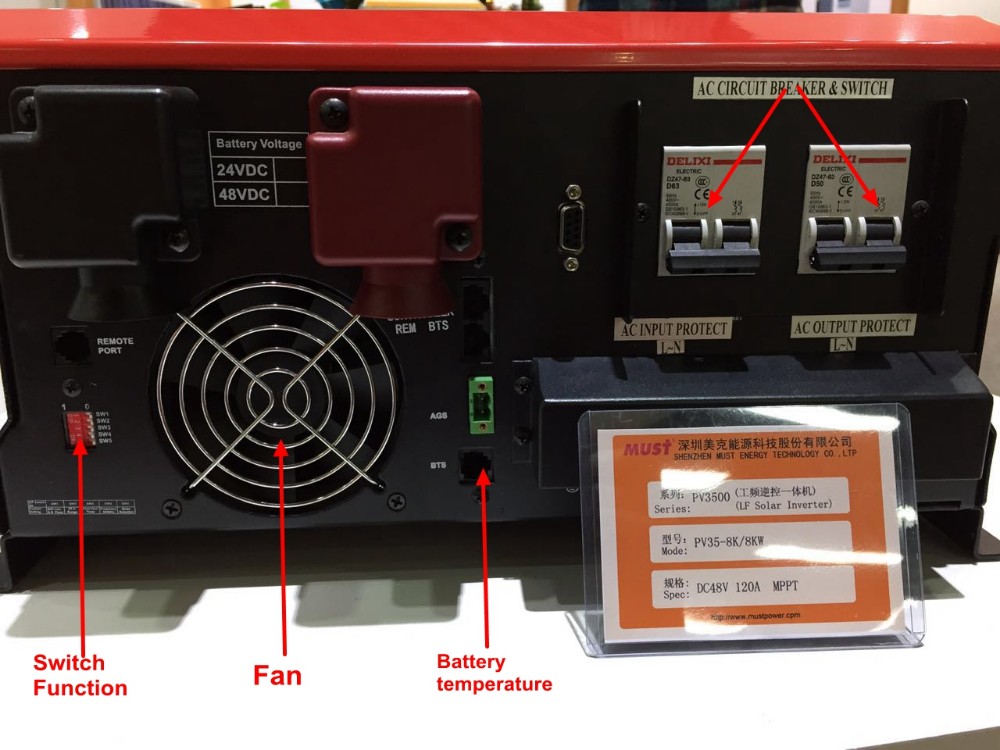

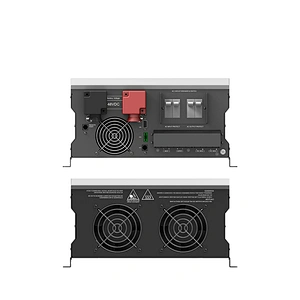

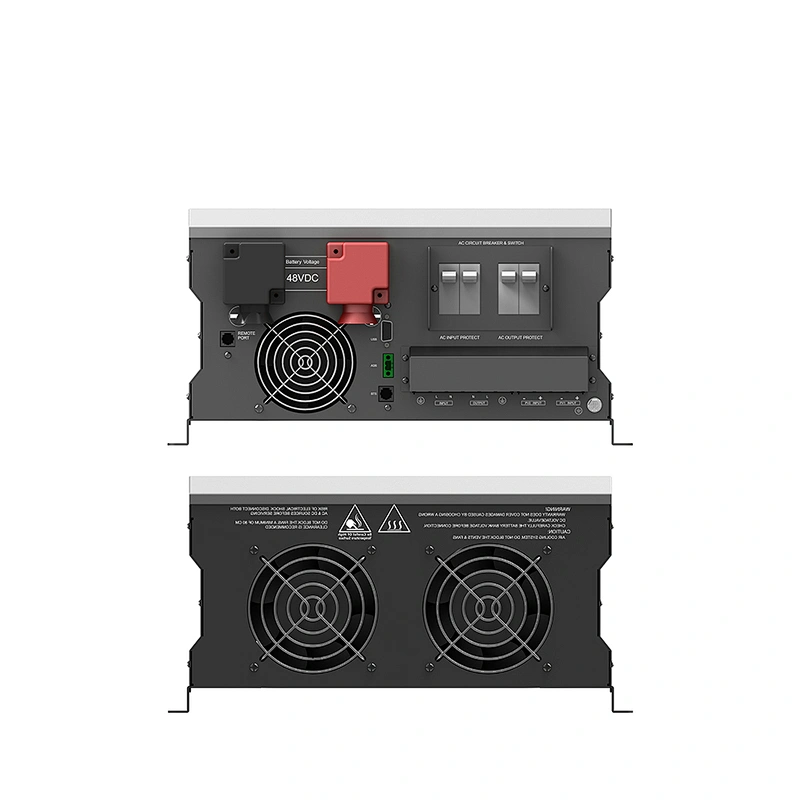

Back terminal: battery connection terminal, battery temperature terminal, AC circuit breaker &switch, remote control port, PV in terminal, AC in terminal, earthing terminal

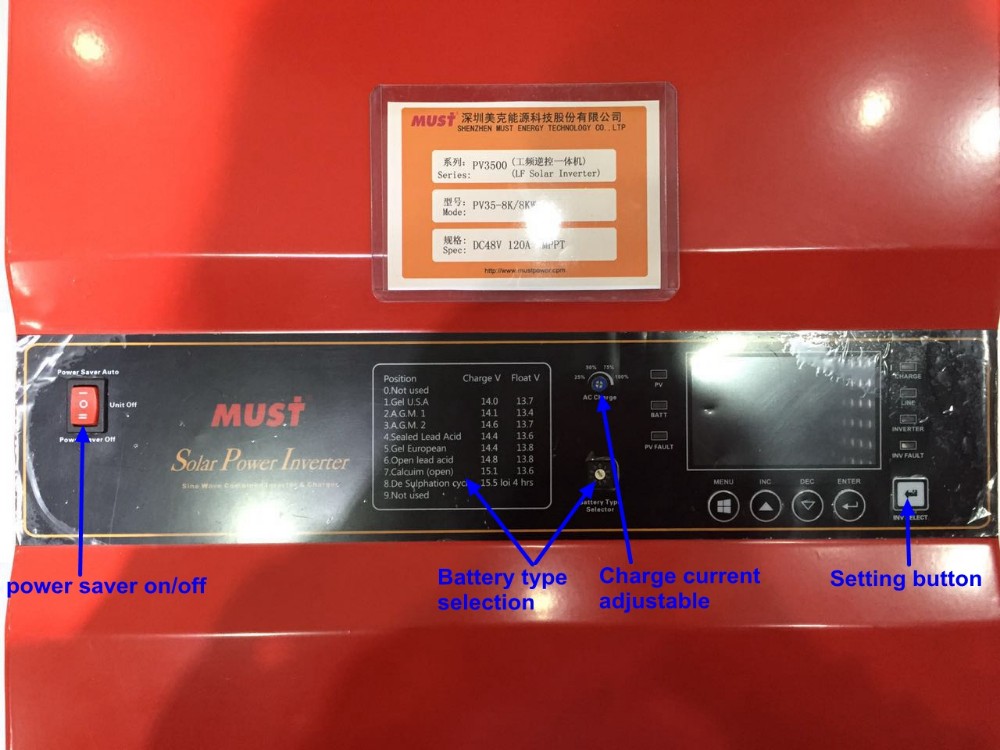

Top Setting button:can adjust the charge current, select the battery type, and set operation mode, such as PV priority mode, AC priority mode, PV&AC combined mode.
Product parameters: solar system inverter with MPPT charger
| MODEL | PV35-8K | PV35-10K | PV35-12K |
| Nominal Battery System Voltage | 48VDC | 48VDC | 48VDC |
| INVERTER OUTPUT | |||
| Rated Power | 8.0KW | 10.0KW | 12.0KW |
| Surge Rating (20ms) | 24.0KW | 30.0KW | 36.0KW |
| Capable Of Starting Electric Motor | 4HP | 5HP | 6HP |
| Waveform | Pure sine wave/ same as input (bypass mode) | ||
| Nominal Output Voltage RMS | 220V/230V/240VAC(+/-10% RMS) | ||
| Output Frequency | 50Hz/60Hz +/-0.3 Hz | ||
| Inverter Efficiency(Peak) | >88% | ||
| Line Mode Efficiency | >95% | ||
| Power Factor | 0.8 | ||
| Typical Transfer Time | 10ms(max) | ||
| AC INPUT | |||
| Voltage | 230VAC | ||
| Selectable Voltage Range | 154~272VAC(For Personal Computers) | ||
| Frequency Range | 50Hz/60Hz (Auto sensing) | ||
| BATTERY | |||
| Minimum Start Voltage | 20.0VDC/21.0VDC for24VDC mode (40.0VDC/42.0VDC for 48VDC mode) | ||
| Low Battery Alarm | 21.0VDC+/-0.3V for 24VDC mode (42.0VDC+/-0.6V for 48VDC mode) | ||
| Low Battery Cutoff | 20.0VDC+/-0.3V for 24VDC mode (40.0VDC+/-0.6V for 48VDC mode) | ||
| High Voltage Alarm | 32.0VDC+/-0.3V for 24VDC mode (64.0VDC+/-0.6V for 48VDC mode) | ||
| High Battery Voltage Recover | 31.0VDC+/-0.3V for 24VDC mode (62.0VDC+/-0.6V for 48VDC mode) | ||
| Idle Consumption-Search Mode | <25W when power saver on | ||
| AC CHARGER | |||
| Output Voltage | Depends on battery type | ||
| Charger AC Input Breaker Rating | 40A | 50A | 63A |
| Overcharge Protection S.D. | 31.4VDC for 24VDC mode (62.8VDC for 48VDC mode ) | ||
| Maximum Charge Current | 70A | 80A | 100A |
| BTS | |||
| Continuous Output Power | Yes Variances in charging voltage & S.D. voltage base on the battery temperature | ||
| BYPASS & PROTECTION | |||
| Input Voltage Waveform | Sine wave (grid or generator) | ||
| Nominal Input Frequency | 50Hz or 60Hz | ||
| Overload Protection (SMPS Load) | Circuit breaker | ||
| Output Short Circuit Protection | Circuit breaker | ||
| Bypass Breaker Rating | 80A | 80A | 80A |
| Max Bypass Current | 80Amp | ||
| SOLAR CHARGER | |||
| Maximum PV Charge Current | 60A(120A Optional) | ||
| DC Voltage | 48V | ||
| Maximum PV Array Power | 3200W(6400W for 120A Optional) | ||
| MPPT Range @ Operating Voltage(VDC) | 64~147VDC | ||
| Maximum PV Array Open Circuit Voltage | 147VDC | ||
| Maximum Efficiency | >98% | ||
| Standby Power Consumption | <2W | ||
| MECHANICAL SPECIFICATIONS | |||
| Mounting | Wall mount | ||
| Dimensions (W*H*D) | 670*410*215mm | ||
| Net Weight (Solar CHG) kg | 69+2.5 | 75.75+2.5 | 75.75+2.5 |
| Shipping Dimensions(W*H*D) | 884*618*443mm | ||
| Shipping Weight (Solar CHG) kg | 89+2.5 | 95.5+2.5 | 95.5+2.5 |
| OTHER | |||
| Operation Temperature Range | 0°C to 40°C | ||
| Storage Temperature | -15°C to 60°C | ||
| Audible Noise | 60dB MAX | ||
| Display | LED+LCD | ||
| Loading(20GP/40GP/40HQ) | 140pcs / 280pcs / 320pcs | ||
Related product without MPPT solar charge controller:
Product processing: solar system inverter with MPPT charger

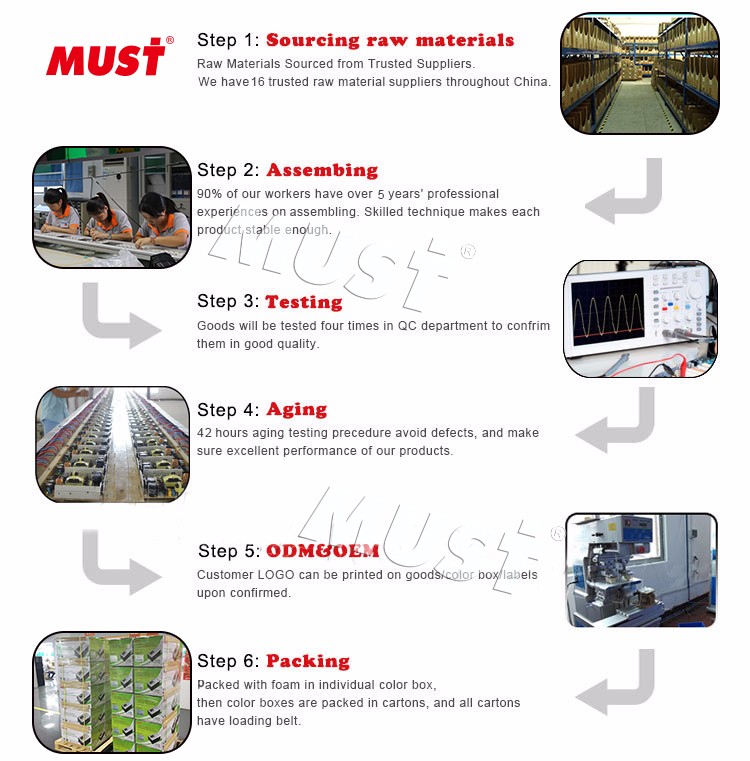

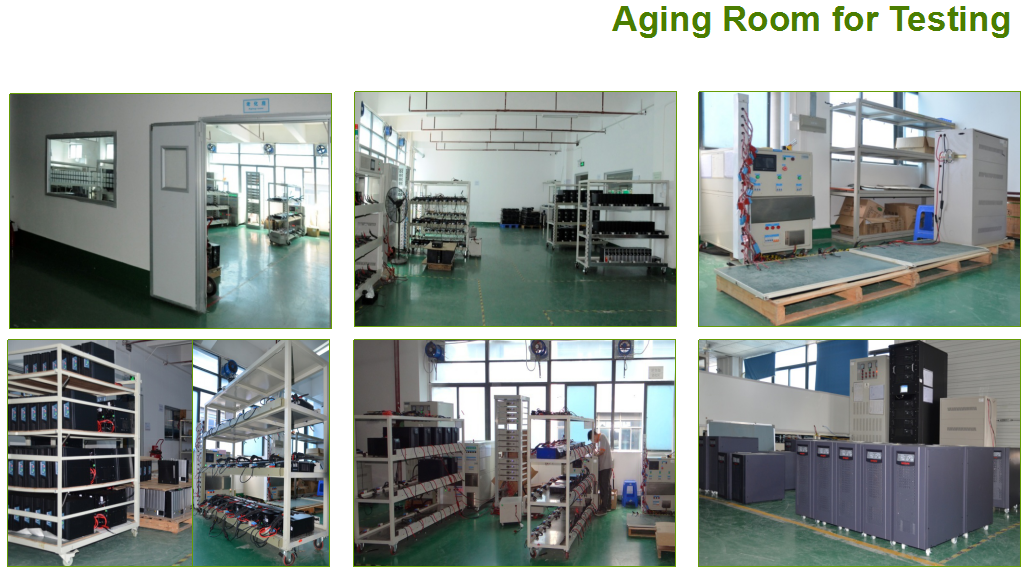

raw materials procurement---PCB assembly---PCB quality inspection---semi-finished assembly---quality inspection with computer---finished quality inspection with computer---aging at least 4hours---QA & QC inspection---packing---warehousing

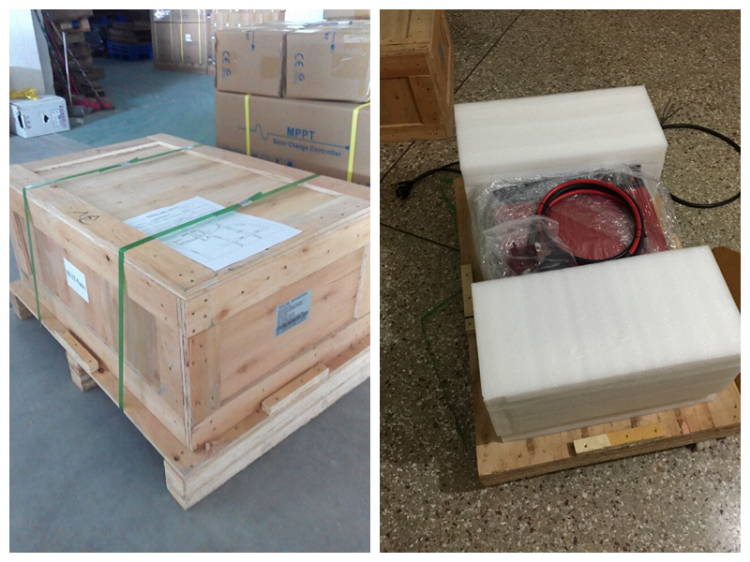

Packing:
1pc/carton
with wooden package outside
Packing size: 890*620*415mm
Shipping weight: 96kg
Net weight: 75kg
Shipping:
For samples, like 1-3pcs, you'd better choose the air shipping; for bulk order, you can shoose by air, by express, or by sea.
Why Choose MUST?
Must Power Limited devotes itself to power field since 1998, and has its own factory in 2008. Now it has about 300 regulor employees, including 40 engineers in R&D Department, 3 engineers in After-sales Service Center Department, 40 internation sales. MUST products are slod in 98 countries all over the world till now, and the revenue growth is from 2.86 milion US Dollars in 1998 to 130 milion US Dollars in 2017.
we have rich experience in handiling orders for heavy buyers with professional process.
- Stable raw material purchasing
- Favorable orders follow-up management
- Laudable lead-time & shipment control
- Traceable quality evaluation
- Flexible payment terms
- Remarkable after-sale service
MUST certificates and patents: MUST got the National High-tech Enterprise in 2016, and Shenzhen High-tech Enterprise, the ISO9001, CE, SAA, CONCAP, etc. And also MUST has software and hardware patents.

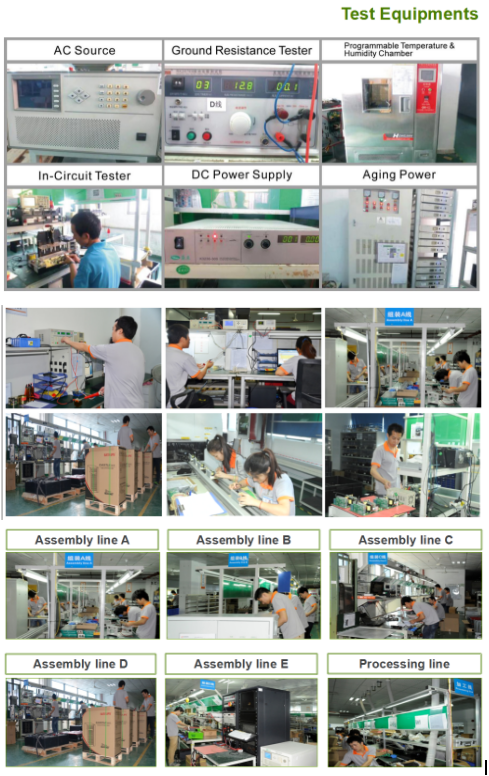

MUST production equipments: crest welder, ATE, Aging testing equipment, etc.
MUST 2018 exhibition
24 hours Online----You will get my quotation and response within 24hours
12 months warranty----You will get the spare parts and maintaince guides if any break dowm
Available spare parts----You will get the spare parts for after-sale service
After-sale service----You will be servised by the professional after-sale service center if any problems
To be regular clients or Agents of MUST----You will get the beautiful gifts and many Preferencial Policy
Q: MUST main products?
A: 1) solar inverter, such as 1KW to 12KW off grid solar inverter with controller inside, on & off grid solar inverter 5000W, pure on grid inverter
2) home power inverter, such as 1000W to 12KW home inverter with AC charger
3) UPS
4) MPPT solar charge controller from 40A to 80A
Q: OEM service is available?
A: it would be warmly welcome for bulk order
