- Place of Origin:China
- Brand Name:OEM
- Model Number:PV1800
- Input Voltage:220vac/230vac
- Output Voltage:220vac/230vac
- Output Current:60A
- Output Frequency:50hz/60hz
- Output Type:Single
- Size:297.5*468*125mm
- Type:DC/AC Inverters
- Inverter Efficiency:98%
- Certificate:CE
- Warranty:1 year
- Weight:9-18KG
- color:Red
- display:LCD
- Voltage:12v/24v/48vdc
- frequency:high frequency
- battery charger current:max 60amp
- backup time:No limited
- inverter:home applications
- efficiency:98%
- transfer time:10MS
- Storage temperature:15°C below zero to 60°C
HOT SALE Solar Inverter 2KVA-5kva off grid Solar Inverter Solar Systems
***************ANY QUESTIONS, PLS FEEL FREE TO ASK Larin !!!!*****************
WHATSAPP: 008615770536318 Wechat:15770536318
| Specification of the Solar Inverter PV1800 series |
- Pure sine wave output;
- Built-in MPPT solar charge controller 80A;
- Selectable input voltage range for home appliances and personal computers;
- Selectable charging current based on applications;
- Configurable AC/Solar input priority via LCD setting;
- Compatible to mains voltage or generator power;
- Auto restart while AC is recovering;
- Overload and short circuit protection;
- Smart battery charger design to optimize battery performance;
- Cold start function;
- Optional Remote Control Panel available.

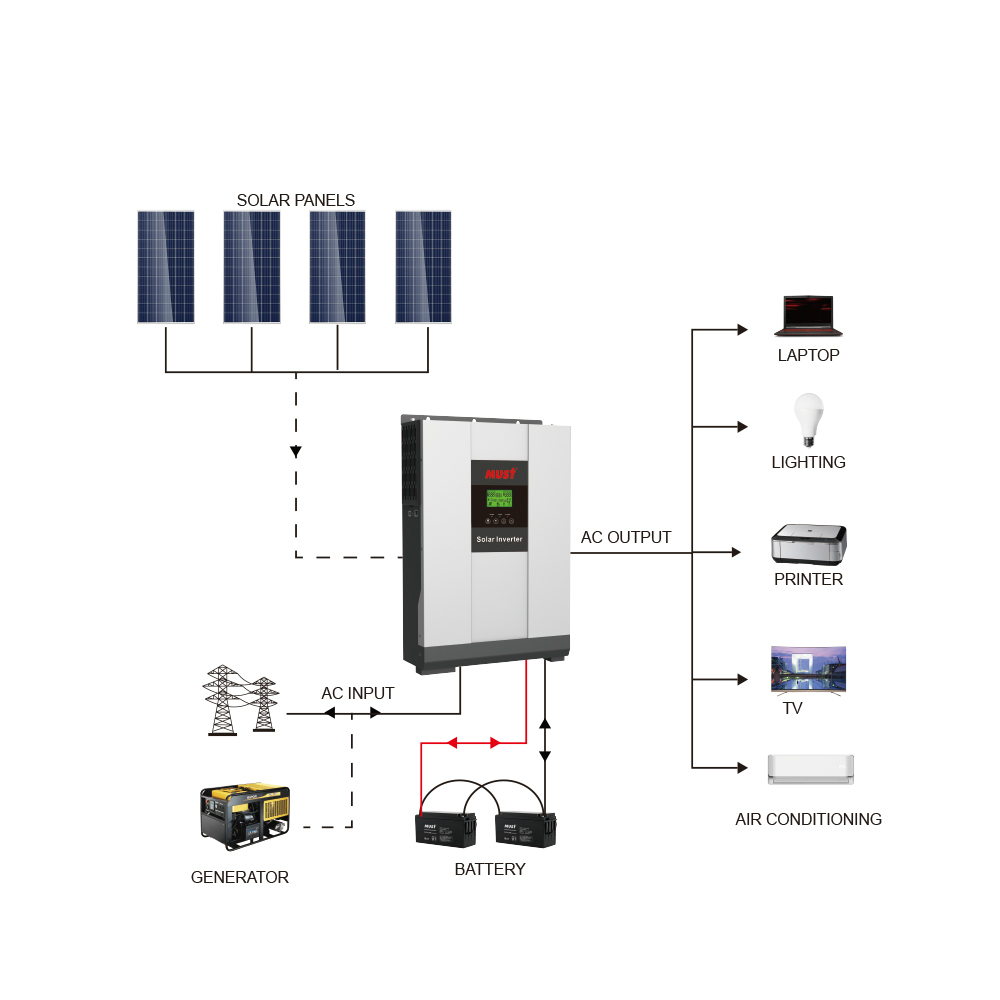

| Product Link Sketch |
| Product for Home Installation |

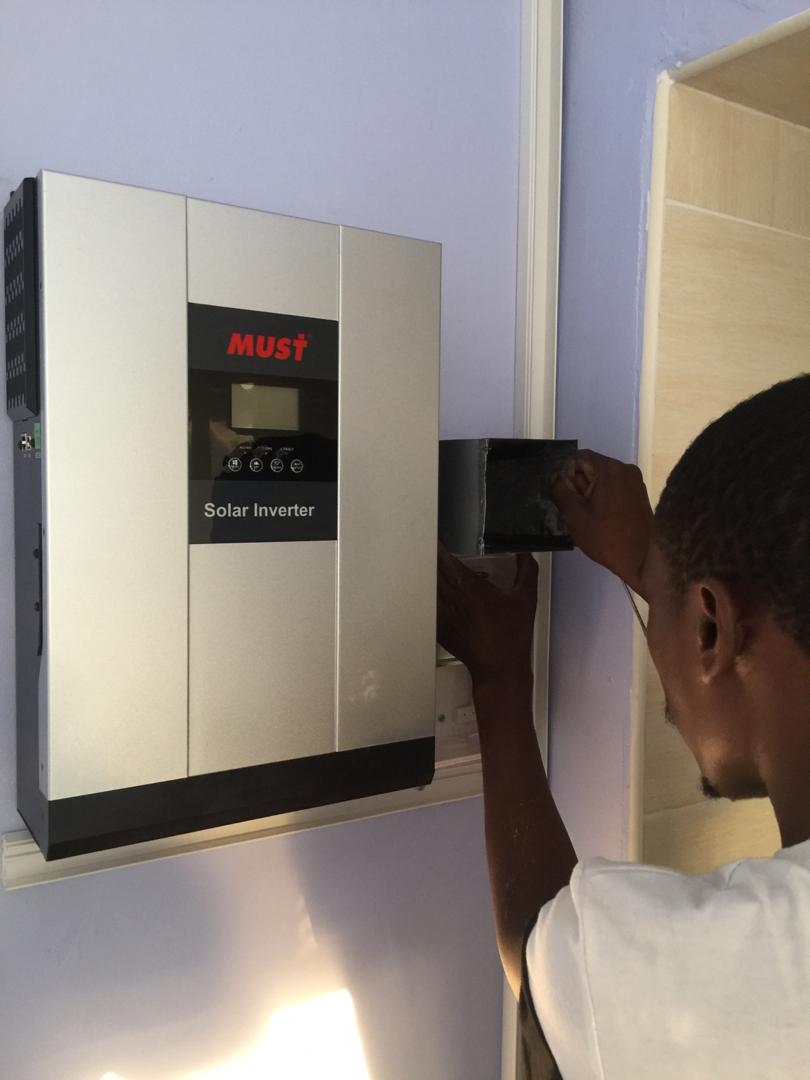

(1)Single Unit Installation

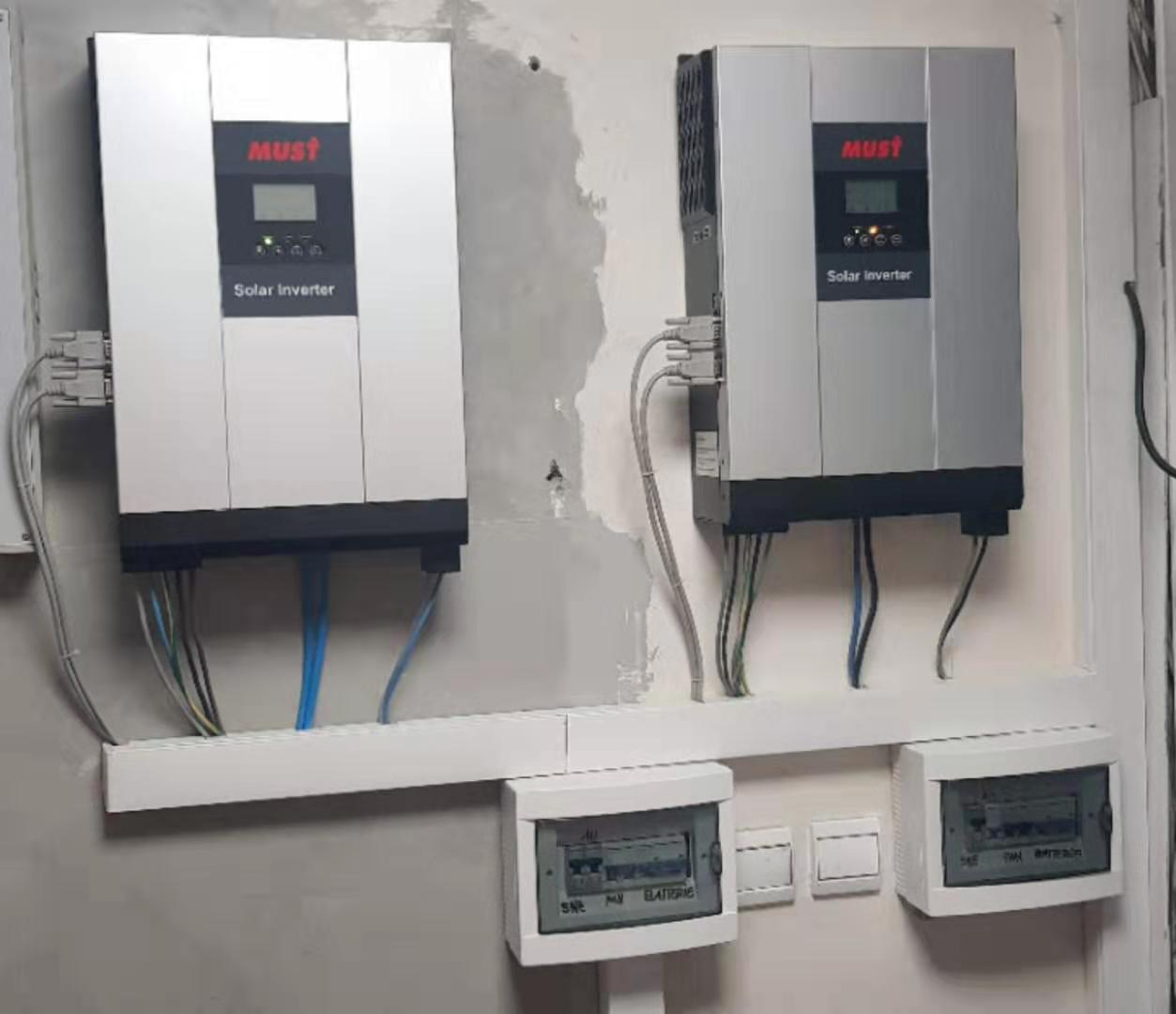

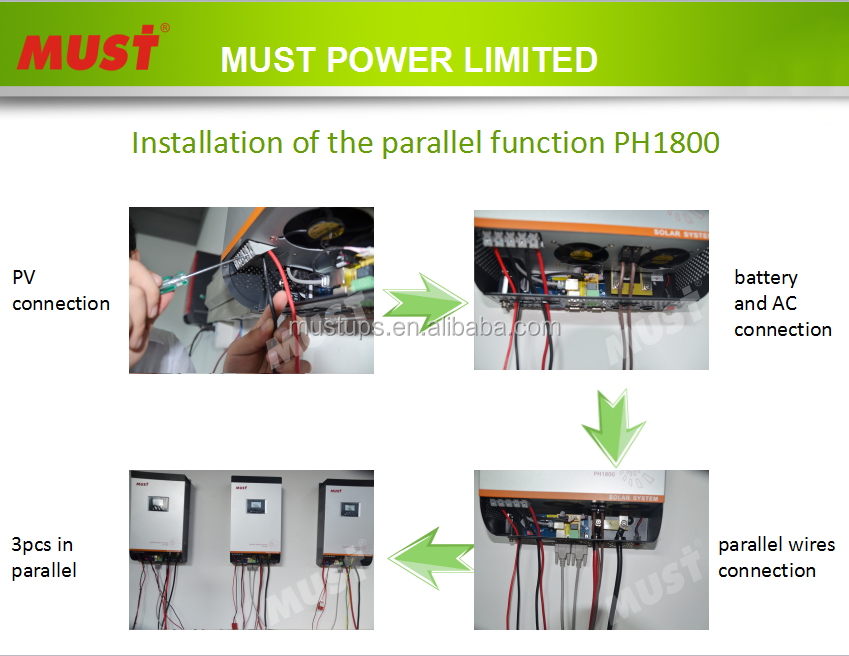

(2)Parallel In two Units Installation

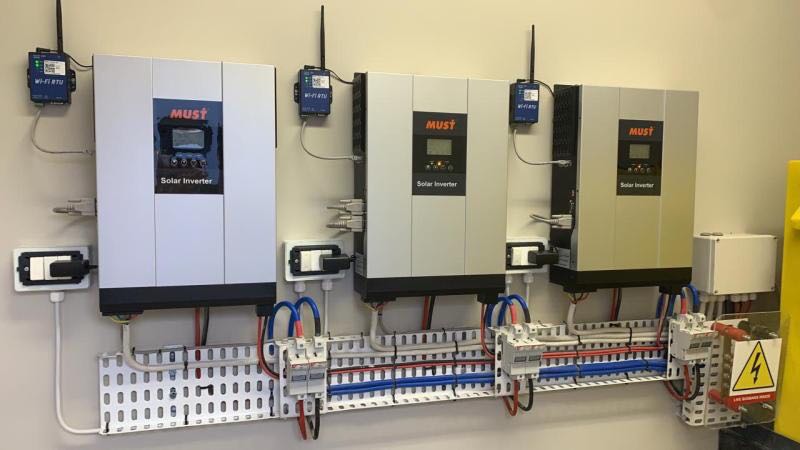

(3)Parallel In Three Units Installation
| Product Parameter |
| MODEL | PV18-2024 VHM | PV18-3024 VHM | PV18-3048 VHM | PV18-4048 VHM | PV18-5048 VHM | PV18-5548 VHM |
|---|---|---|---|---|---|---|
| Nominal Battery System Voltage | 24VDC | 48VDC | ||||
| INVERTER OUTPUT | ||||||
| Rated Power | 2000W | 3000W | 3000W | 4000W | 5000W | 5500W |
| Surge Power | 4000W | 6000W | 6000W | 8000W | 10000W | 11000W |
| Waveform | Pure sine wave | |||||
| AC Voltage Regulation (Batt.Mode) | (220VAC ~ 240VAC)±5% | |||||
| Inverter Efficiency (Peak) | 93% | |||||
| Transfer Time | 10ms(For Personal Computers)20ms(For Home Appliance) | |||||
| AC INPUT | ||||||
| Voltage | 230VAC | |||||
| Selectable Voltage Range | 170~280VAC(For Personal Computers); 90~280VAC(For Home Appliances); 184~253VAC(VDE4105) | |||||
| Frequency Range | 50Hz/60Hz (Auto sensing) | |||||
| BATTERY | ||||||
| Normal voltage | 24VDC | 48VDC | ||||
| Floating Charge Voltage | 27VDC | 54VDC | ||||
| Overcharge Protection | 31VDC | 60VDC | ||||
| SOLAR CHARGER&AC CHARGER | ||||||
| Maximum PV Array Open Circuit Voltage | 145VDC | |||||
| PV Array MPPT Voltage | 30~130VDC | 64~130VDC | ||||
| Standby Power Consumption | 2W | |||||
| PV Input Power | 1440W/1920W | 2880W/3840W | ||||
| Maximum Solar Charge Current | 60/80A | |||||
| Maximum Effciency | 98% | |||||
| Maximum AC Charge Current | 20/30A | 60A | ||||
| Maximum Charge Current | 80A | 120/140A | ||||
| MECHANICAL SPECIFICATION | ||||||
| Machine Dimensions (W*H*D)(mm) | 272*355*100 | 297.5*468*125 | ||||
| Package Dimensions (W*H*D)(mm) | 540*395*241 | 638*395*241 | ||||
| Net Weight(kg) | 10 | 11 | 13.3 | |||
| Gross Weight(kg) | 11.7 | 12 | 16.4 | |||
| OTHER | ||||||
| Humidity | 5% to 95% Relative Humidity (Non-condensing) | |||||
| Operating Temperature | 0°C -55°C | |||||
| Storage Temperature | -15°C -60°C | |||||

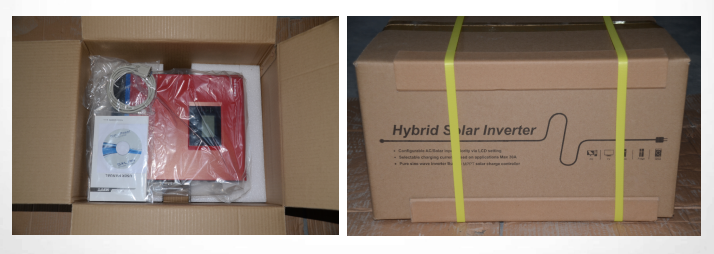

| Product Packing |

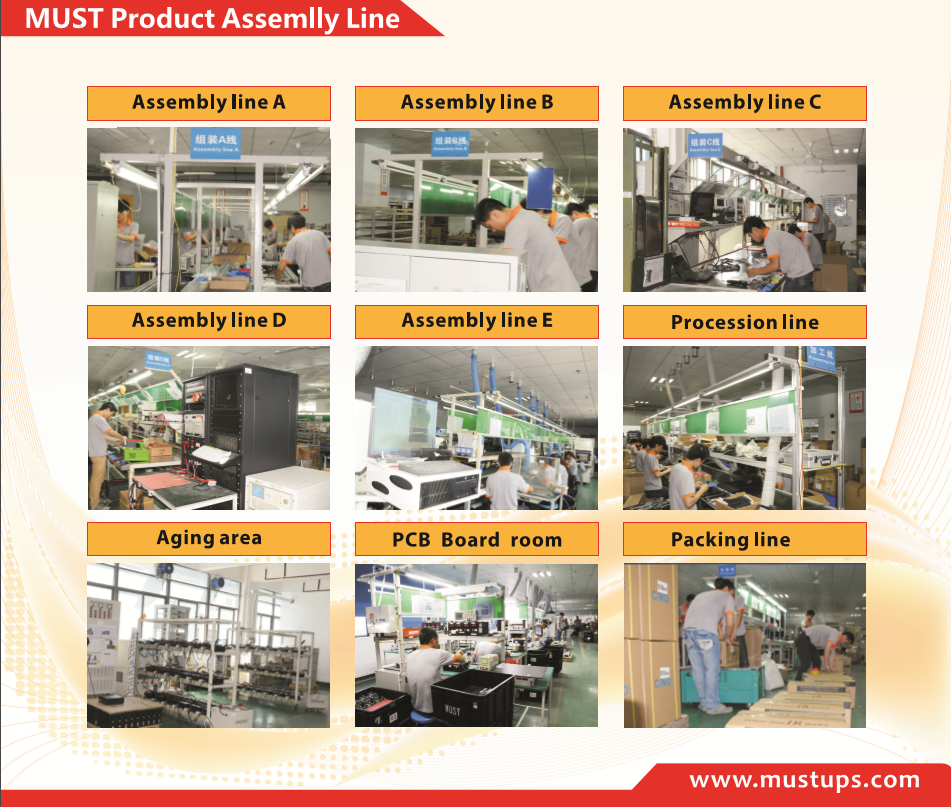

| Must Company Information |
| Headquarter & Factory Location | In HongKong & Shenzhen,Guangdong China Mainland |
| Industry Experience | 6-Year Manufacturer, 12-Year Trading, 6-Year Alibaba Gloden Supplier |
| Product Range | Inverter,Solar Inverter, Off-grid Inverter Grid-tie Solar Inverter, MPPT Solar Charge Controller, Solar Panel, Solar Battery, Solar System |
| Main Market | Africa, Middle East & Asia ( Ukraine, Russia, Vietnam, Pakistan, Nigeria, Kenya, South Africa, Ghana,etc.) |
| Factory | 8000 Square Meters, 220 workers |
| Department | 7-teams Marketing Dept, 2-team R&D, 1 Manufacturing Center, QA Office, After-sale Service Dept. |
| Certificate | ISO9001:2008, CE, IEC,SAA, SGS, Soncap,etc |
| Patent | Software Patent, Design Patent, Project Patent |
| Frequently Asked Questions: |
Q1: How to choose a right inverter?
A1:Tell us your demand, then our sales will recommend a suitable inverter to you.
Q2: What's the different between inverter and solar inverter?
A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.
Q3: How about the delivery time?
A3: 7 days for sample; 25 days for bulk order.
Q4: What is the warranty of inverter?
A4: One year warranty on Must-Solar product.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
