- Place of Origin:Guangdong, China
- Brand Name:MUST
- Model Number:PC18-8015F
- Type:MPPT, MPPT Charge Regulator
- Application:Charger Controller
- Product name:Mppt Charge Controller
- Charge mode:MPPT Maximum Power Point Tracking
- Warranty:1 Years
- Display:LCD+LED
- Certification:CE RoHS ISO9001
- System voltage:12v/24v/48v Automatic Recognition
- Rated Current:10A/20A/30/40A/50A/60A/80A
- Color:Silver
- Weight:3KG

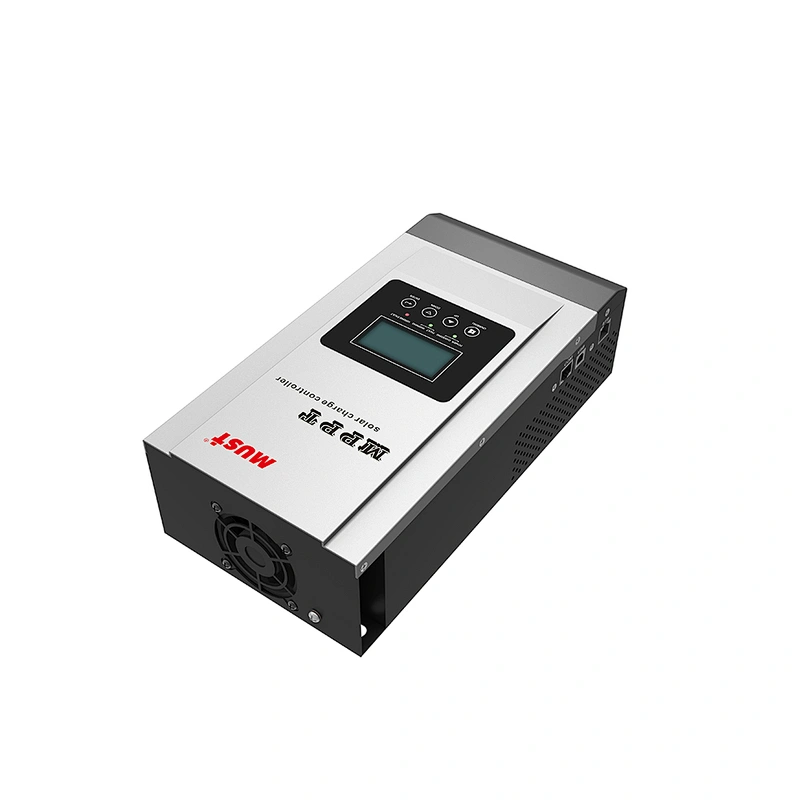

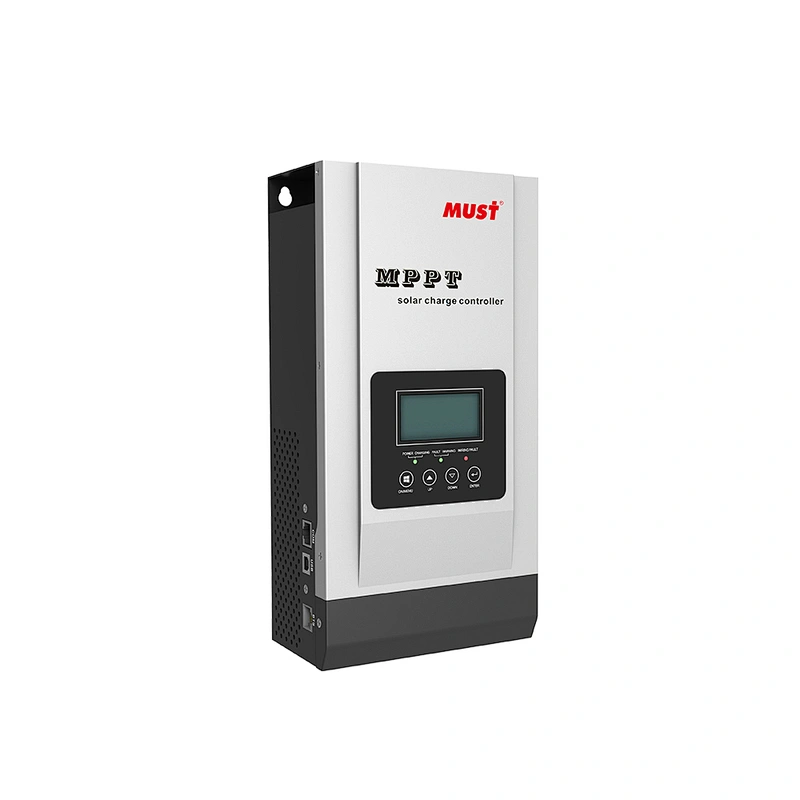

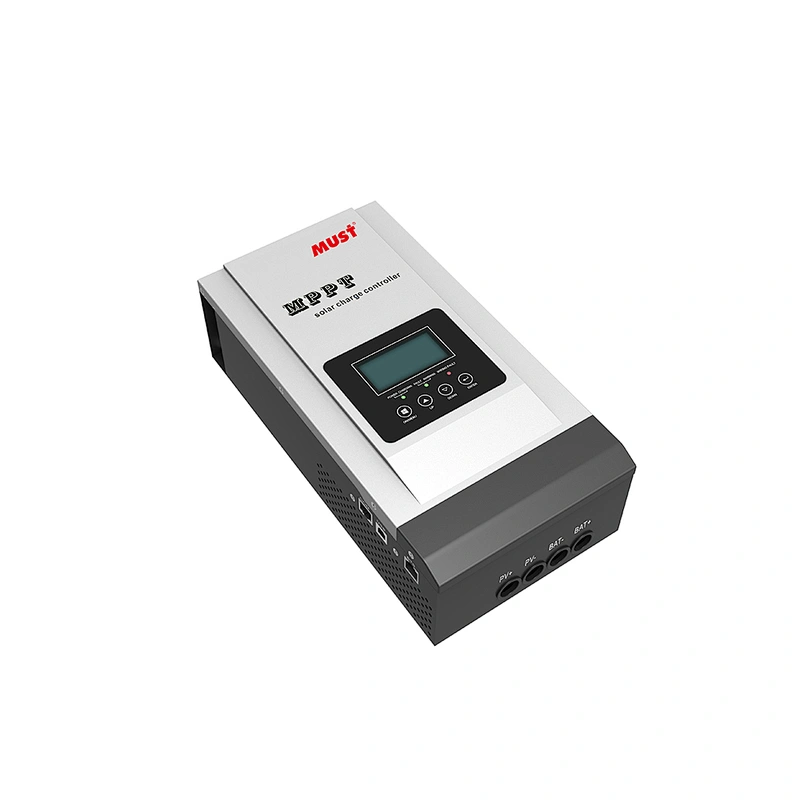

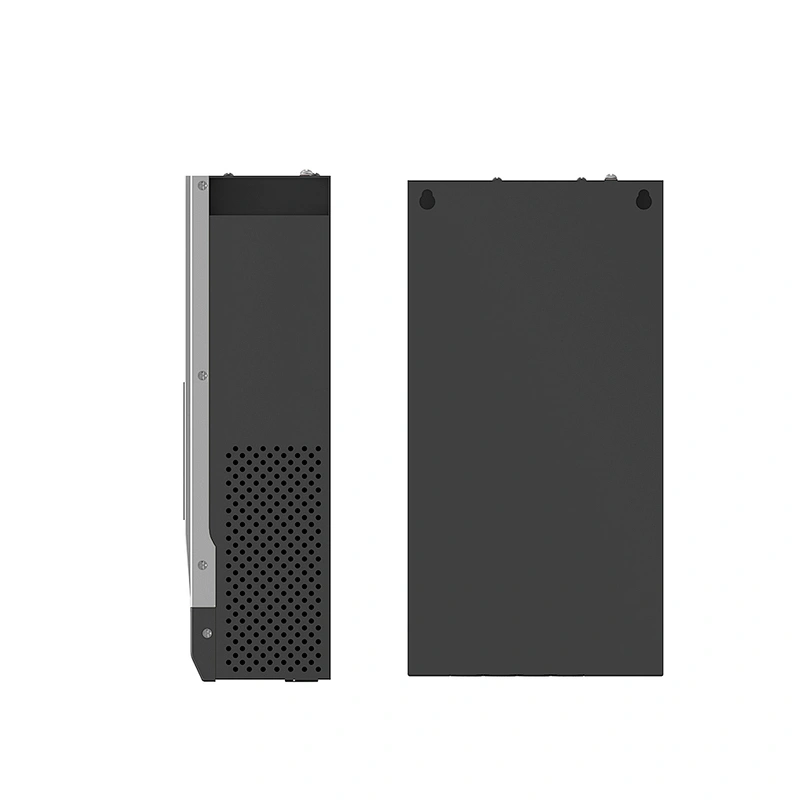

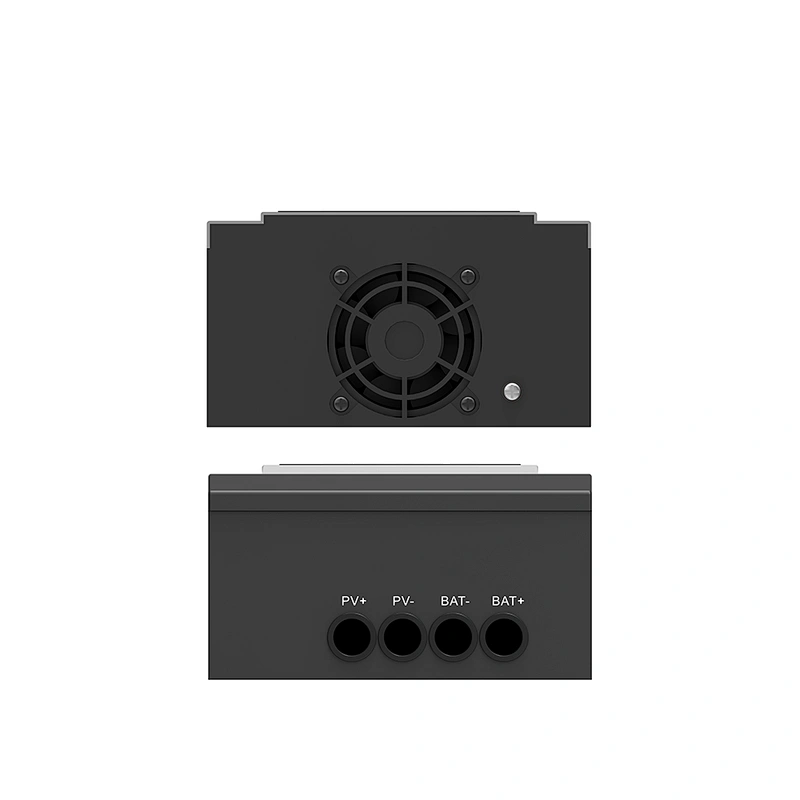

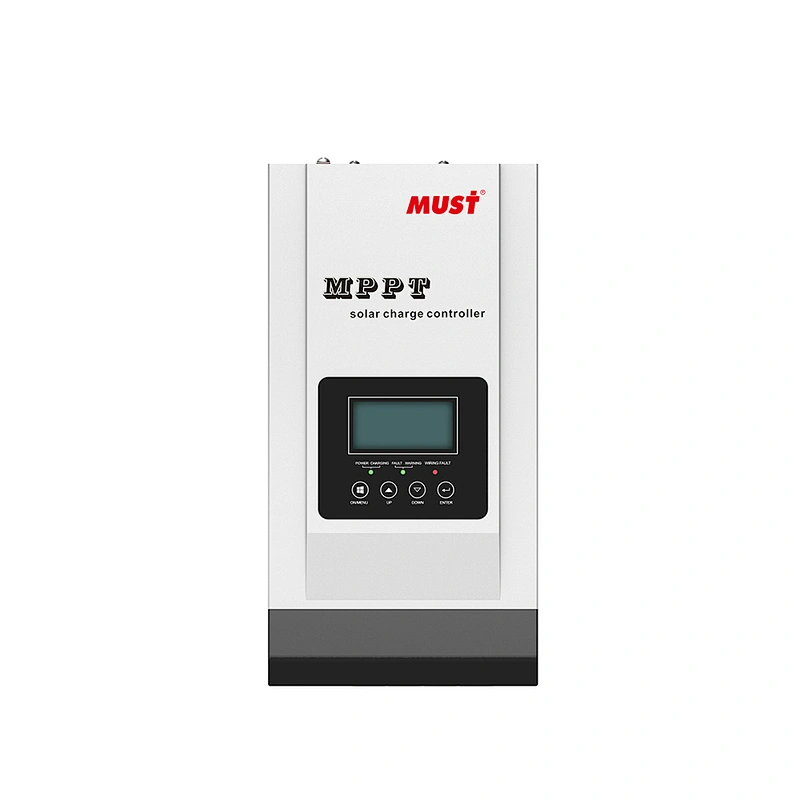

MUST MPPT 60Amp 80Amp solar charge controller PC1800F 12V 24V 36V 48V auto switch
Model: PC1800F 60A~80A
MPPT (Maximum Power Point Tracking)Solar Charge Controller offer an efficient, safe, multi-stage recharging process that prolongs battery life and assures peak performance from a solar array. Each Charge Controller allows customized battery recharging.
| Main Advantages |
- LCD display , easy to operate on LCD screen
- Multi stage charging (3-stage charging , parallel charging and equalized charging function)
- BTS – Battery remote temperature sensor terminal
- Enable to charge Li-thium, Gel , lead-acid battery
- With RS485 & USB communication port
- Protection: PV array short circuit, PV reverse polarity, Battery reverse polarity, Over charging, Output short circuit

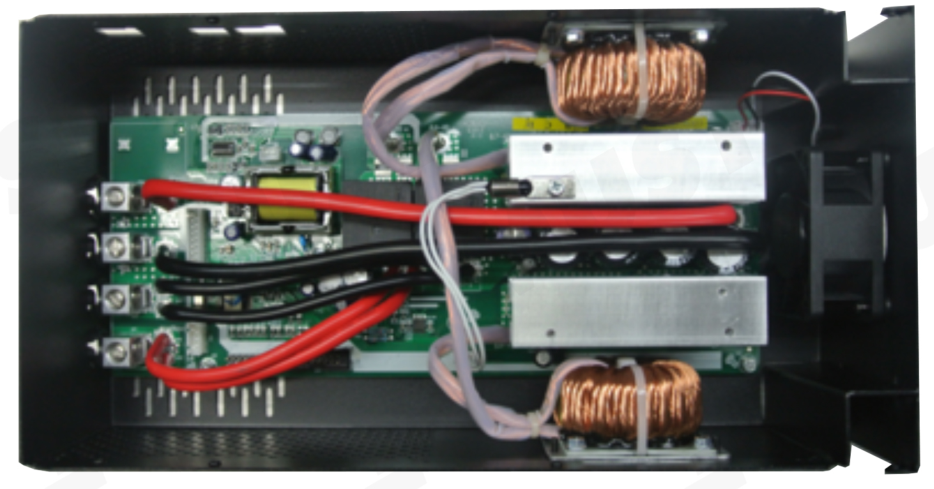

| Inside Structure |
| Product Features |

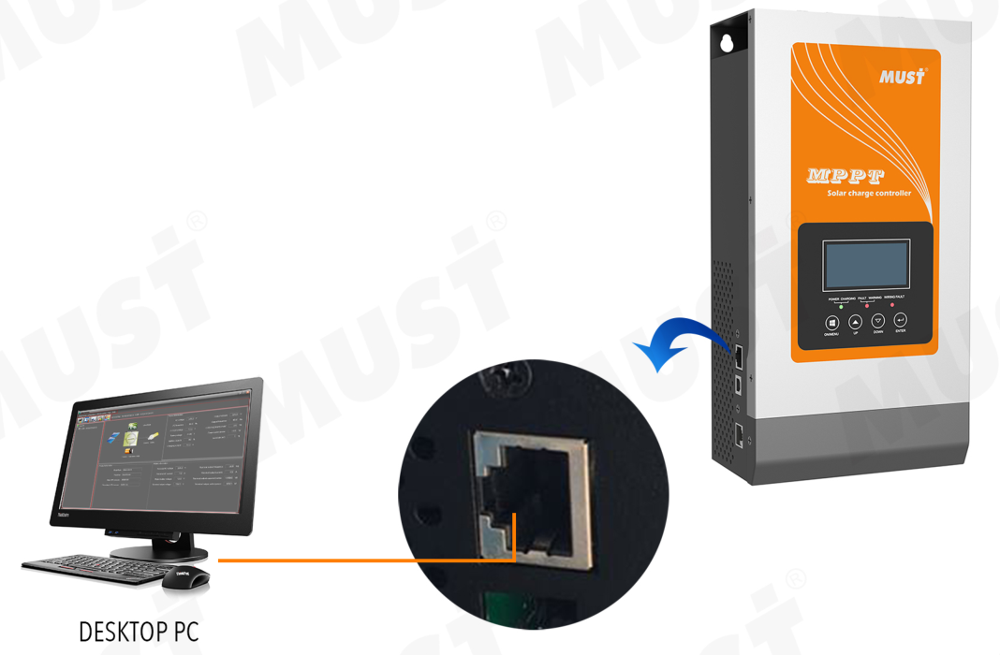

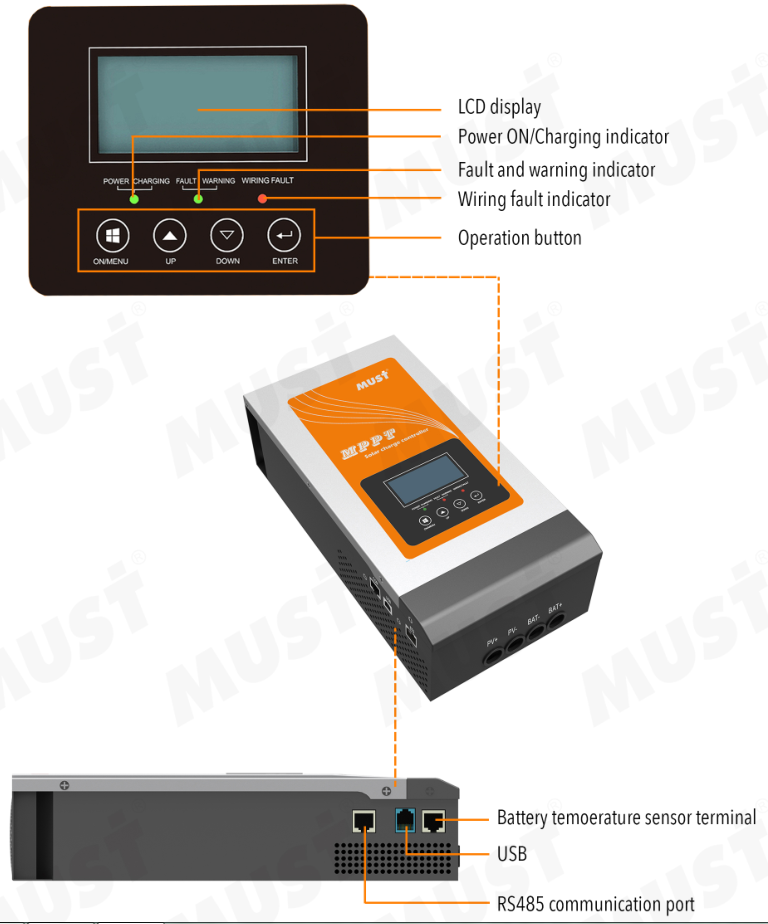

RS485/USB Communication: The default communication of the controller is RS485 port.You can use supplied cable to connect RS485,USB port of controller to PC.It can be used for monitoring or upgrade the firmware in short distance.

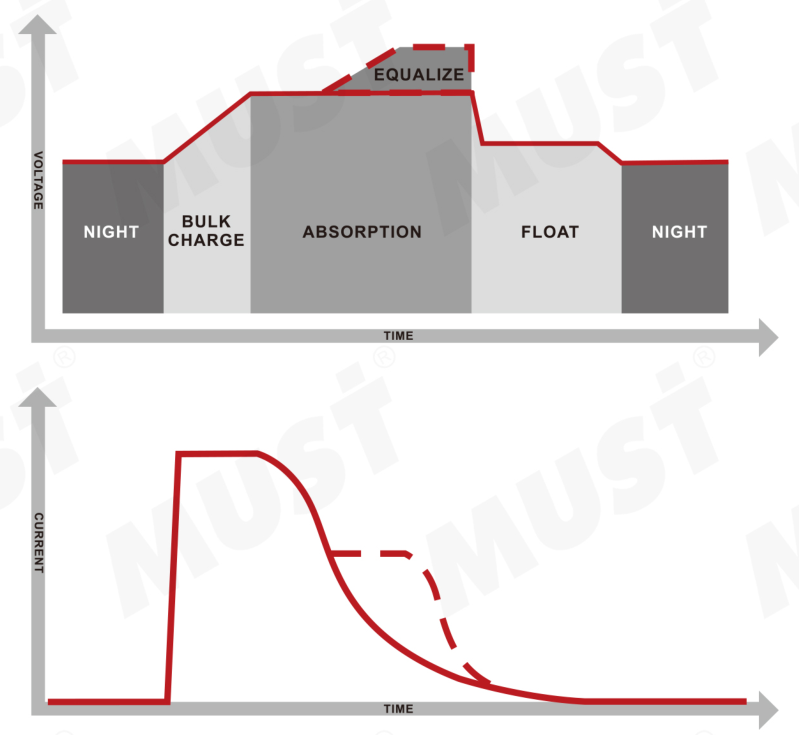

Equalize stage charging function: Equalization function reverses the buildup of negative chemical effects like stratification,a condition where acid concentration is greater at the bottom of the battery than at the top.Equalization also helps to remove sulfate crystals that might have built up on the plates.
Battery reverse protection: There’s a battery reverse protection function in the board, then the controller will be perfectly protected even installer or user connect the battery in reverse pole accidentally

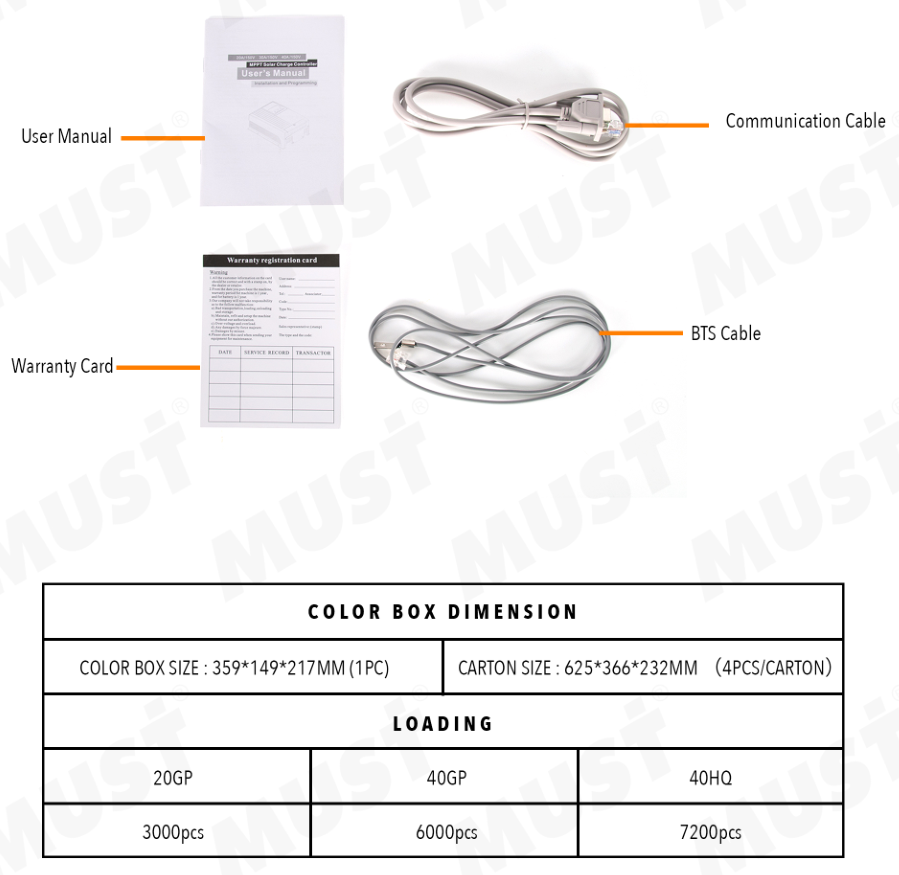

| Product details |

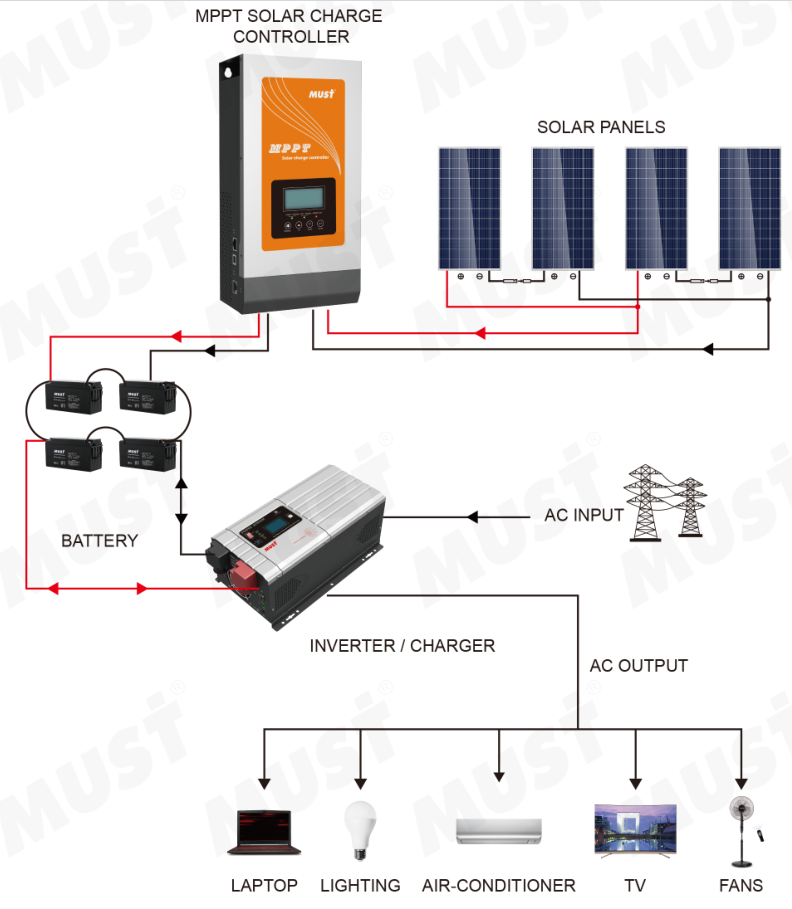

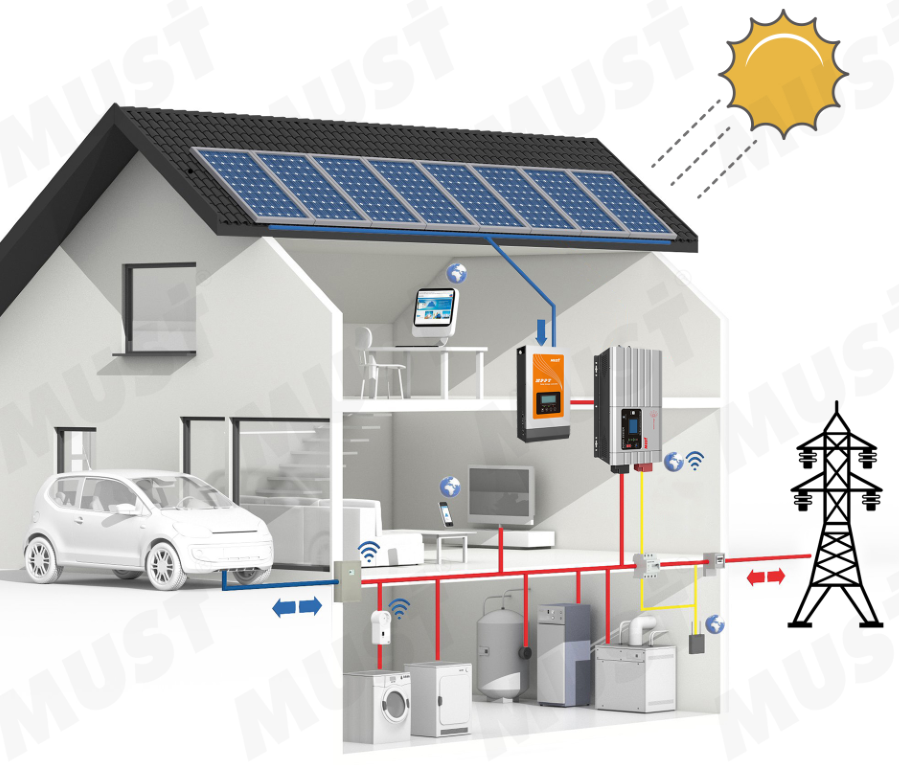

| Solar System Connection |
PC1800F solar inverter system ,it can work with inverter , battery and solar panel , as a complete solar system and back up power for normal home power demands , which take use of sunshine free and save lots of electricity bill for you . This kind of solar inverter systems are widely used in home ,farm ,school,shops etc .
| Practical Application |
The solar charge controller is an automatic control device, it can be used in all solar power system to control solar panel array to charge batteries.

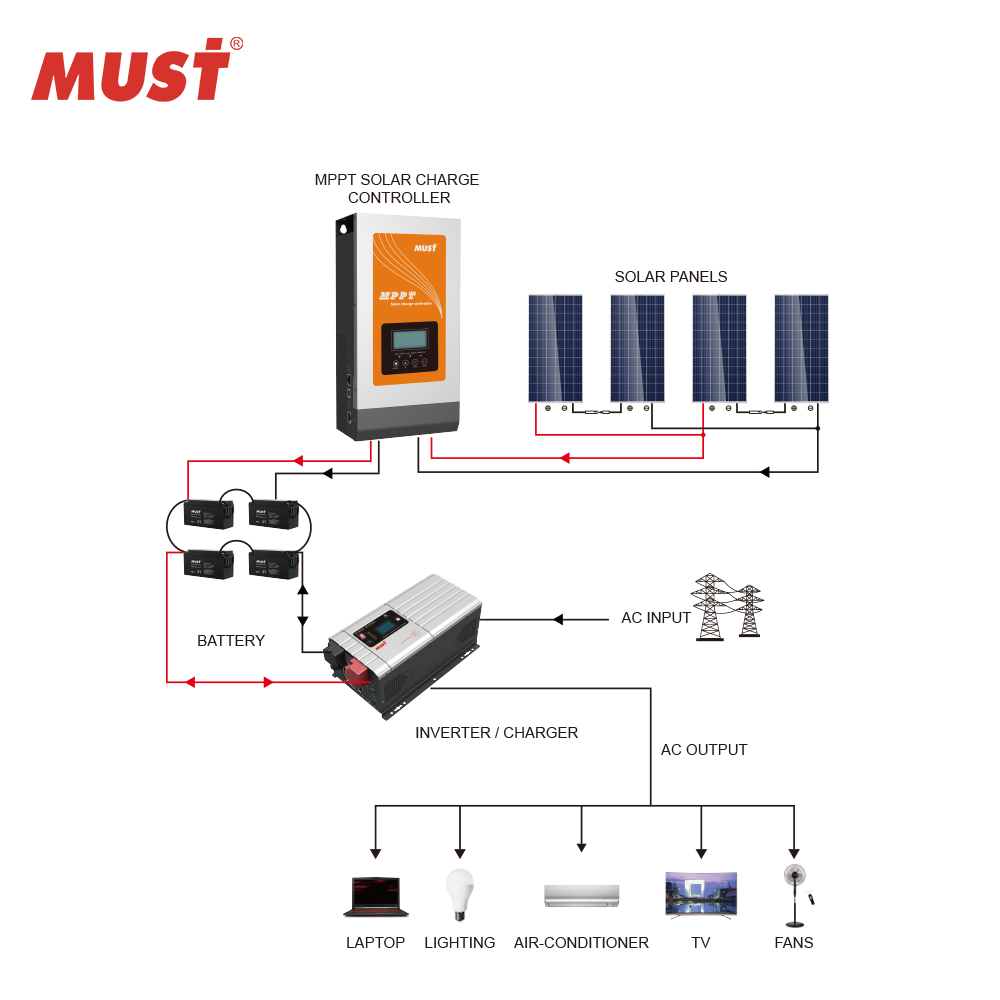

Solar Inverter System Connection: Power Inverter + Solar Charge Controller + Battery + Solar Panels + Grid + Application Loads
| Products parameter |
| MODEL | PC18-6015F | PC18-8015F | ||
| Nominal Battery System Voltage | 12V/24V/48VDC (Auto detection); 36V(setting) | |||
| CONTROLLER INPUT | ||||
| Battery Voltage | 12V | 24V | 36V | 48V |
| Maximum Solar Input Voltage | 100V | 145V | ||
| PV Array MPPT Voltage Range | 15-95V | 30-130V | 45-130V | 60-130V |
| Max PV Input Power(12V) | 938W | 1250W | ||
| Max PV Input Power(24V) | 1875W | 2500W | ||
| Max PV Input Power(36V) | 2813W | 3750W | ||
| Max PV Input Power(48V) | 3750W | 5000W | ||
| BATTERY | ||||
| Charging Set points | Absorption Stage | Float Stage | ||
| Flooded Battery | 14.2V/28.4V/42.6V/56.8V | 13.7V/27.4V/41.1V/54.8V | ||
| AGM/Gel/LEAD battery (Default) | 14.4V/28.8V/43.2V/57.6V | 13.7V/27.4V/41.1V/54.8V | ||
| Over-charging voltage | 15.5V/30.0V/45.0V/60.0V | |||
| Over-charging comeback voltage | 14.5V/29.5V/44.5V/59.0V | |||
| Battery defect voltage | 10.0V/17.0V/25.5V/34.0V | |||
| Temperature Compensation coefficient | -5mv/°C /cell (25°C vef) | |||
| PATTERY | ||||
| Peak Conversion efficiency | 98% (MPPT Efficiency 99%) | |||
| Max Charging Current | 60 amps continuous @ 40°C ambient | 80 amps continuous @ 40°C ambient | ||
| GENERAL SPECIFICATION | ||||
| Radiating mode | Fan cooling | |||
| DISPLAY & PROTECTION | ||||
| Protections | Solar high voltage disconnect; Solar high voltage reconnect; Battery high voltage disconnect; Battery high voltage reconnect; High temperature disconnect; High temperature reconnect. | |||
| MECHANICAL SPECIFICATIONS | ||||
| Mounting | Wall mount | |||
| Machine Dimension(W*H* D) | 152*85*294mm (per pcs) | |||
| G.W(Kg) | 3Kg/pcs | |||
| Package Dimension(W*H* D) | 612*308.2*235.6mm (5pcs/Carton) | |||
| Gross Weight(Kg) | 17.4Kg(per Carton) | 19Kg(per Carton) | ||
| OTHER | ||||
| Environmental Rating | Indoor | |||
| Operation Temperature Range | -25~55°C | |||
| Ambient humidity | 0~90% relative humidity(non-condensing) | |||
| Altitude | ≤3000m | |||
| Loading(20GP/40GP/40HQ) | 3000pcs / 6000pcs / 7200pcs | |||
Must Power Limited devotes itself to power field since 1998, and has its own factory in 2008. Now it has about 300 regulor employees, including 40 engineers in R&D Department, 3 engineers in After-sales Service Center Department, 40 internation sales. MUST products are slod in 98 countries all over the world till now, and the revenue growth is from 2.86 milion US Dollars in 1998 to 130 milion US Dollars in 2017.
we have rich experience in handiling orders for heavy buyers with professional process.
- Stable raw material purchasing
- Favorable orders follow-up management
- Laudable lead-time & shipment control
- Traceable quality evaluation
- Flexible payment terms
- Remarkable after-sale service
MUST certificates and patents: MUST got the National High-tech Enterprise in 2016, and Shenzhen High-tech Enterprise, the ISO9001, CE, SAA, CONCAP, etc. And also MUST has software and hardware patents.

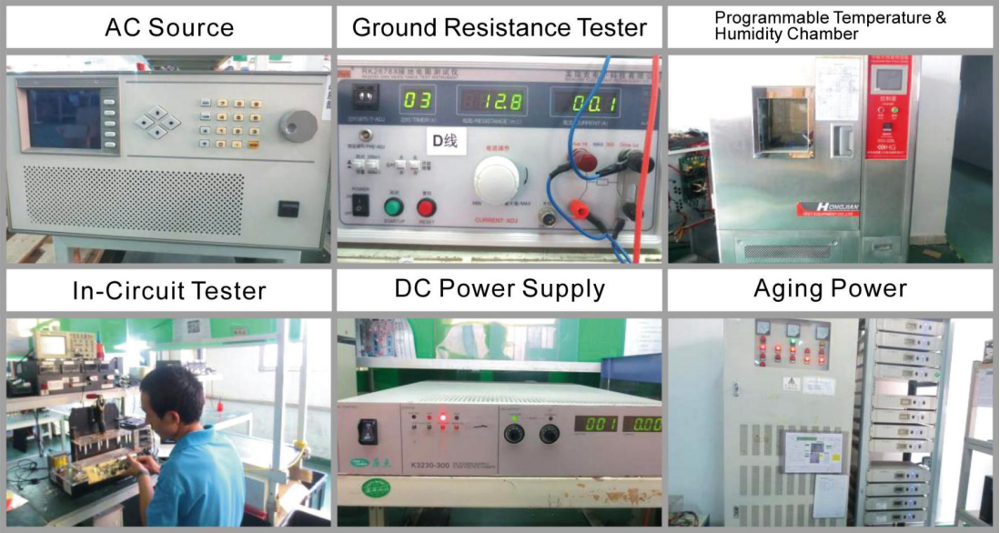

Testing Equipment
24 hours Online----You will get my quotation and response within 24hours
12 months warranty----You will get the spare parts and maintaince guides if any break dowm
Available spare parts----You will get the spare parts for after-sale service
After-sale service----You will be servised by the professional after-sale service center if any problems
To be regular clients or Agents of MUST----You will get the beautiful gifts and many Preferencial Policy
1. Q: Can I have sample before formal order?
A: Sure, it will be warmly welcomed.
2. Q: What's the warranty:
A: 12 months for free.
3. Q: What's the payment methods?
A: Usually we accept T/T (Telegraphic Transfer)
4. Q: OEM is available?
A: Yes, OEM is welcomed.
