- Place of Origin:Guangdong, China
- Brand Name:MUST or OEM
- Model Number:PH1800 PRO series
- Input Voltage:24/48V DC
- Output Voltage:230VAC±5% (Setting)
- Output Current:13.04-21.74A
- Output Frequency:50Hz/60Hz
- Output Type:Single
- Size:289*414*124.5/330*488*119mm
- Type:DC/AC Inverters
- Inverter Efficiency:90%-93%
- Certificate:CE ISO9001 etc.
- Warranty:12 months, one year free, 3 years with extra fees
- Weight:8-14KG
- Rated Power:3000W to 5000W
- Inside charge controller:MPPT 60A/ 80A
- Output waveform:pure sine wave
- Working modes:SUB: Solar-Utility-Battery
- Power factor:1
- Parallel operation:up to 3units parallel connection
- Protection:over-load, short-circuit, deep discharge
- Remote monitoring:USB, RS485, WIFI
- Compatible to generator:yes

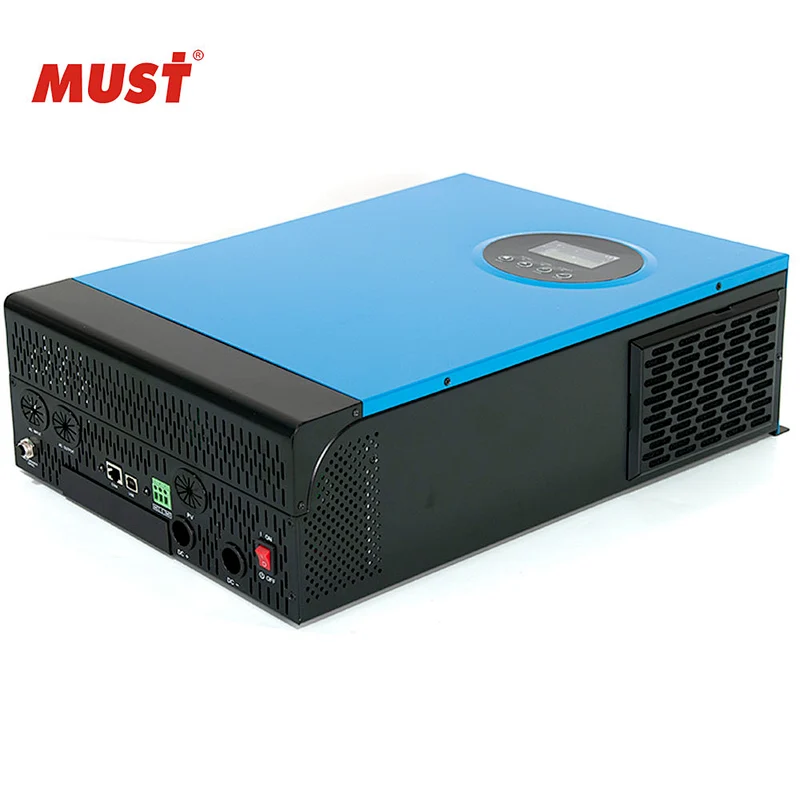

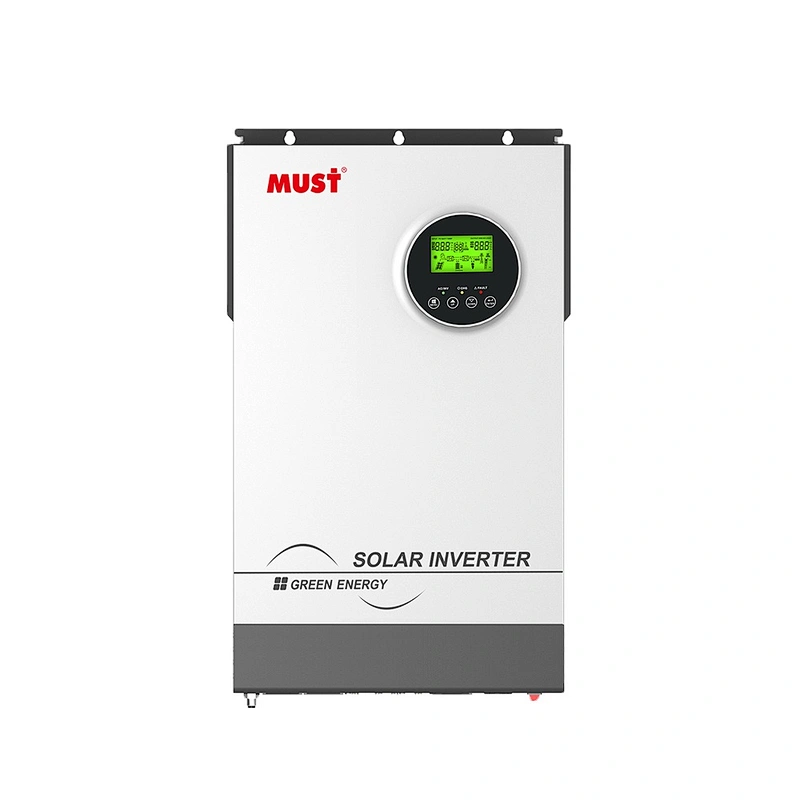

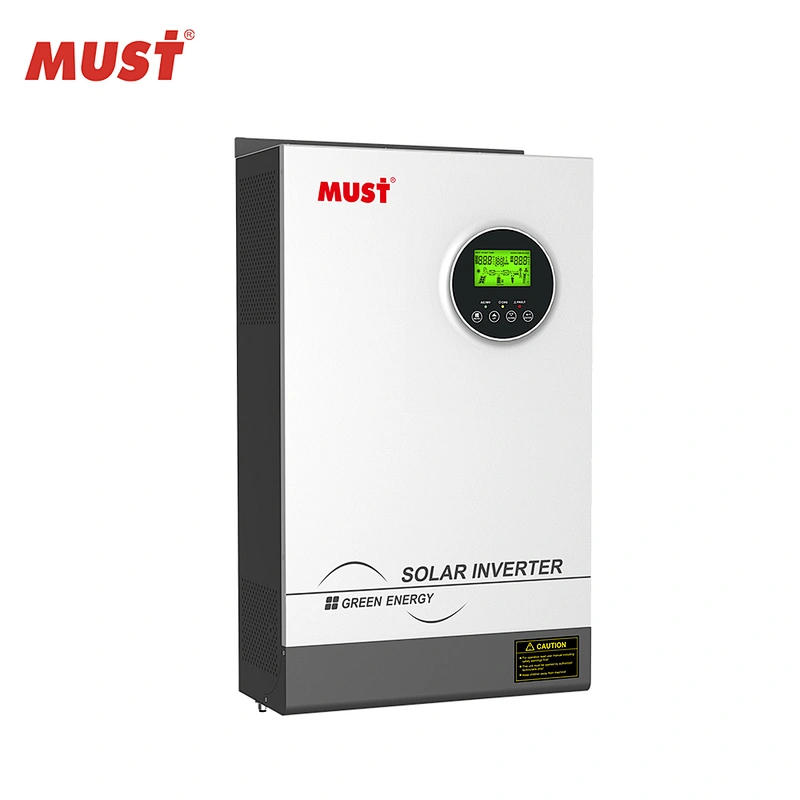

MUST PH1800 Pro Series 5kv Solar Inverter 3000w 5000w 24v 48v 220v Hybrid Inverter for Solar System
PH1800 PRO is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support in portable size. PH1800 PRO Series can run without battery. The Maximum PV array open circuit voltage can reach 450V and MPP voltage is 150~450V, which Can help customers make full use of solar energy.
Sales engineer: Angel Lee
Phone number/Wechat NO./ WhatsApp: +86 13823339627
Skype: mustupsl
| Competitive Advantage |
- Pure sine wave output
- Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc).
- Built-in MPPT 80A solar charge controller
- MAX PV Array Open Circuit Voltage: 450V
- Can provide the power to the load without battery

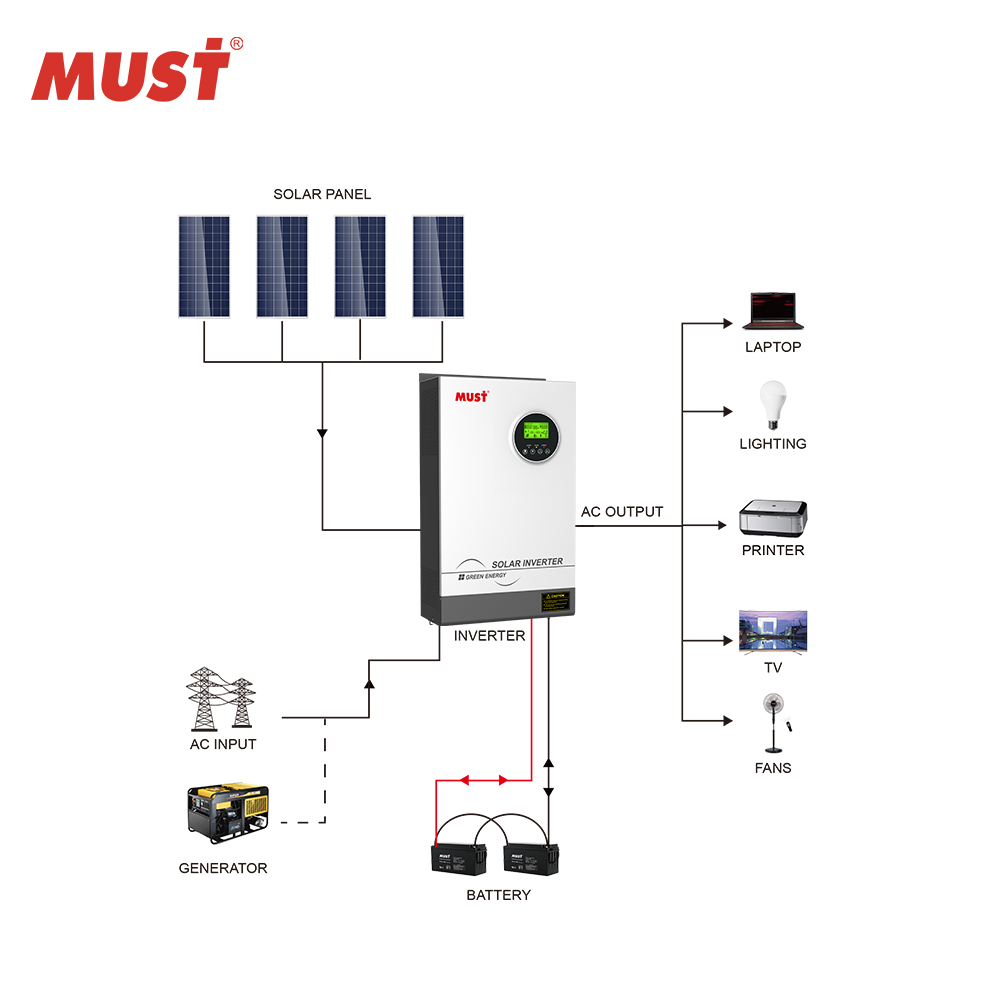

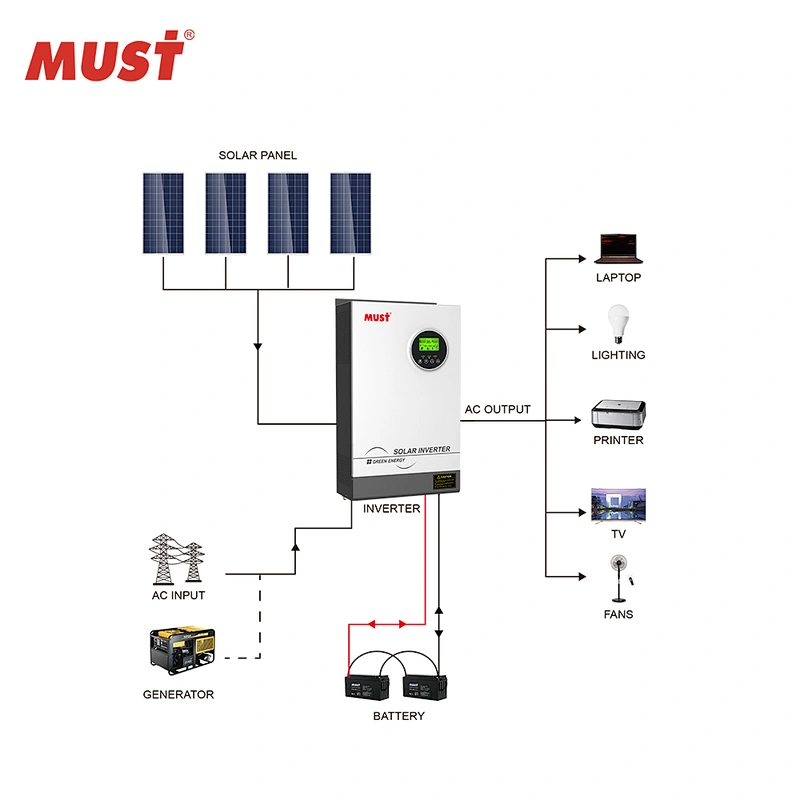

- Combining solar system, AC utility, and battery power source to supply continuous power
- Overload, short circuit and Deep discharge protection
- Cold start function
- Support USB, RS485 monitoring function with free CD
- WIFI remote monitoring (optional)
- Compatible to generator
- Can Run Without Battery
Specifications |
| Model | PH18-3024 PRO | PH18-5248 PRO |
|---|---|---|
| Nominal Battery System Voltage | 24VDC | 48VDC |
| Inverter Output | ||
| Rated Power | 3000VA/3000W | 5200VA/5200W |
| Surge Power | 6KW | 10KW |
| Waveform | Pure sine wave | |
| AC Voltage Regulation (Batt.Mode) | 230VAC±5% (Setting) | |
| Inverter Efficiency (Peak) | 90%-93% | |
| Transfer Time | 10ms (For personal computers) 20ms (For home appllance) | |
| AC Input | ||
| Voltage | 230VAC±5% | |
| Selectable Voltage Range | 170~280VAC(For personal computer) 90~280VAC(For home appliances) 184~253VAC(VED4105) | |
| Frequency Range | 50Hz/60Hz (Auto sensing) | |
| Battery | ||
| Normal Voltage | 24VDC | 48VDC |
| Floating Charge Voltage | 27.4VDC | 54.8VDC |
| Overcharge Protection | 30VDC | 60VDC |
| Solar Charger & AC Charger | ||
| Maximum PV Array Open Circuit Voltage | 450VDC | |
| Maximum PV Array Power | 5000W | |
| PV Array MPPT Voltage Range | 150-450VDC | |
| Maximum Solar Charge Current | 80Amp | |
| Maximum AC Charge Current | 60Amp | |
| Maximum Charge Current | 140Amp | |
| Mechanical Specifications | ||
| Machine Dimensions (W*H*D)mm | 289*414*124.5 | 330*488*119 |
| Package Dimensions (W*H*D)mm | 488*393*251 | 396*638*241 |
| Net Weight (kg) | 8 | 14 |
| Gross Weight (kg) | 9.5 | 16.4 |
| Other | ||
| Humidity | 5% to 95% Relative humidity (Non-condensing) | |
| Operating Temperature | -10℃ ~50℃ | |
| Storage Temperature | -15℃ ~60℃ | |

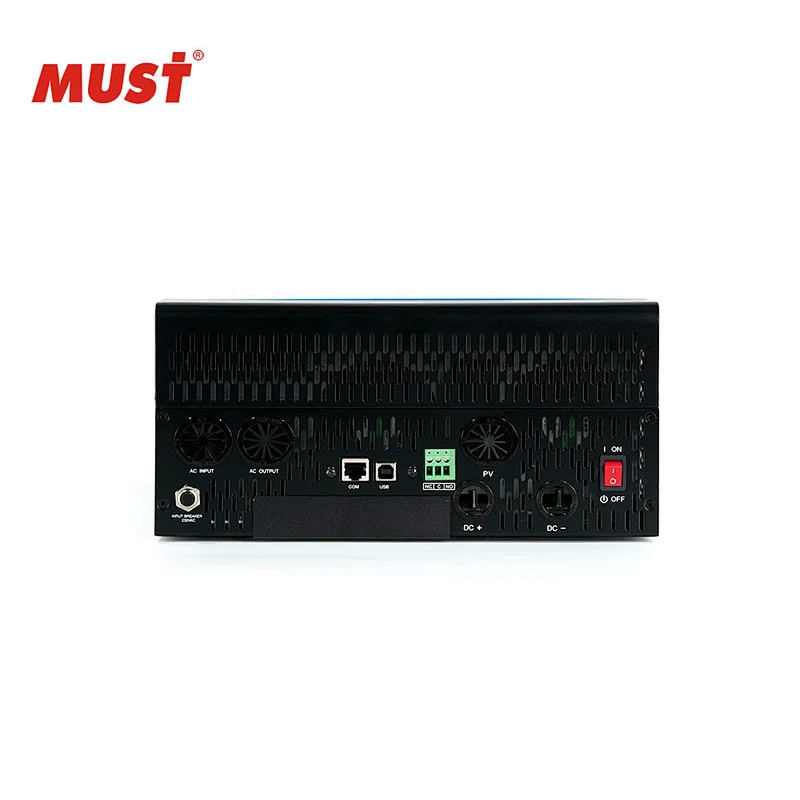

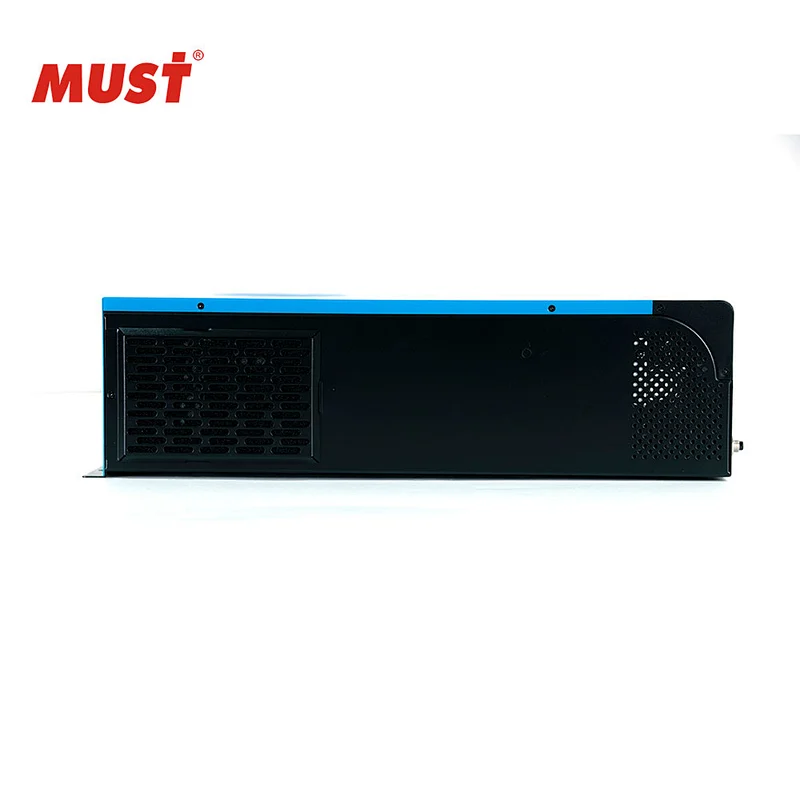

| Product Pictures |

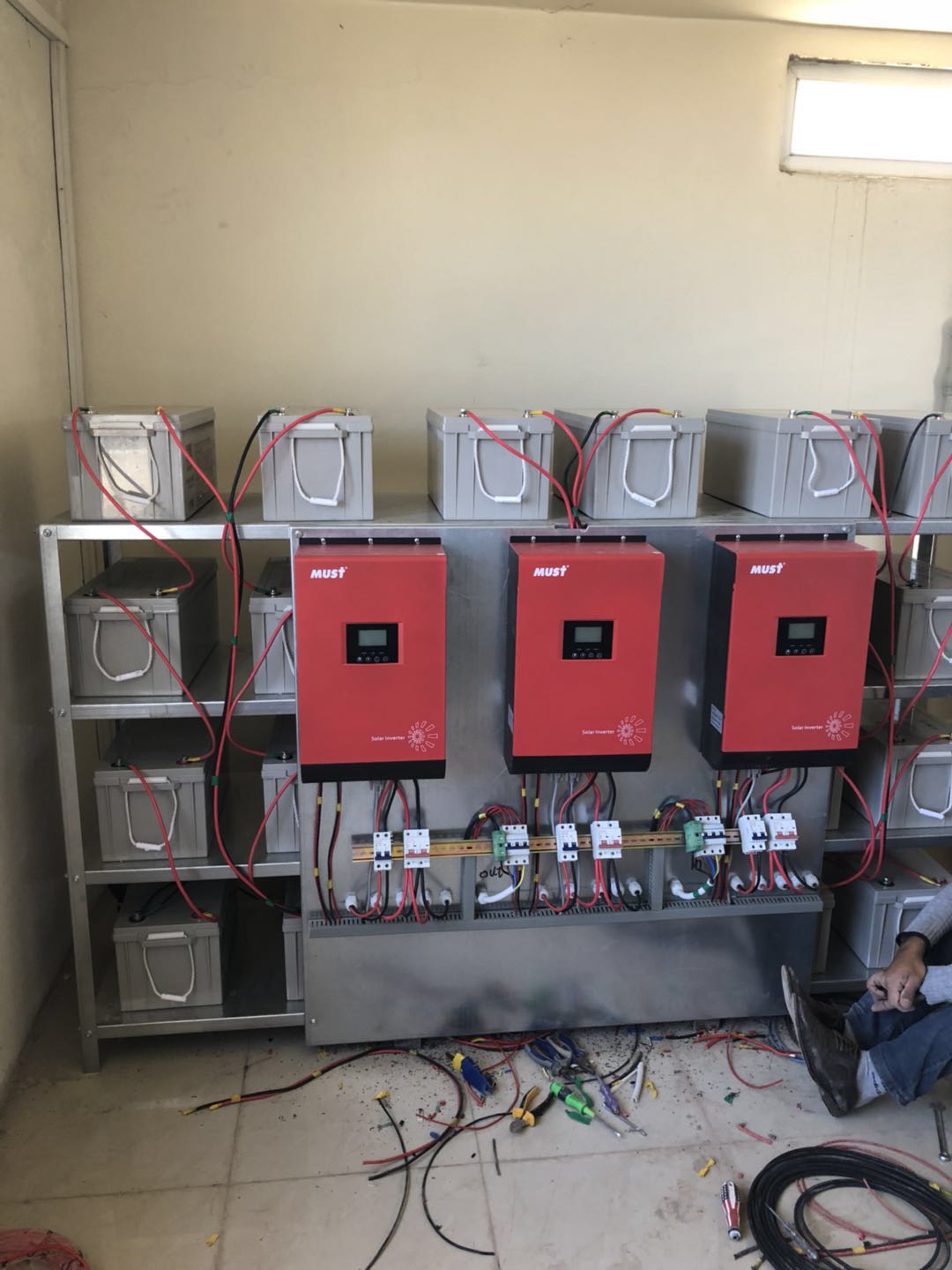

Stacking 3 Units for Parallel Operation to get up to a maximum of 15KW Solar System

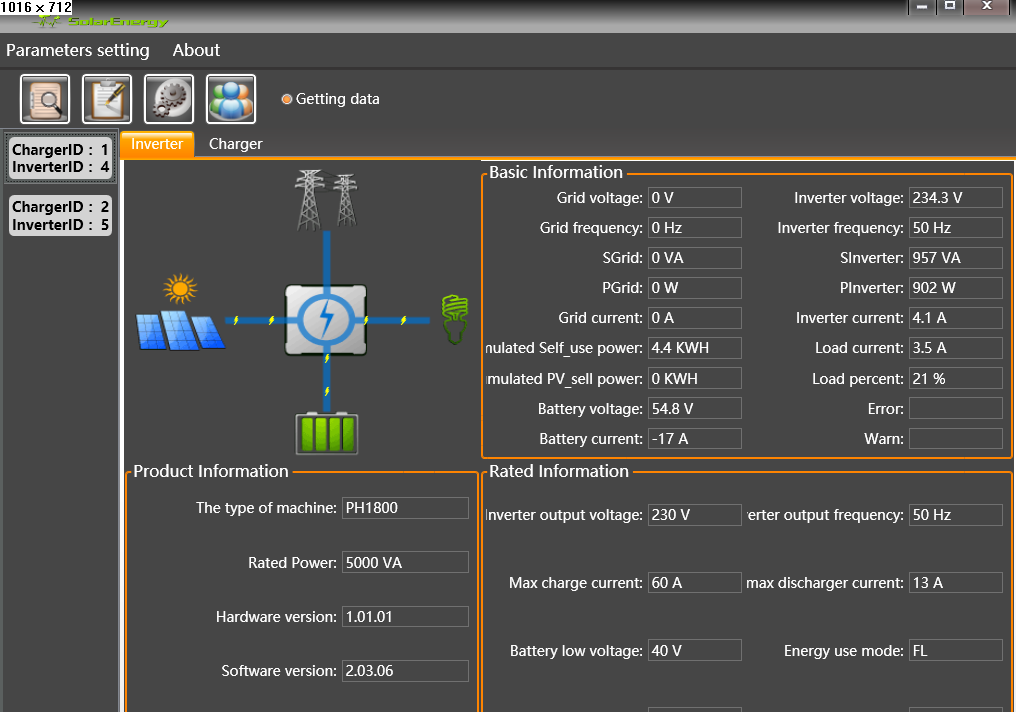

USB/ RS485 function: connect the inverter with computer, users can set parameters through computer, and see the working situation of the inevrter.

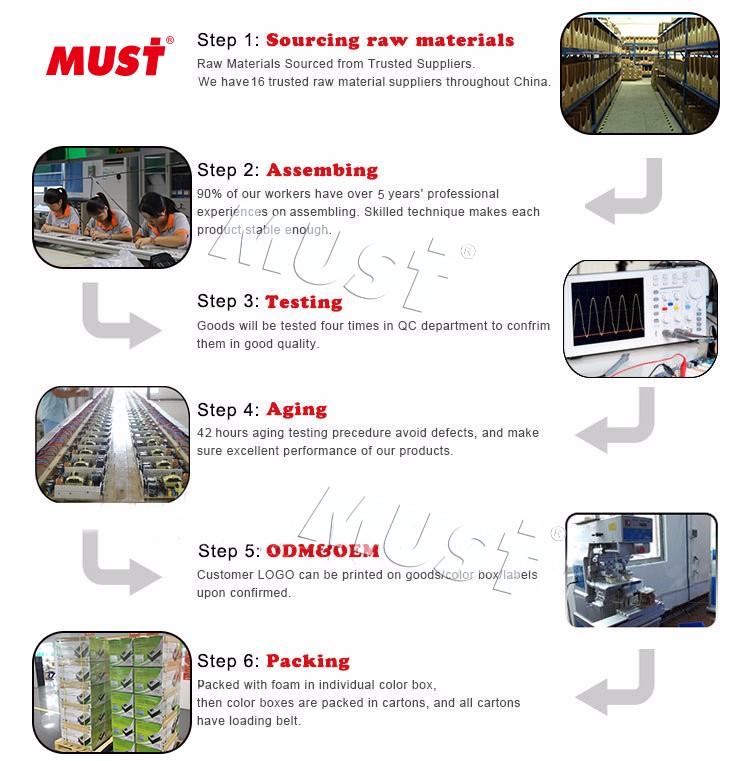

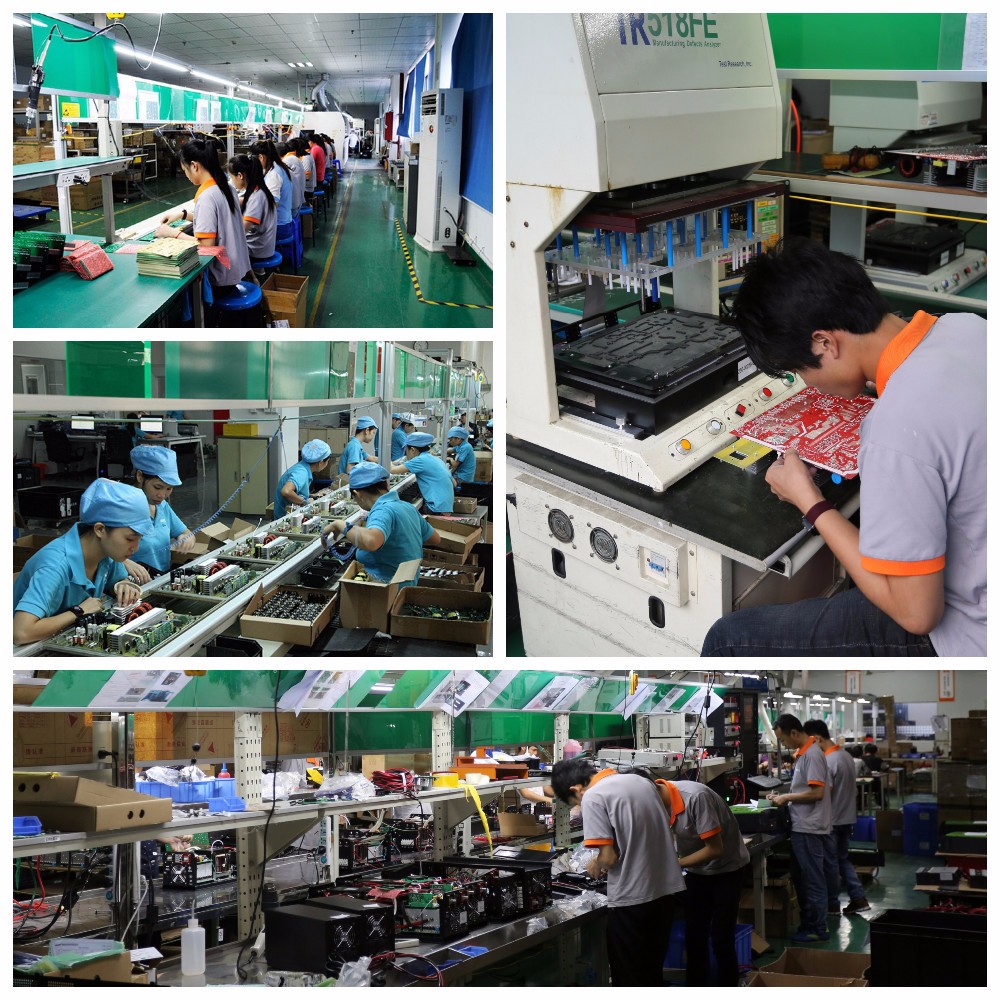

Production Process:
raw materials procurement---PCB assembly---PCB quality inspection---semi-finished assembly---quality inspection with computer---finished quality inspection with computer---aging at least 4hours---QA & QC inspection---packing---warehousing
| Must Company Information |
MUST Power Limited was established in 1998, with the headquarter in Hong Kong, which is a professional hi-tech enterprise specializing in research, developing and manufacturing of solar system.
Our company is a professional manufacturer of inverter, ups, solar charge controller with CE&ISO in China. We are one of the authorized suppliers for China Government.
MUST own an excellent R&D team formed by over 30 engineers, covering an area of 10,000 square meters in-house manufacturing facilities in Shenzhen City, Guangdong, China. With 230 outstanding employees, the production capacity per month reaches 30,000pcs to fulfill the increasing demand of our clients.
MUST keeps gaining the market share by offering quality product and service. Having cultivated prospective market worldwide, most of our clients are from Europe, Africa, Asia and America.
| 2018 Exhibition Information |
| Certification |
Q1: How to choose a right inverter?
A1:Tell us your demand, then our sales will recommend a suitable inverter to you.
Q2: What's the different between inverter and solar inverter?
A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.
Q3: How about the delivery time?
A3: 7 days for sample; 25 days for bulk order.
Q4: What is the warranty of inverter?
A4: One year warranty on Must-Solar product.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
