- Place of Origin:Guangdong, China
- Brand Name:MUST/OEM

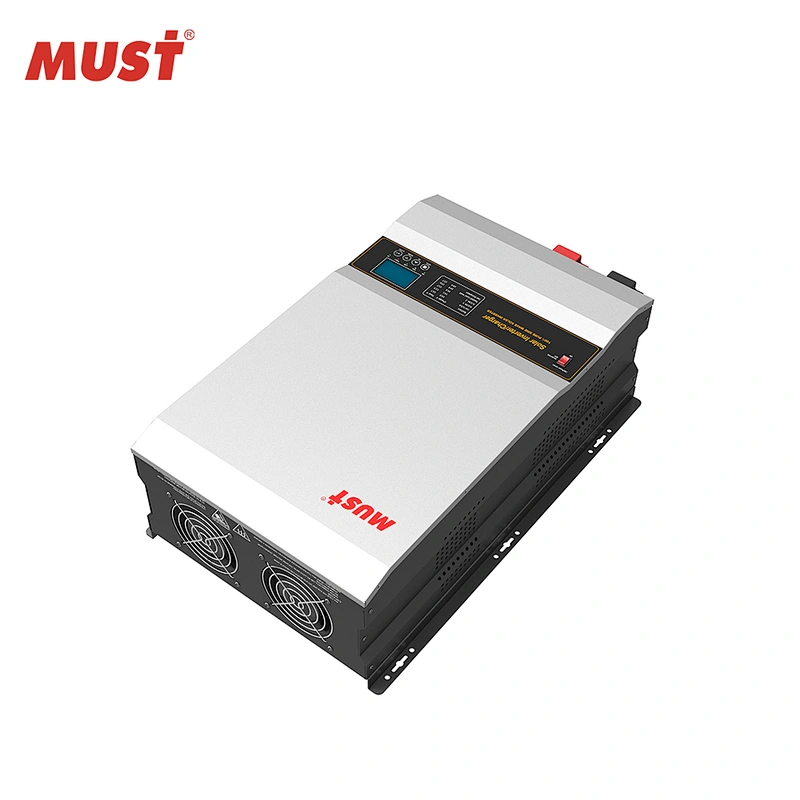

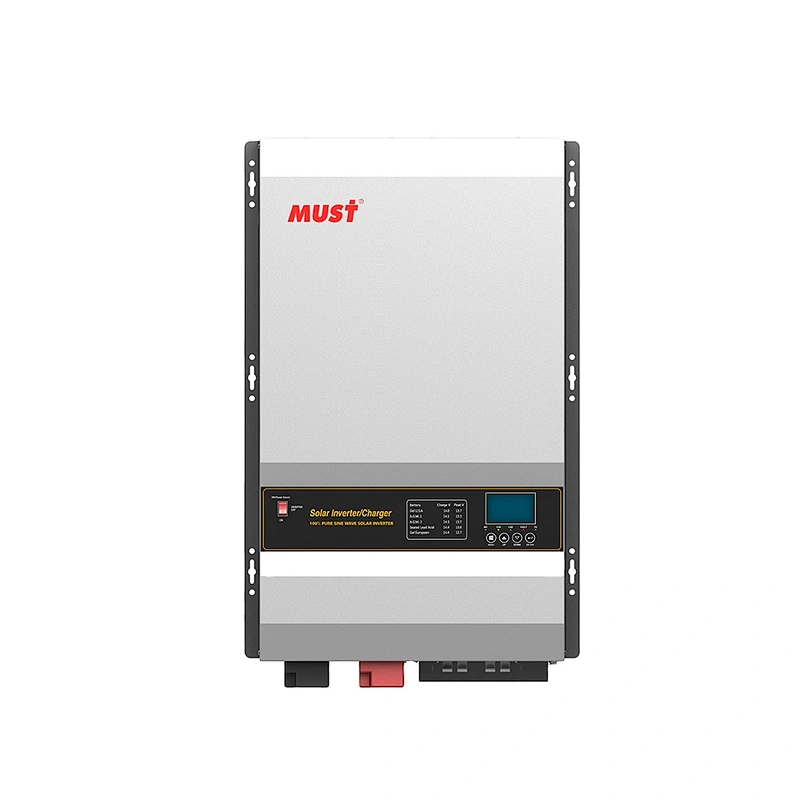

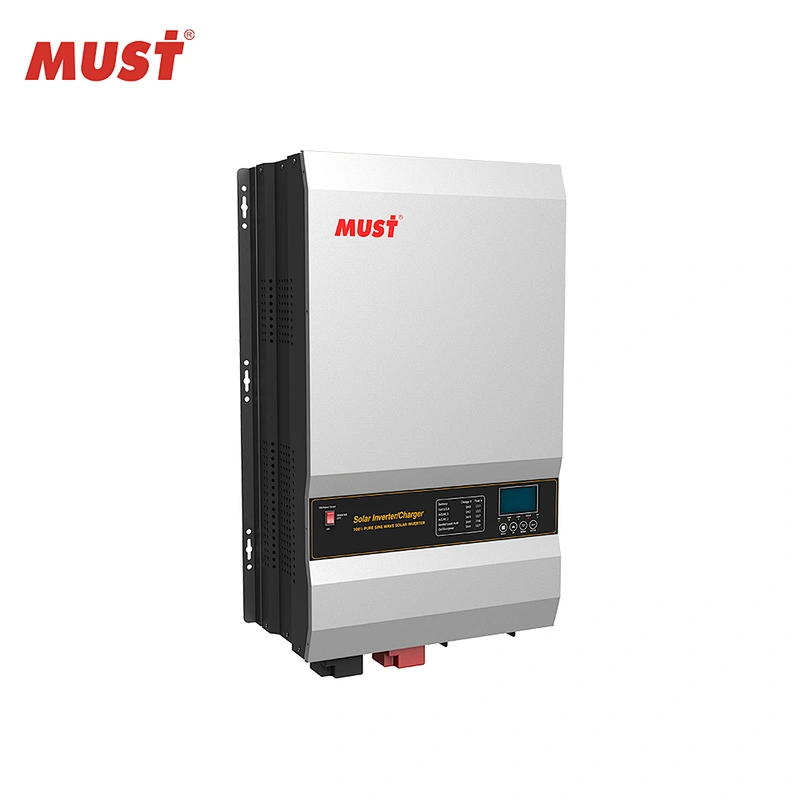

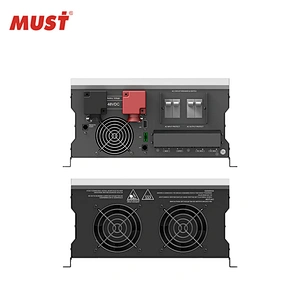

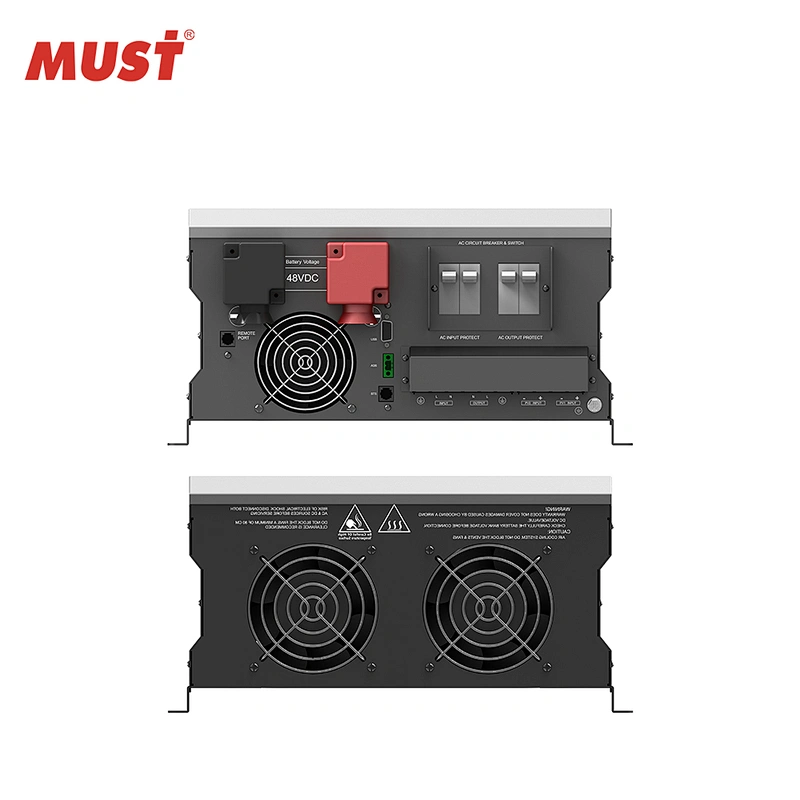

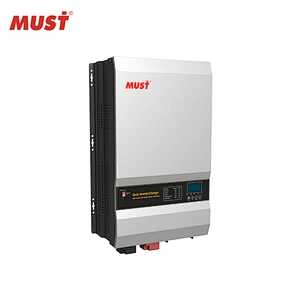

- Model Number:PV3500 PRO series
- Type:DC/AC Inverters
- Output Type:Single
- Output Current:4A to 26A
- Output Frequency:50Hz/60Hz
- Size:620*385*215mm/670*410*215mm
- Weight:36-77kg
- Certificate:CE ISO9001
- Output waveform:Pure Sine Wave Output
- Application:Home Appliance
- input requency:40-80hz
- output:50/60hz auto
- input range:96-132vac
- output voltage:110vac/120vac
- support generator:yes auto work
- BTS:available
- RS232:available
- remote control:option

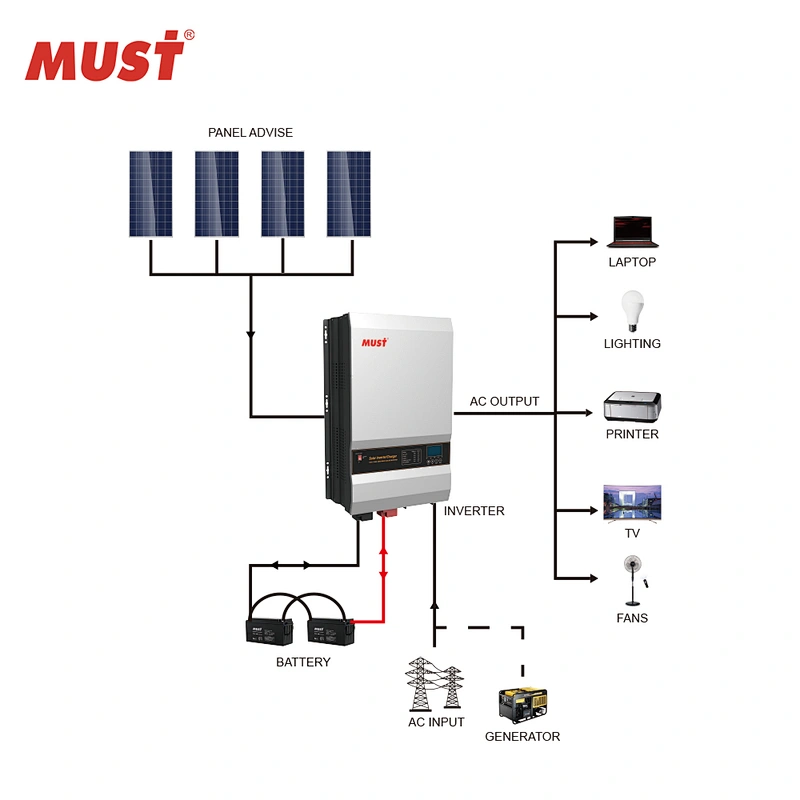

This is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offeruninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessiblebutton operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on differentapplications.

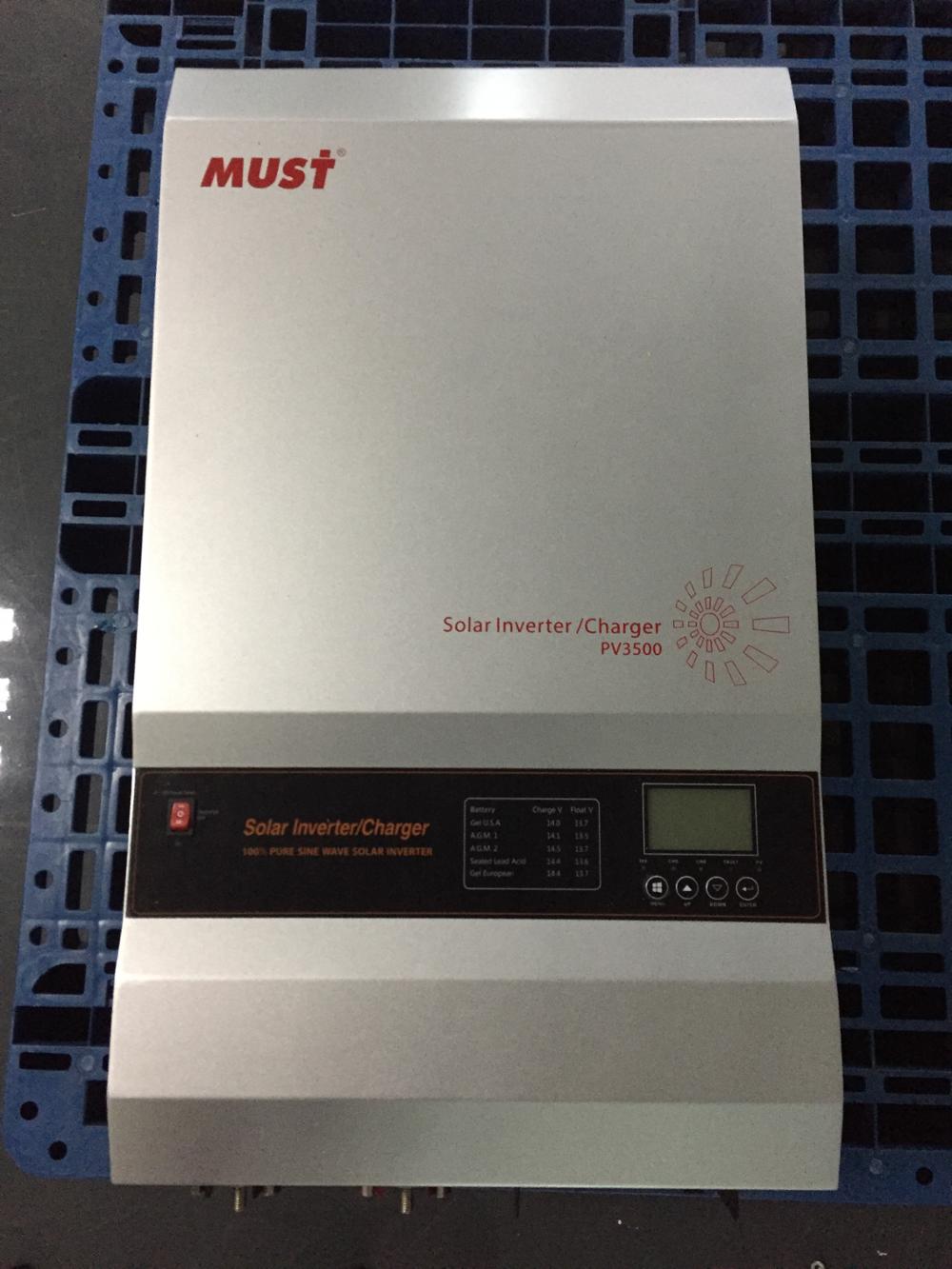

PV3500 series low frequency off grid solar inverter Features
1.12/24/48vdc input optional
2.Powerful charge rate up to 100amp
3.Pure sine wave inverter with inbuilt pure copper transformer
4.MPPT solar charge controller 40A/45A/60A
5.MPPT efficiecny max 98%
6.Power inverter with LCD +LED status display
7.CE certification available
8.50hz/60hz automatic sensing
9.Rs232 with free CD
10.Battery priority function
11.Automatically send single to start generator
12.DC start &automatic self -diagnostic function
13.High efficiency Design &power saving mode to conserve engery
14.Power range 5KVA-15KVA

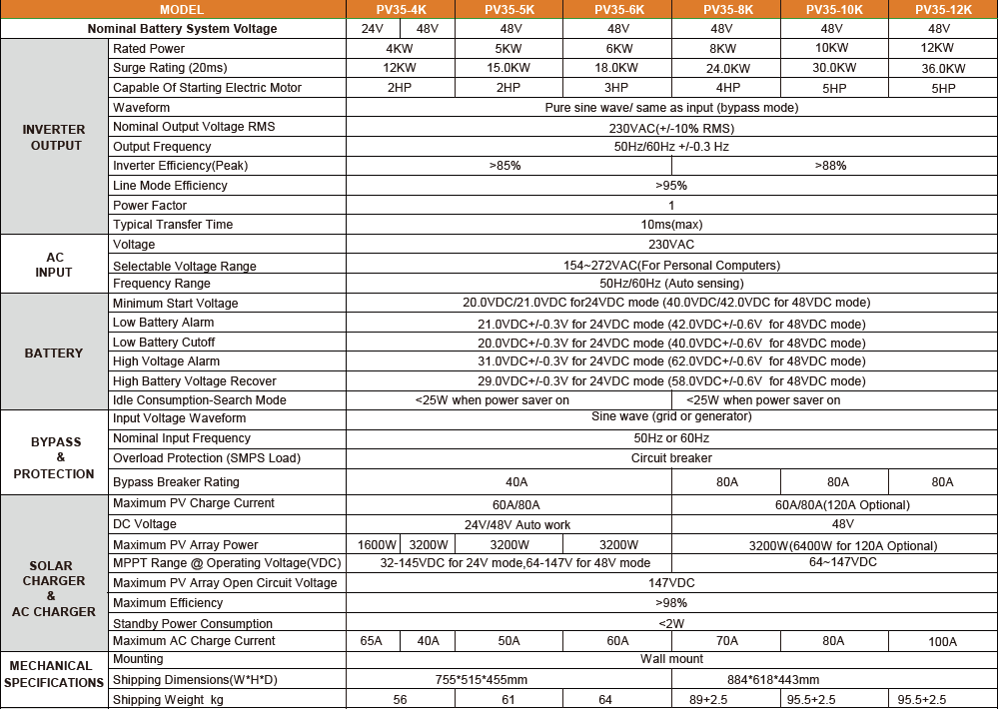

| Technical Specification |
1.Package: Carton Box for packaging, or Wooden Box advised for Samples to protect in transportations. Package designed by Clients is welcomed.
2.Shipping: DHL,FEDEX,UPS,EMS,AirWay and By Sea.
3.Payment: T/T( telegraphic transfer (T/T) and Western Union
4.Welcome to your Sample Order to test First.
About us
Shenzhen Must solar limited established since 1998,with professional manufacture history

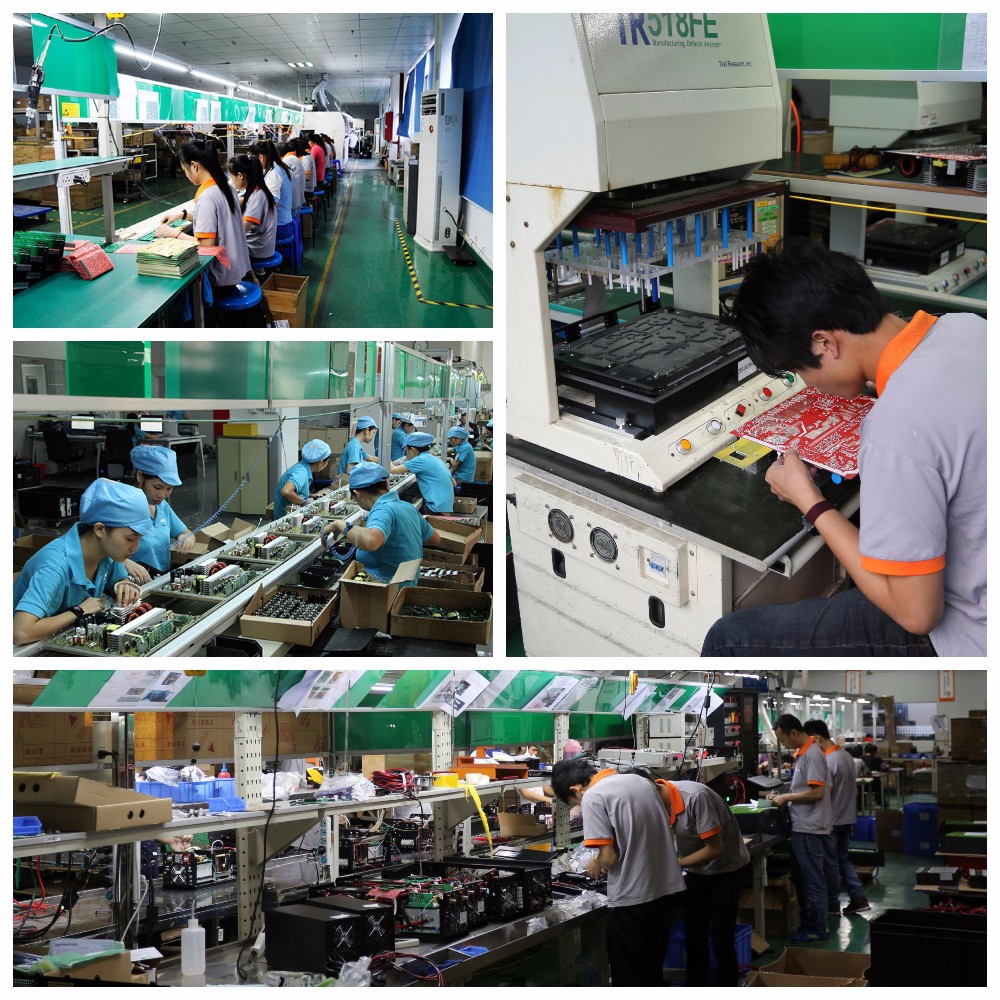

Equipment & technology
Our factory with full parts factory line,PCB board,assemble line,IQC testing,Aging testing and others.
Certification
*We help you save energy and cut down on your electricity bill
*We help you generate solar energy — the most clean, green and cost effective solution
*We offer innovative and cost-effective power backup solutions
*We protect your home and your business with uninterrupted
*We assure you peace of mind with high quality and innovative products
*We provide reliable support and services round the clock
Our comprehensive product lines including: solar inverter, home inverter, MPPT/PWM solar charge controller, mono/poly solar panel and AGM/Deep Cycle/Gel battery. Most products are certified by CE, SONCAP and ISO9001. We are one of the authorized suppliers for China Government.
MUST own an excellent R&D team formed by over 30 engineers, covering an area of 10,000 square meters in-house manufacturing facilities in Shenzhen City, Guangdong, China. With 230 outstanding employees, the production capacity per month reaches 30,000pcs to fulfill the increasing demand of our clients.
MUST keeps gaining the market share by offering quality product and service. Having cultivated prospective market worldwide, most of our clients are from Europe, Africa, Asia and America.
MUST is your best partner and your best choice!
