- Place of Origin:Guangdong, China
- Brand Name:MUST/OEM
- Model Number:PV1800 VPM series
- Type:DC/AC Inverters
- Output Type:Single
- Output Current:21.7A
- Output Frequency:50/60Hz
- Size:638*548*241*300mm
- Weight:16kg
- Certificate:CE etc.
- Max charging current:80A
- DC voltage:24V/48V
- MPPT voltage range:64V-130VDC
- Output wave:Pure sine wave
- AC to AC efficiency:>93%
- DC to DC:>95%
- Rated power:3000W-5000W
- Max.PV array Open Circuit Voltage:145V DC
- attery protection:Overcharge protection
- MPPT charge controller:built-in 60/80A

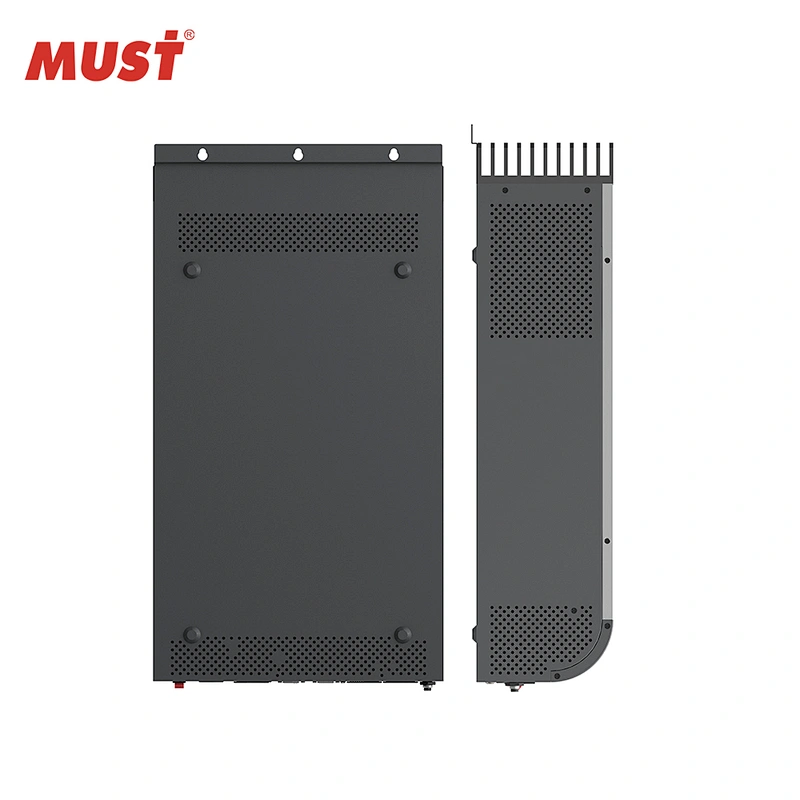

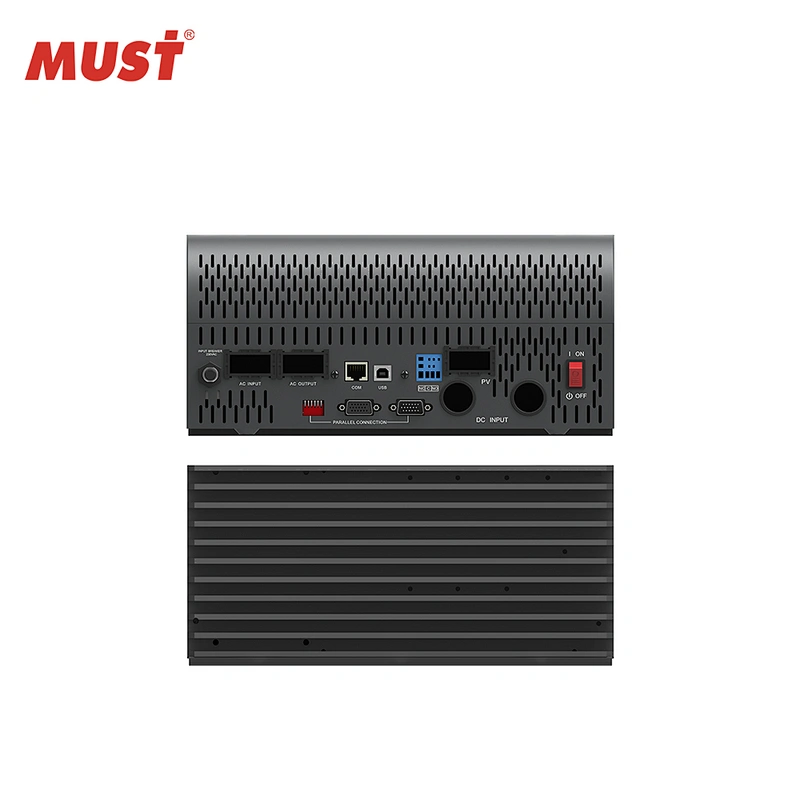

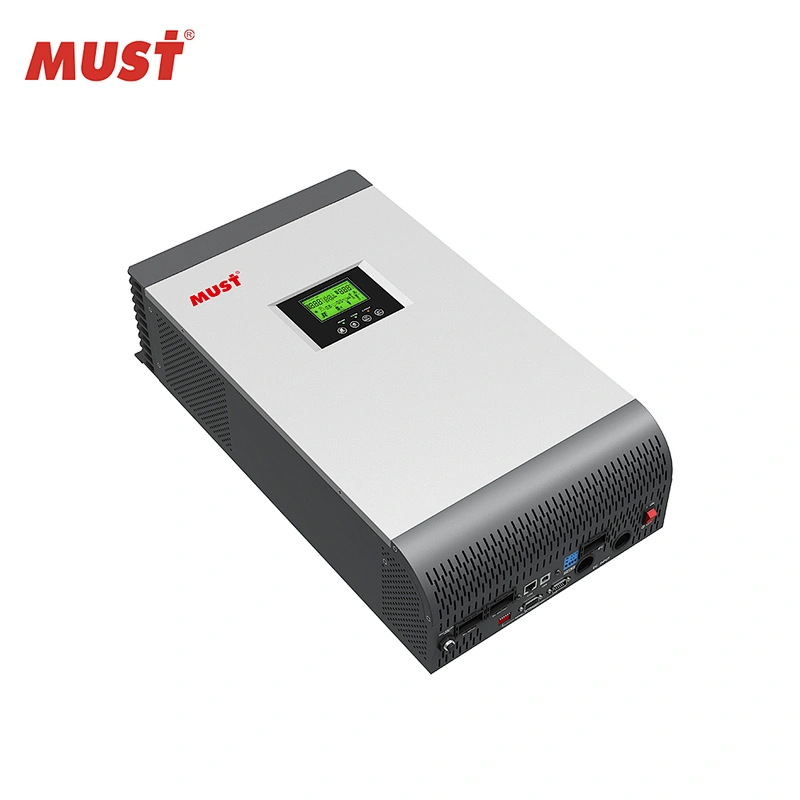

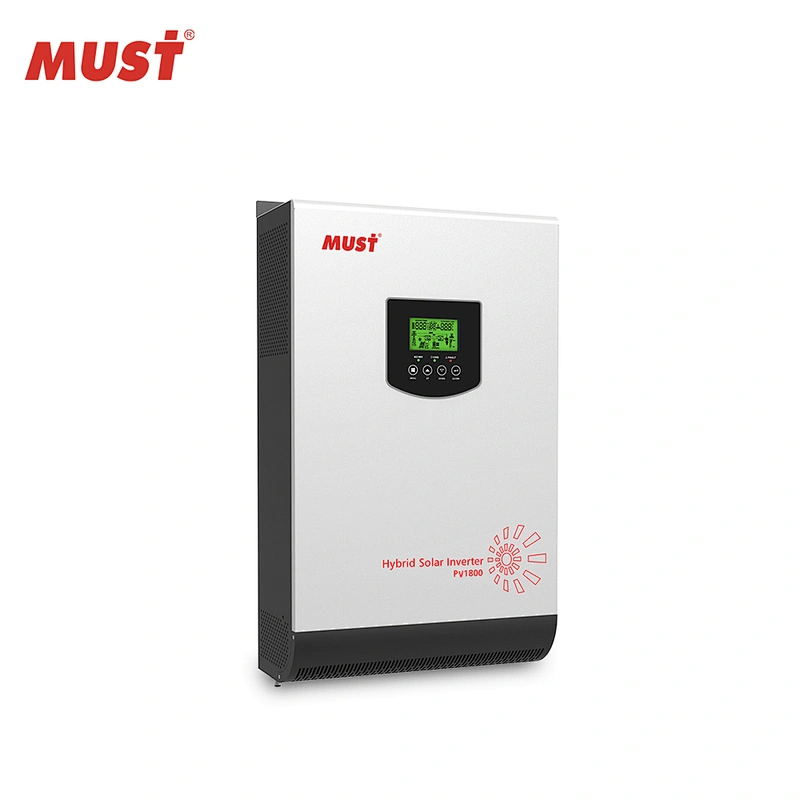

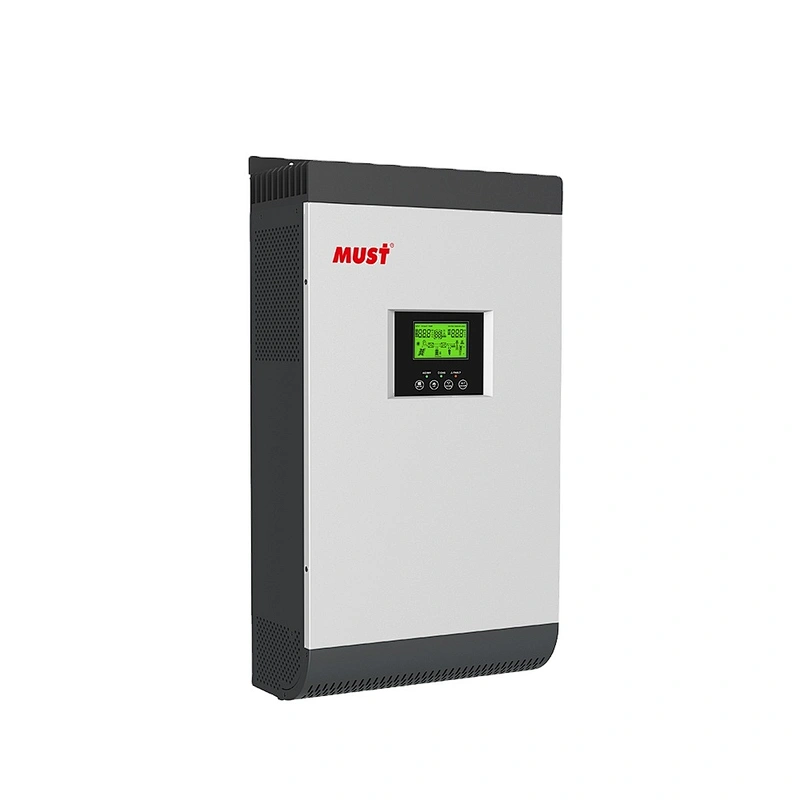

< MUST>PHV1800 VPM series high frequency pure sine wave 1-5KW off grid solar inverter
This is a multi-function inverter/charger, combining functions of inverter, MPPT50A/80A solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

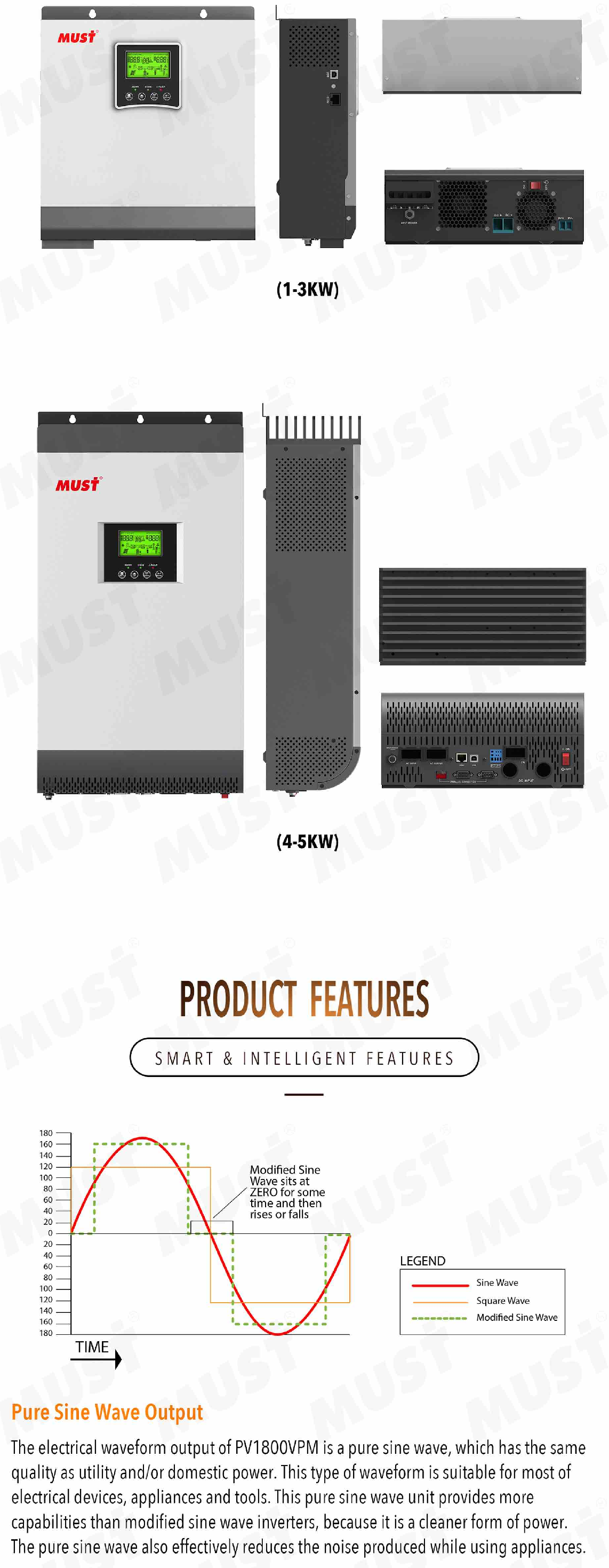

PV1800 VPM series off grid solar inverter Features:
- Rated power 1KW to 5KW
- Pure sine wave output
- Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc).
- Bult in MPPT50A/80A solar charge controller

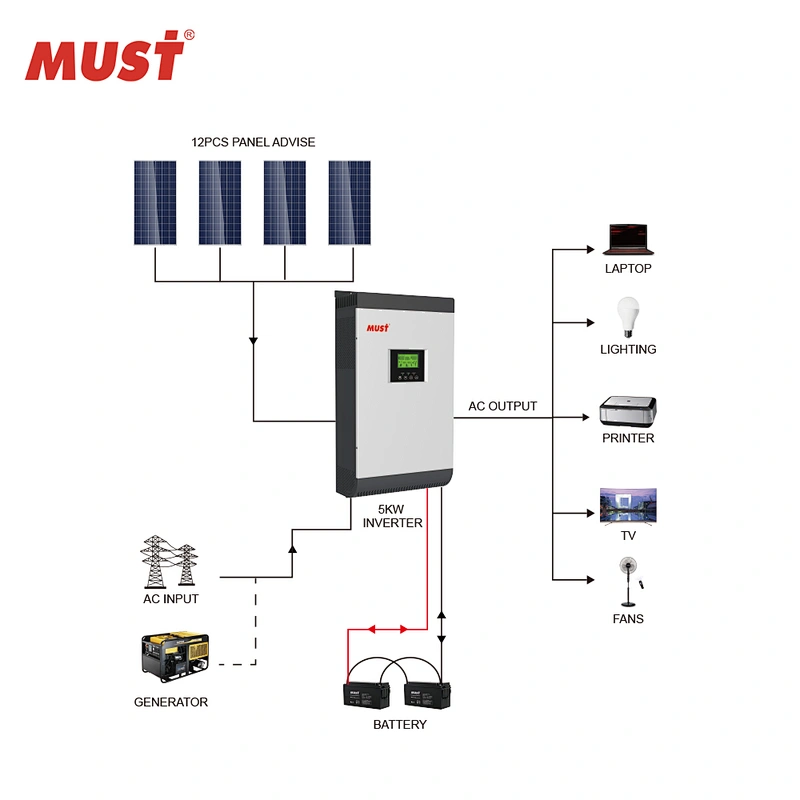

- Combining solar system, AC utility, and battery power source to supply continuous power
- Overload, short circuit and Deep discharge protection
- Cold start function

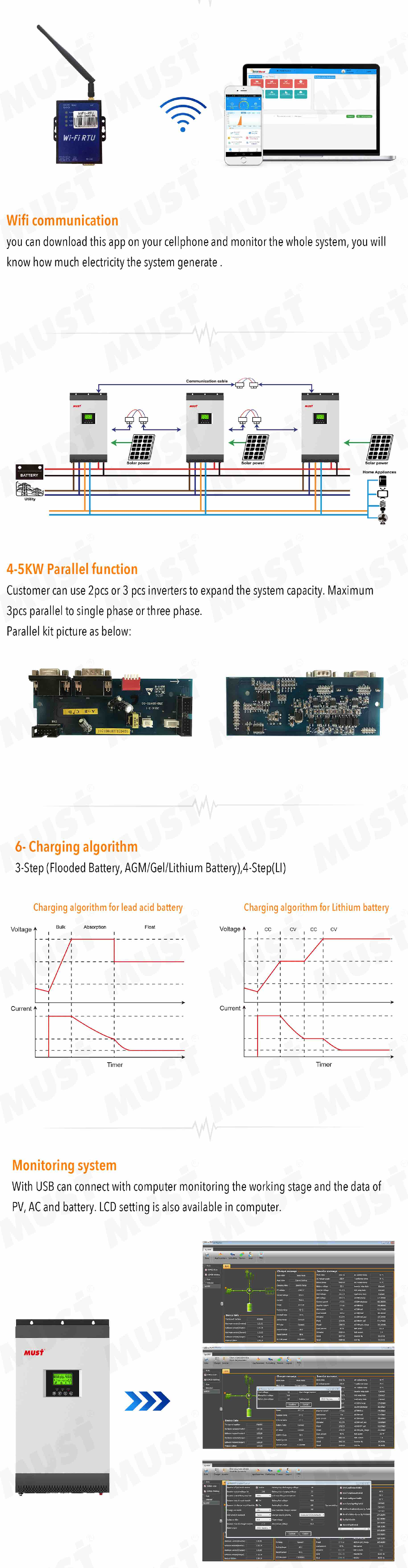

- Support USB, RS485 monitoring function with free CD
- WIFI remote monitoring (optional)
- Compatible to generator
- 3KW-5KW support parallel function(optional)
Technical Specification:
| MODEL | PV18-1012 VPM | PV18-2024 VPM | PV18-3024 VPM | PV18-3048 VPM | PV18-4048 VPM | PV18-5048 VPM |
|---|---|---|---|---|---|---|
| Default Battery System Voltage | 12VDC | 24VDC | 48VDC | |||
| INVERTER OUTPUT | ||||||
| Rated Power | 1000VA/1000W | 2000VA/2000W | 3000VA/3000W | 3000VA/3000W | 4000VA/4000W | 5000VA/5000W |
| Surge Power | 2000VA | 4000VA | 6000VA | 6000VA | 8000VA | 10000VA |
| Waveform | Pure sine wave | |||||
| AC Voltage Regulation (Batt.Mode) | 220VAC ~ 240VAC (Setiing) | |||||
| Inverter Efficiency (Peak) | 90%~93% | |||||
| Transfer Time | 10ms(For Personal Computers)20ms(For Home Appliance) | |||||
| AC INPUT | ||||||
| Voltage | 230VAC | |||||
| Selectable Voltage Range | 170~280VAC(For Personal Computers),90~280VAC(For Home Appliances),184~253VAC(VDE) | |||||
| Frequency Range | 50Hz/60Hz (Auto sensing) | |||||
| BATTERY | ||||||
| Normal voltage | 12VDC | 24VDC | 48VDC | |||
| Floating Charge Voltage | 13.7VDC | 27.4VDC | 54.8VDC | |||
| Overcharge Protection | 150VDC | 30VDC | 60VDC | |||
| SOLAR CHARGER&AC CHARGER | ||||||
| Maximum PV Array Open Circuit Voltage | 60VDC | 100VDC | 145VDC | |||
| PV Array MPPT Voltage Range | 15~60VDC | 30~80VDC | 64~130VDC | |||
| Standby Power Consumption | 2W | |||||
| Maximum PV Array Power | 625W | 1250W | 4000W | |||
| Maximum Solar Charge Current | 50A | 80A | ||||
| Maximum Efficiency | 98% | |||||
| Maximum AC Charge Current | 10A or 20A | 20A or 30A | 60A | |||
| Maximum Charge Current | 70A | 80A | 140A | |||
| MECHANICAL SPECIFICATIONS | ||||||

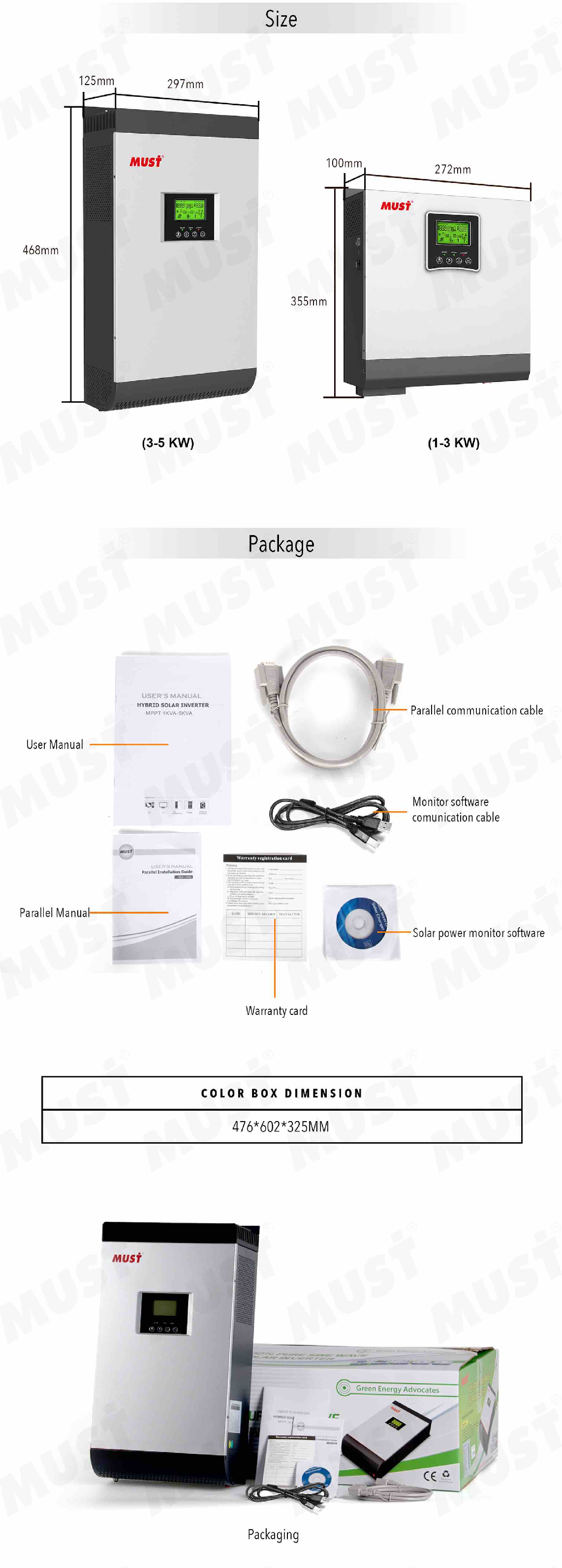

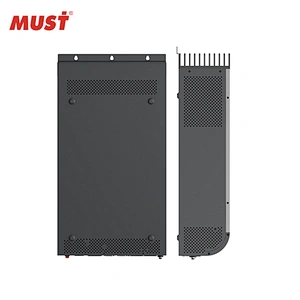

| Machine Dimensions (W*H*D)(mm) | 272*355*100 | 297.5*468*125 | ||||
| Package Dimensions (W*H*D)(mm) | 485*393*251 | 638*395*241 | ||||
| Net Weight(kg) | 7.4 | 14 | ||||
| Gross Weight(kg) | 9.5 | 16.4 | ||||
| OTHER | ||||||
| Humidity | 5% to 95% Relative Humidity (Non-condensing) | |||||
| Operating Temperature | 0°C -55°C | |||||
| Storage Temperature | -15°C -60°C | |||||

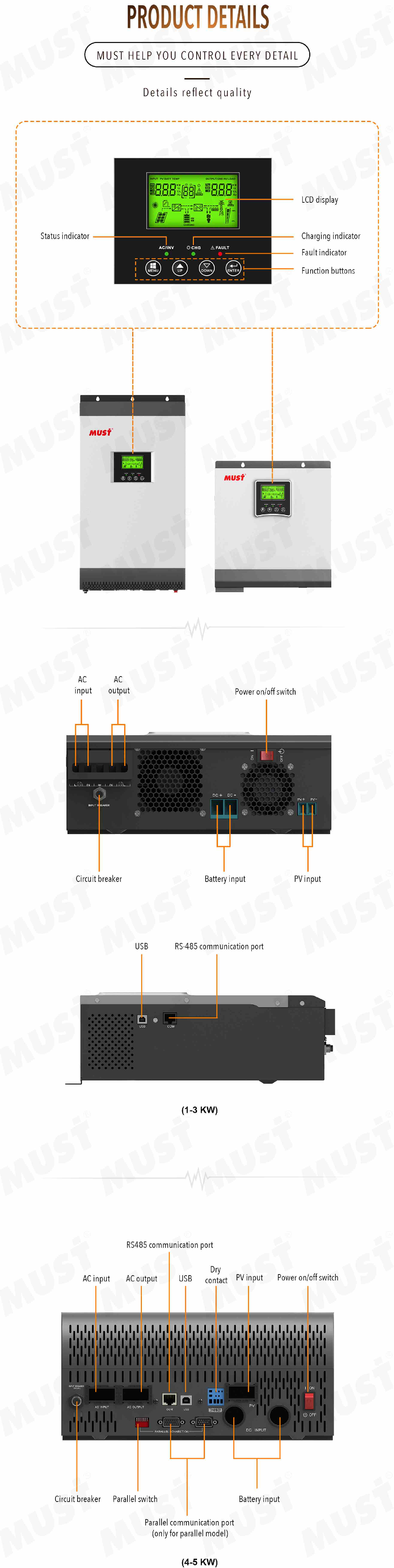

Detailed Description:

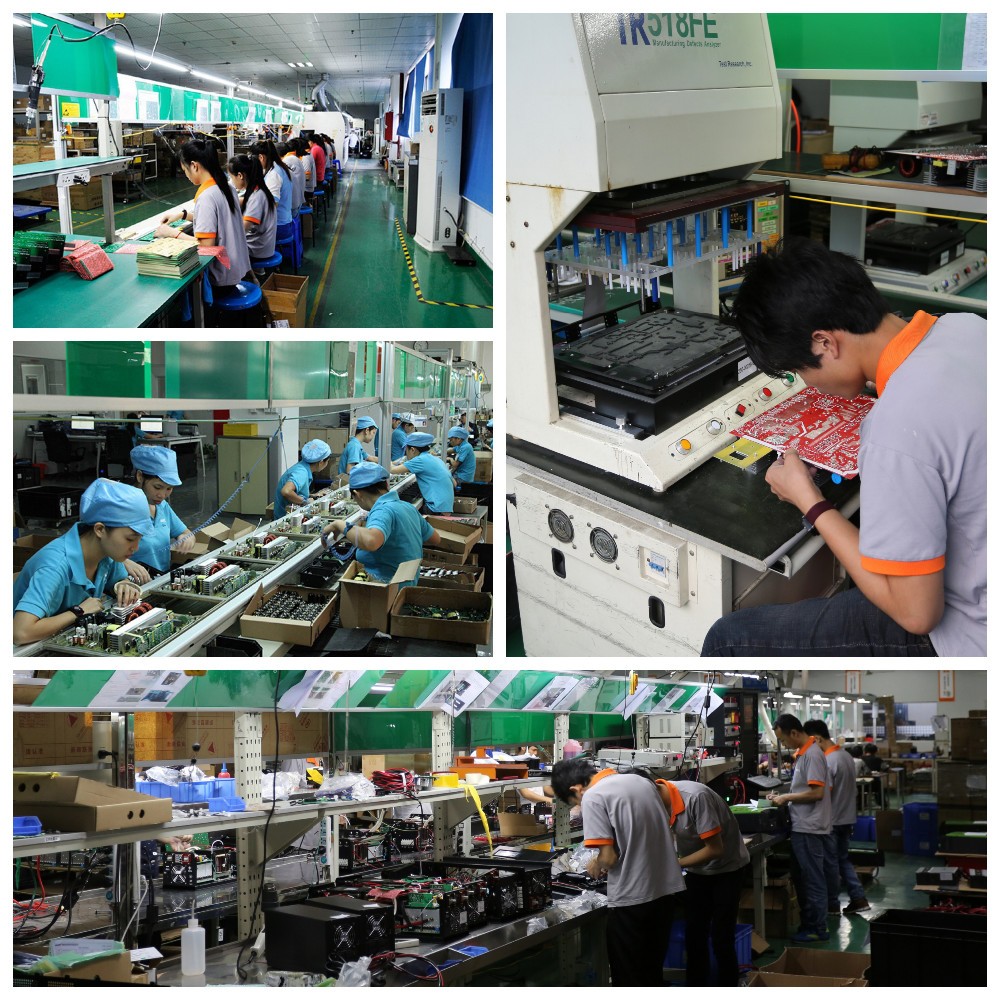

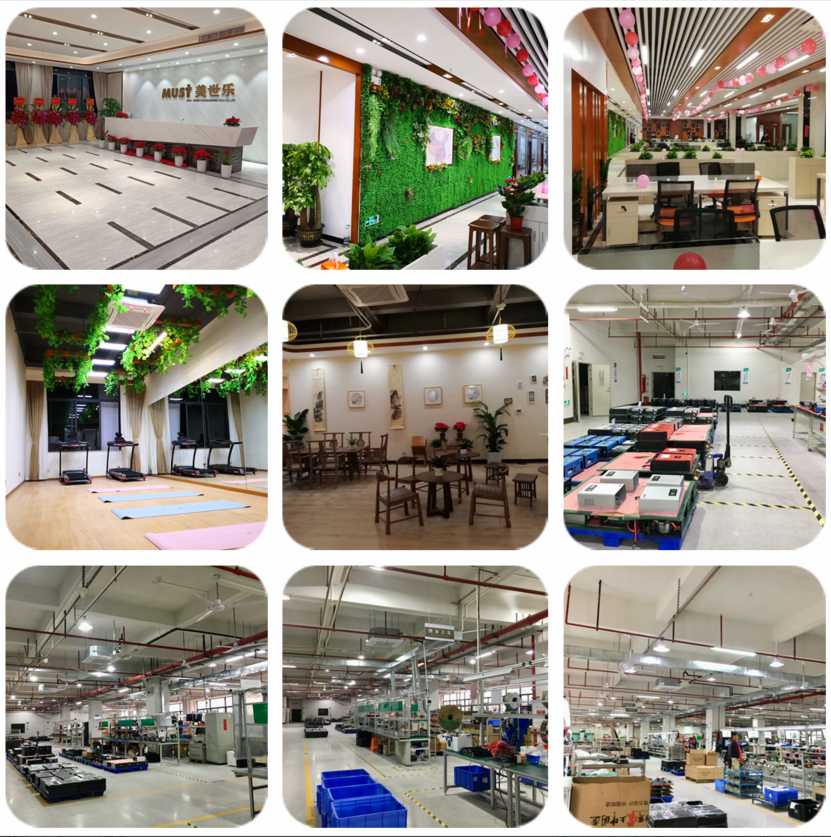

MUST Factory :
About MUST :
Must Power Limited devotes itself to power field since 1998, and has its own factory in 2008. Now it has about 300 regulor employees, including 40 engineers in R&D Department, 3 engineers in After-sales Service Center Department, 40 internation sales. MUST products are slod in 98 countries all over the world till now, and the revenue growth is from 2.86 milion US Dollars in 1998 to 130 milion US Dollars in 2017.
we have rich experience in handiling orders for heavy buyers with professional process.
- Stable raw material purchasing
- Favorable orders follow-up management
- Laudable lead-time & shipment control
- Traceable quality evaluation
- Flexible payment terms
- Remarkable after-sale service
MUST certificates and patents: MUST got the National High-tech Enterprise in 2016, and Shenzhen High-tech Enterprise, the ISO9001, CE, SAA, CONCAP, etc. And also MUST has software and hardware patents.
